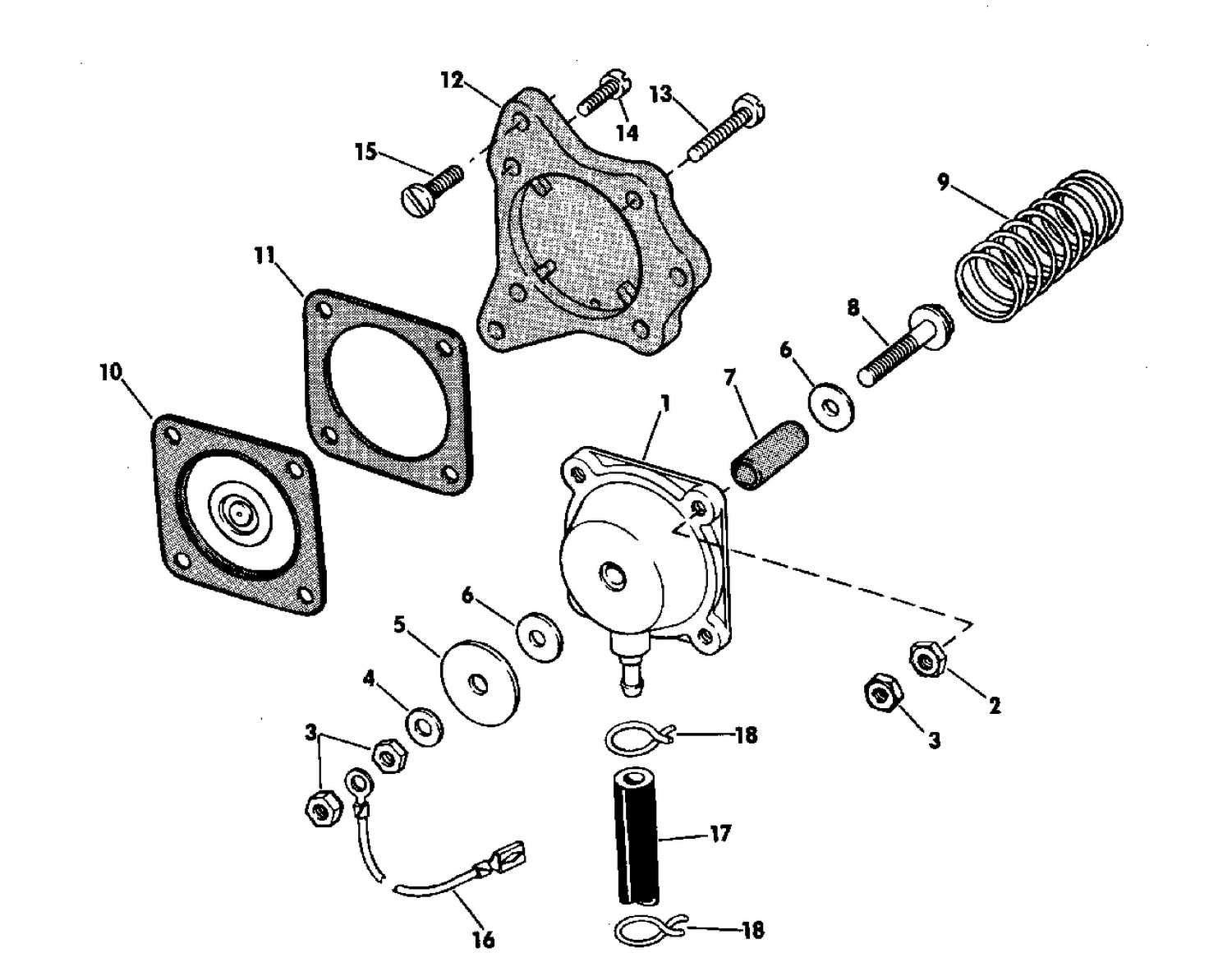

CUT-OUT SWITCH GROUP
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0376918 | BODY & NIPPLE, Cut-out |
| 2 | 0130450 | NUT |
| 3 | 0304854 | LOCK NUT |
| 5 | 0303723 | WASHER INSULATIN,Large |
| 6 | 0304183 | WASHER |
| 7 | 0303893 | TUBING |
| 8 | 0304853 | SCREW |
| 9 | 0310323 | DIAPHRAGM & PLATE |
| 10 | 0376881 | DIAPHRAGM & PLATE |
| 11 | 0305002 | GASKET |
| 12 | 0308185 | ADAPTER, Mounting |
| 13 | 0305879 | SCREW 1" LONG |
| 16 | 0379538 | LEAD |
| 17 | 0203909 | HOSE, Oil return This part replaces 0303111. |
| 0379494 | 0379494 | CUT OUT SWITCH ASSY |
