Home / BRP / Can-Am ATV / 2019 / 008 - ATV - International - Renegade 570-650-850-1000R Series / 004 - Renegade 1000R EFI - International - Non European Communities, 2019 0004FKC00 0005VKD00 / CRANKSHAFT & PISTON

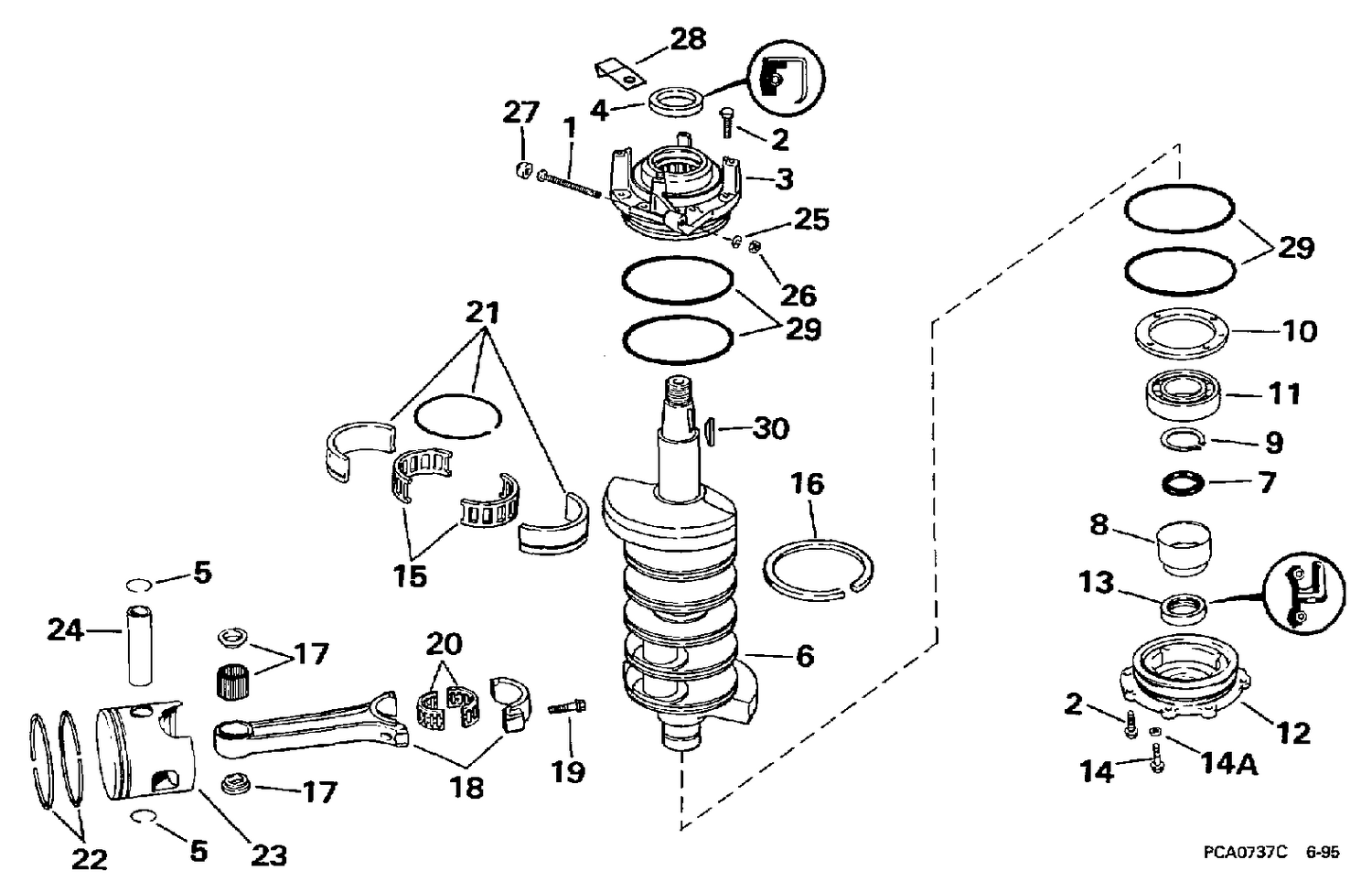

CRANKSHAFT & PISTON

CRANKSHAFT & PISTON

Parts (18)

RefPart NumberDescription
2 0344020 SCREW, Crankcase head
3 0393620 CRANKCASE HEAD & BRG. ASSY.
6 0434772 CRANKSHAFT ASSY.
7 0337087 O-Ring
9 0326047 Retaining Ring
12 5007695 CRANKCASE HEAD Assembly, Lower This part replaces 0434792.
15 5007190 BEARING Assembly, Center main This part replaces 0387041.
16 0326749 SEAL RING
17 0434844 BEARING, Wrist pin
18 5005208 ROD ASSY., Connecting This part replaces 0435355.
20 0396041 BEARING, Connecting rod
21 0352960 BEARING RACE, Center main This part replaces 0320499.
22 0436254 RING SET, Standard
23 5006684 Piston & Ring Kit This part replaces 0435575.
23 5006685 Piston & Ring Kit This part replaces 0435576.
23 5006696 Pstn&Rng Kit This part replaces 0437111.
23 5006697 Pstn&Rng Kit This part replaces 0437112.
27 0314416 BUMBER, Advance screw
