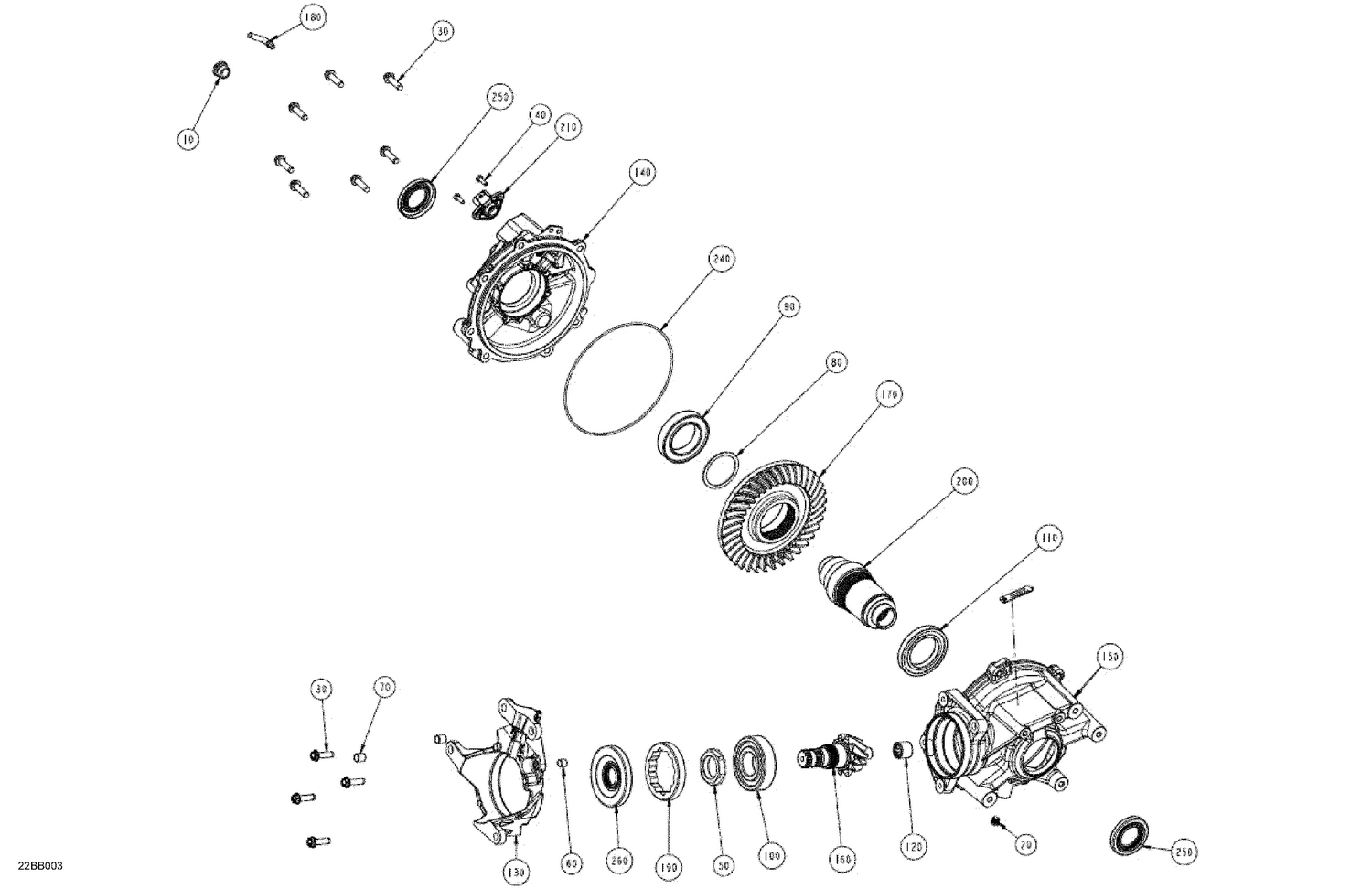

04- Drive - Final Drive Unit
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705501889 | Fill Level Plug |
| 20 | 715900563 | Fill Level Plug M10 |
| 30 | 705501886 | Bolt |
| 40 | 715900736 | Screw |
| 50 | 715900737 | Nut |
| 60 | 715900738 | Dowel Pin |
| 70 | 715900739 | Dowel Pin |
| 80 | 715900740 | Shim |
| 90 | 715900741 | Ball Bearing |
| 100 | 715900782 | Ball Bearing |
| 110 | 715900742 | Ball Bearing |
| 120 | 705501874 | Needle Bearing |
| 130 | 705503213 | Differential Support |
| 140 | 715900767 | Cover |
| 150 | 715900744 | Case |
| 160 | 715900746 | Pinion, 10T Spiral |
| 170 | 715900747 | Ring Gear 36T Spiral |
| 180 | 705401935 | Vent Valve |
| 190 | 705501882 | Nut |
| 200 | 715900748 | Hub |
| 210 | 420427563 | Cover |
| 240 | 715900749 | O-Ring |
| 250 | 715900531 | Oil Seal |
