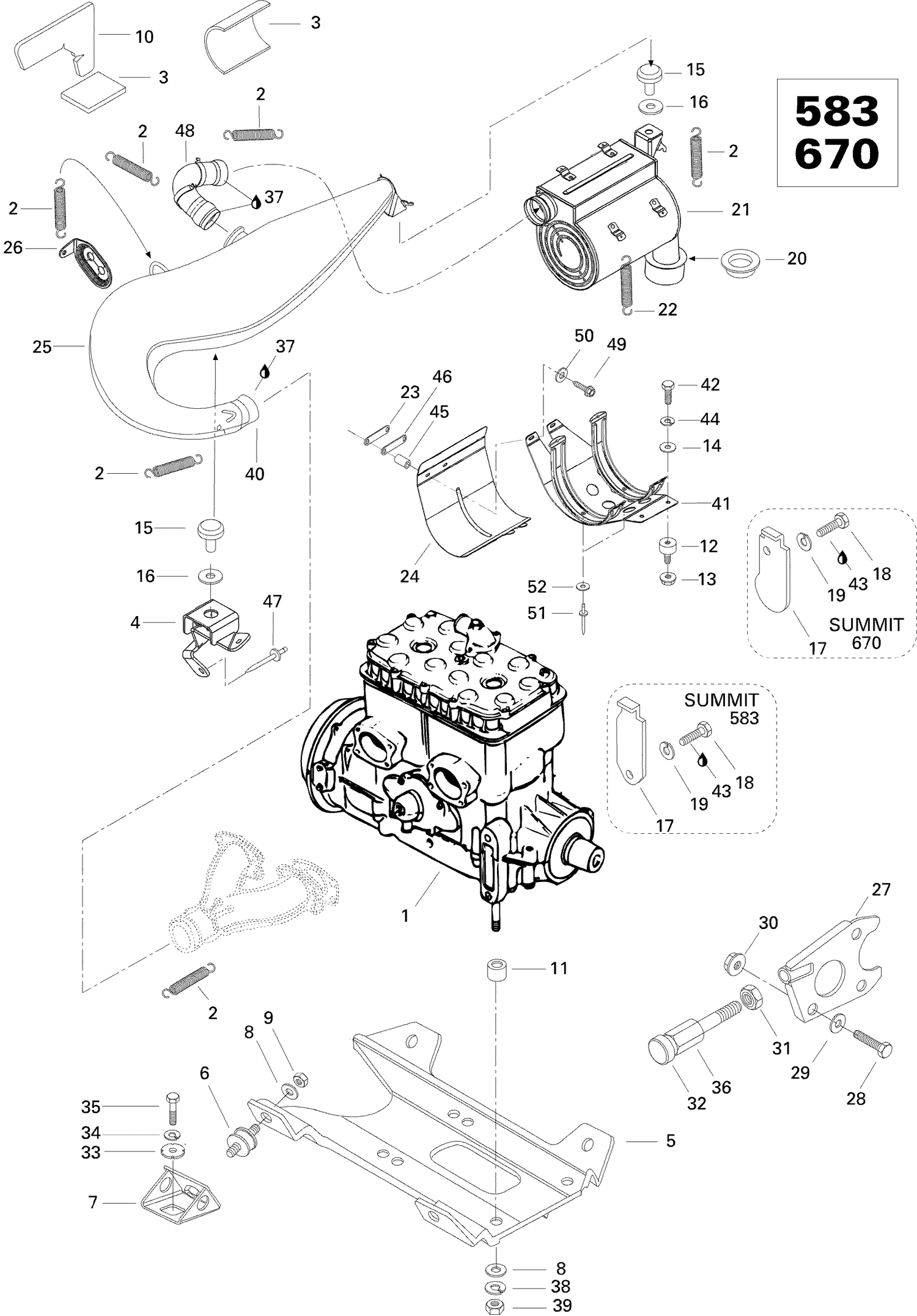

| Ref | Part Number | Description |
|---|
| 1 |
400602400 |
Moteur «670» |
| 2 |
415107100 |
Spring This part replaces 414893700. |
| 3 |
414746400 |
Reflection Sheet |
| 4 |
514044500 |
Pipe Support |
| 5 |
512054400 |
Engine Support |
| 6 |
570127700 |
RUBBER MOUNT - Call your local BRP dealership |
| 7 |
512050900 |
Engine Support |
| 8 |
234001410 |
Flat Washer 10 mm This part replaces 224001211. |
| 9 |
233601416 |
Elastic Locking Nut M10 X 1.5 This part replaces 228501045. |
| 10 |
415014900 |
Reflection Sheet |
| 11 |
503128100 |
Spacer |
| 12 |
570016100 |
Rubber Mount |
| 13 |
233281414 |
Hex. Flange Elastic Nut M8 This part replaces 228781045. |
| 14 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 15 |
514053654 |
Rubber Bumper This part replaces 570048700. |
| 16 |
503107800 |
WASHER - Call your local BRP dealership |
| 17 |
512052900 |
Stopper Plate |
| 18 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 19 |
234161471 |
Lock Washer M6, Black This part replaces 224761110. |
| 20 |
570027300 |
Exhaust Grommet |
| 21 |
514044400 |
Muffler |
| 22 |
414851600 |
Spring |
| 23 |
517267100 |
Side Bracket |
| 24 |
514044300 |
Heat Deflector |
| 25 |
514044600 |
Single Tune Pipe |
| 26 |
514045100 |
Pipe Bracket |
| 27 |
512055600 |
Support Plate |
| 28 |
207182544 |
Hex. Screw M8 X 25 This part replaces 222082565. |
| 29 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 30 |
232581414 |
Hex. Elastic Stop Nut M8 This part replaces 228581045. |
| 31 |
232026414 |
RH Hex. Nut This part replaces 732610019. |
| 32 |
570045400 |
STOPPER - Call your local BRP dealership |
| 33 |
512056700 |
Lock Washer This part replaces 517168000. |
| 34 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 35 |
207102544 |
Hex. Screw M10 X 25 This part replaces 222002565. |
| 36 |
512052400 |
Screw |
| 37 |
293800090 |
Sealant, Loctite, 80 ml This part replaces 413710300. |
| 38 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership This part replaces 224701188. |
| 39 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 40 |
420879991 |
FEMALE BALL JOINT - Call your local BRP dealership |
| 41 |
514044200 |
Support Ass'y |
| 42 |
222081265 |
Screw Hex. M8 x 12 |
| 43 |
293800005 |
Loctite 271, 10 ml This part replaces 413707400. |
| 44 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 45 |
570049300 |
Rubber Spacer |
| 46 |
514045200 |
Reinforcement |
| 47 |
390906800 |
Pop Rivet 3/16" |
| 48 |
514044700 |
Tail Pipe |
| 49 |
210263050 |
Hex. Flange Screw M6 X 30 This part replaces 732600004. |
| 50 |
234061410 |
Flat Washer 6 mm This part replaces 224061151. |
| 51 |
390402200 |
Pop Rivet 3/16" |
