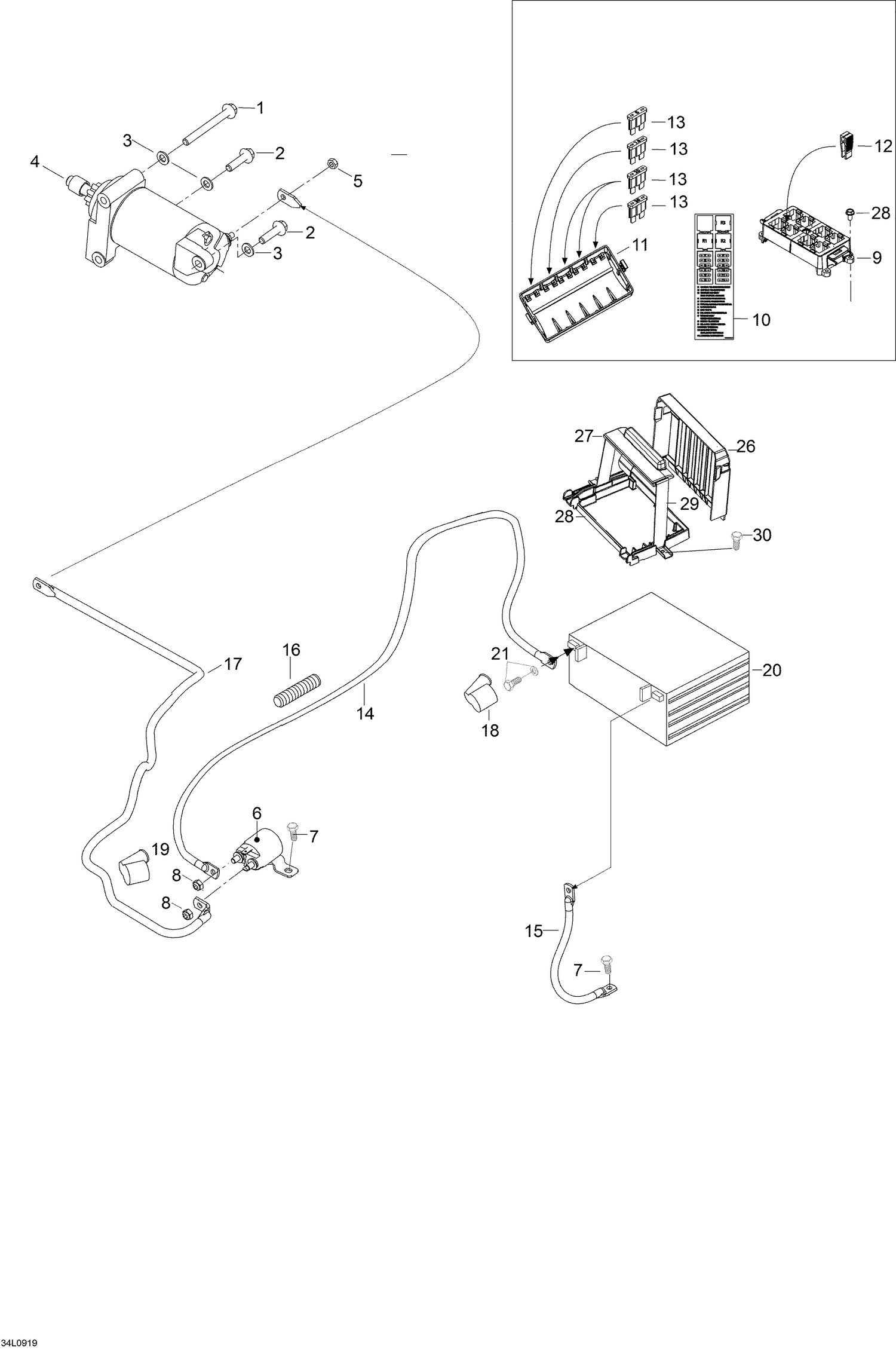

04- Electric Starter
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207587544 | Hex. Flange Screw M8 X 75, Scotch Grip |
| 2 | 207583044 | Hex. Flange Screw M8 X 30, Scotch Grip |
| 3 | 250200008 | Flat Washer With Teflon 8 mm |
| 4 | 515178473 | Starter This part replaces 515176754. |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 515176011 | Starter Relay |
| 7 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 8 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 9 | 515176055 | Terminal Retainer |
| 10 | 605453790 | FUSE DECAL - Call your local BRP dealership |
| 11 | 515176066 | COVER - Call your local BRP dealership |
| 12 | 515175811 | FUSE TOOL - Call your local BRP dealership |
| 13 | 278000344 | Fuse, 5 Amperes |
| 13 | 278000704 | FUSE, 7.5 AMPERES - Call your local BRP dealership |
| 13 | 409003900 | Fuse, 20 Amperes |
| 13 | 410917200 | Fuse, 30 Amperes |
| 13 | M42044 | Fuse 1 A |
| 14 | 515176805 | BATTERY CABLE - Call your local BRP dealership |
| 15 | 515176780 | Ground Wire |
| 16 | M28015 | HOUSING - Call your local BRP dealership |
| 17 | 515176806 | Start Cable |
| 18 | 278001771 | PROTECTOR CAP - Call your local BRP dealership |
| 19 | 570151000 | Protection Cap |
| 20 | 410301203 | Battery YUASA YTX20L |
| 21 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 26 | 510005079 | Battery Cover |
| 27 | 510005146 | Strap Cover |
| 28 | 515176804 | Battery Support |
| 29 | 510005143 | Battery Strap |
