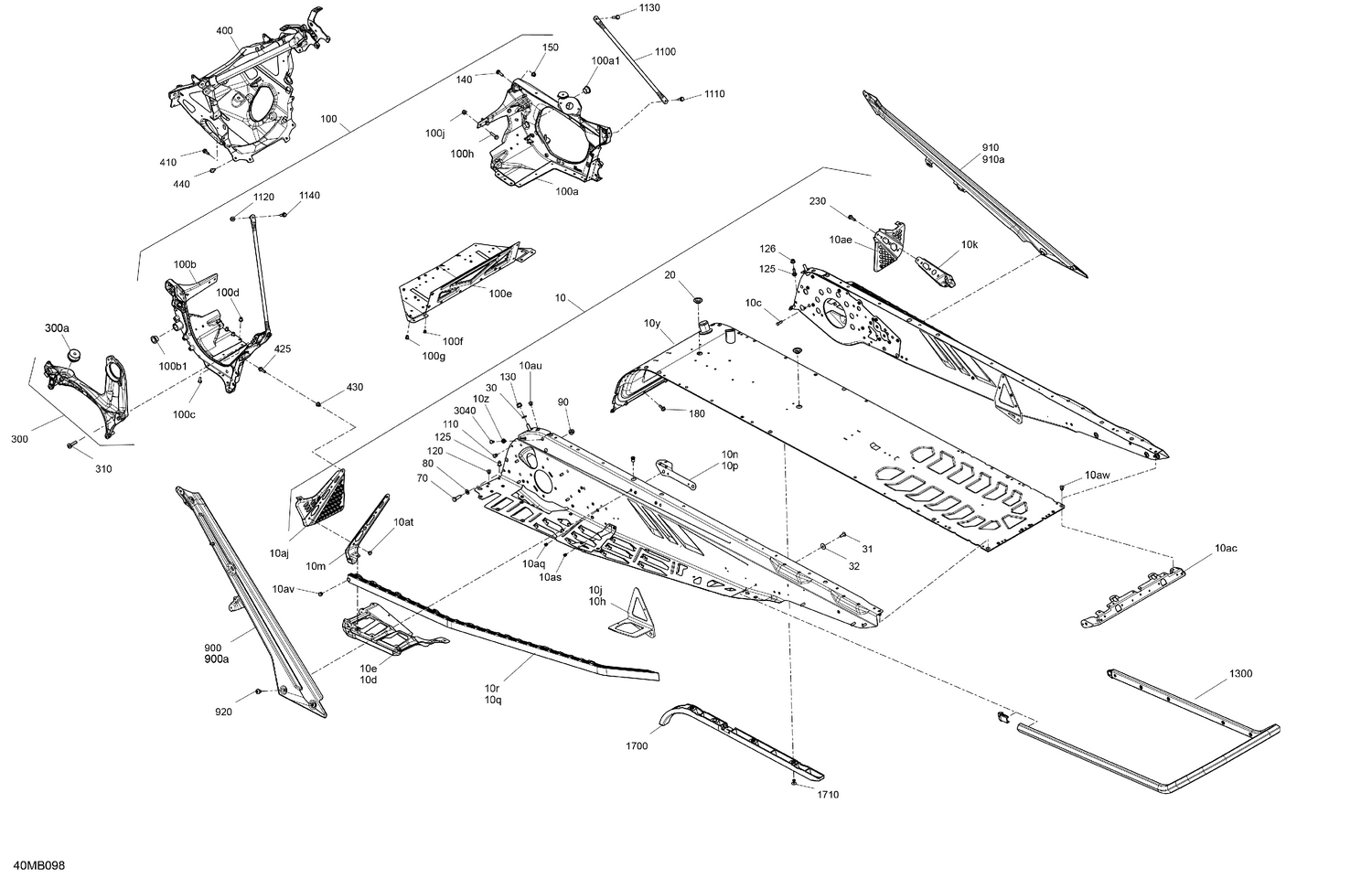

| Ref | Part Number | Description |
|---|
| 10ac |
518328990 |
Rear Cap |
| 10ae |
518328460 |
RH Footrest |
| 10aj |
518333007 |
LH Footrest This part replaces 518331556. |
| 10aq |
390909100 |
Avex Rivet |
| 10as |
390909200 |
Avex Rivet |
| 10at |
293150096 |
Hemlock Rivet, 6.5 mm |
| 10au |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10av |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10aw |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 10c |
250300027 |
Clinch Stud M6 X 20 |
| 10d |
518330738 |
Deep Black, RH Footrest Reinforcement |
| 10e |
518331523 |
Deep Black, LH Footrest Reinforcement |
| 10h |
518330195 |
RH Rear Suspension Support |
| 10j |
518330194 |
LH Rear Suspension Support |
| 10k |
518331253 |
Stirrup Reinforcement |
| 10m |
518332924 |
Deep Black, LH Chassis Reinforcement |
| 10n |
518331744 |
LH Under Chassis Reinforcement |
| 10p |
518331745 |
RH Under Chassis Reinforcement |
| 10q |
518328451 |
RH Roller |
| 10r |
518328452 |
LH Roller |
| 10y |
518334487 |
Radiator Tunnel 129 Ass'y This part replaces 518332551. |
| 10z |
605636003 |
Clinch Nut M6 Hexsert |
| 20 |
293730052 |
Black, Plug |
| 30 |
250200146 |
Conical Spring Washer M8 |
| 31 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
| 32 |
224061201 |
Flat Washer |
| 70 |
250000942 |
Hex Screw M8 X 30 |
| 80 |
234081410 |
Flat Washer 8 mm |
| 90 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 100a1 |
505072690 |
Leg Bushing |
| 100b1 |
505072690 |
Leg Bushing |
| 100c |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 100d |
293150149 |
Collar Huck Magna-Grip 6.4 |
| 100e |
518332716 |
Bottom Plate |
| 100f |
390909100 |
Avex Rivet |
| 100g |
293450268 |
Insert M5 X 0.8 |
| 100h |
207662046 |
Hex. Flange Screw M6 X 20 |
| 100j |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 110 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 120 |
293150174 |
Hemlock Rivet, 6.4 mm |
| 125 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 126 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 130 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 150 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 180 |
207661646 |
Hex. Flange Screw M6 X 16 |
| 230 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 300a |
512061516 |
Vibration Damper This part replaces 512060295. |
| 310 |
250001060 |
Screw-Pan HD.Torx M8X30 |
| 400 |
518334549 |
Chassis Suspension Module Ass'y This part replaces 518332096. |
| 410 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 |
| 425 |
207562056 |
Hex. Flange Screw M6 X 20 |
| 430 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 440 |
293150266 |
Ornit Rivet 6,5 X 14.5 This part replaces 293150147. |
| 900a |
518333356 |
LH Rear Diagonal Cross Member This part replaces 518333264. |
| 910a |
518332559 |
RH Rear Diagonal Cross Member This part replaces 518333265. |
| 920 |
250000887 |
Pan Head Torx Screw M8 X 12 |
| 1100 |
518329974 |
Upper Colomn Support |
| 1110 |
207561646 |
Hex. Flange Screw M6 X 16, Scotch Grip |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1130 |
207662556 |
Hex. Flange Screw M6 X 25 |
| 1140 |
207662046 |
Hex. Flange Screw M6 X 20 |
| 1300 |
518328745 |
Rear Bumper |
| 1700 |
518329982 |
Front Protector |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
