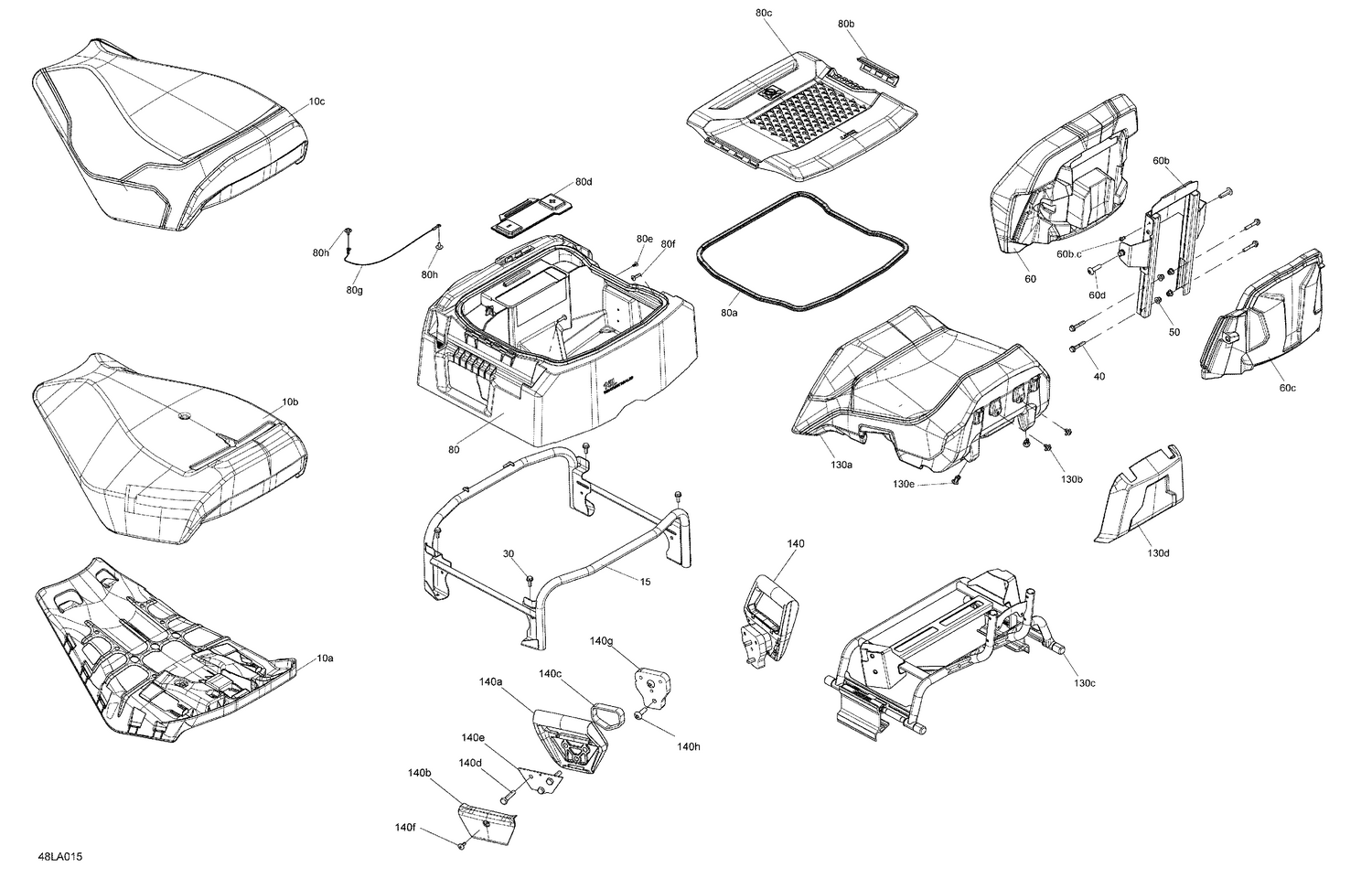

07- Body - Seat — Parts Catalog

Ref	Part Number	Description
10a	510006721	Seat Base
10b	510008182	Front Foam Seat This part replaces 510006722.
10c	510006724	Seat Cover
15	510007010	Seat Support Ass'y
30	207661644	Hex. Flange Screw M6 X 16
40	207663544	Hex. Flange Screw M6 X 35
50	233261416	Elastic Flanged Nut M6 X 1.0
60b	510006733	Backrest Support
60c	510006734	Backrest Support
60d	250000745	Hex Torx Truss M8 X30
80a	293830188	Seal, 1PC = 3M
80b	269502449	Latch
80c	511001274	Box Cover
80d	510006789	Access Cover
80e	250001034	Torx-Truss Screw K40 X 10
80f	250000724	Torx Screw M5 X 20
80g	293750092	Retaining Cable
80h	250000805	Plastite Screw M4 X 10
130a	510006726	Passenger Seat
130b	293150027	Avdel Rivet
130c	510006817	Passenger Chassis Module Ass'y
130d	510006848	Seat Trim
130e	293150230	Tuflok Plastic Rivet
140a	510005409	Handle
140b	510005444	Handle Cover
140c	510007040	Adapter
140d	250000074	Hex. Screw With Nylon M8 X 40
140e	510005936	Support Plate
140f	250000676	Forming Screw M5 x 16
140g	510006950	Adapter
