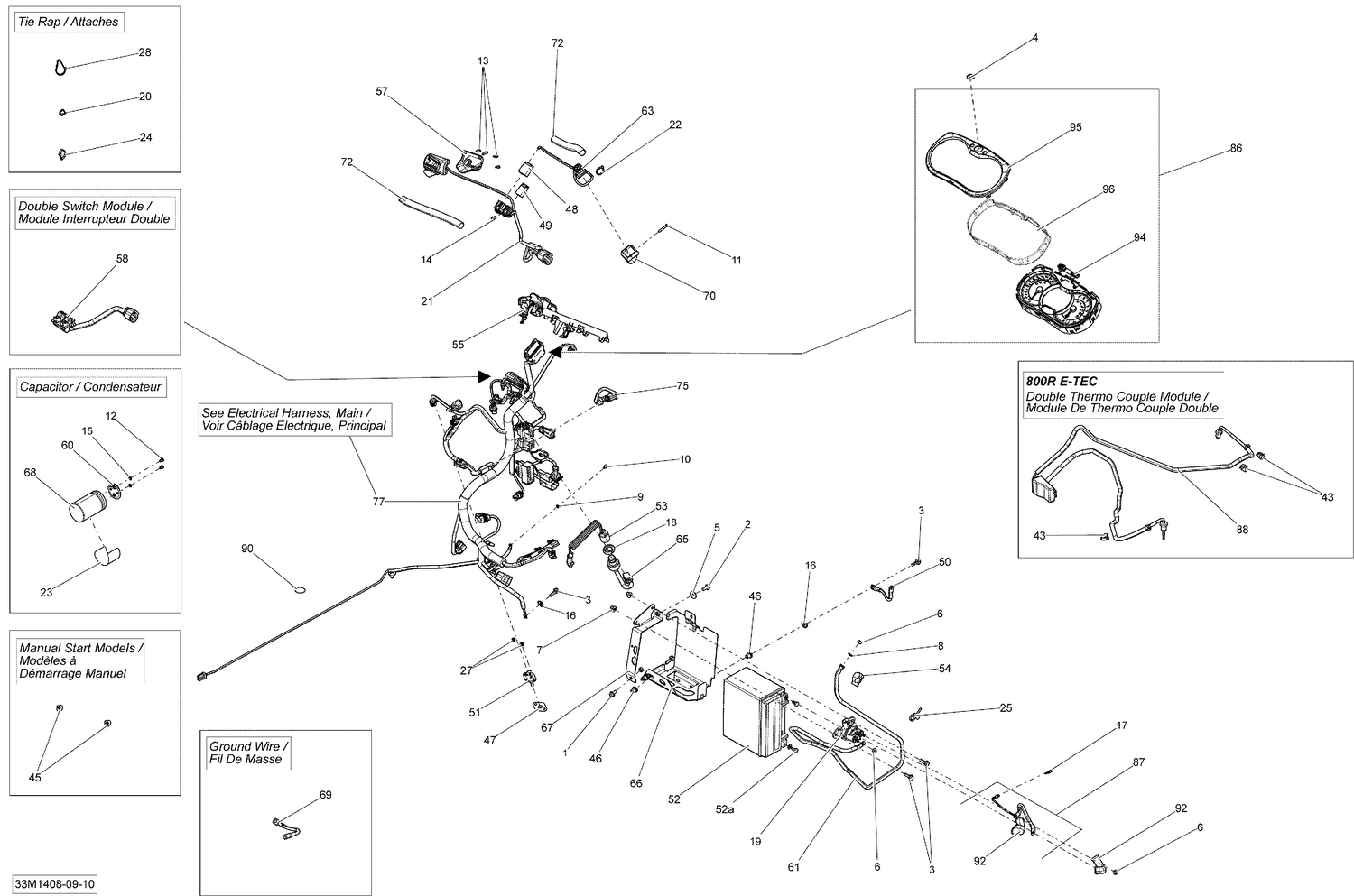

10- Electrical System
Parts (59)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207661244 | Hex. Flange Screw M6 X 12 |
| 2 | 207661644 | Hex. Flange Screw M6 X 16 |
| 3 | 207662044 | Hex. Flange Screw M6 X 20 |
| 4 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 5 | 224061201 | Flat Washer |
| 6 | 232561414 | Elastic Stop Nut M6 |
| 7 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 8 | 234061410 | Flat Washer 6 mm |
| 9 | 234141601 | Lock Washer 4 mm |
| 10 | 250000127 | Torx Screw M4 X 8 |
| 11 | 250000263 | Torx Screw #8-18 |
| 12 | 250000462 | Socket Head Screw M10 X 32 |
| 13 | 250000671 | Torx Screw |
| 14 | 250000690 | Pan Screw Forming, 7500C |
| 15 | 250200026 | Lock washer |
| 16 | 250200041 | Lock Washer Serrated M6 |
| 17 | 278001443 | Fuse, 25 Amperes |
| 18 | 278002963 | Safety Nut (DESS Switch) |
| 19 | 278003012 | Starter Relay |
| 20 | 293750001 | Tie Wrap 94 mm |
| 21 | 515178305 | LH Switch Housing This part replaces 515177615. |
| 22 | 293750002 | Tie Wrap 142 mm |
| 23 | 516006206 | Capacitor Decal |
| 24 | 293750008 | Tie Wrap 368 mm |
| 25 | 293750009 | Tie-Rap 173 mm |
| 27 | 389804300 | Push Nut |
| 28 | 414115200 | Tie-Rap 180 mm |
| 43 | 414227300 | Clip |
| 45 | 414644300 | Black, Dart |
| 46 | 293450275 | Insert |
| 47 | 508000769 | Seal |
| 48 | 515175662 | Male Terminal Housing, 6 Circuits |
| 49 | 515175846 | Male Terminal Housing, 4 Circuits |
| 50 | 515176358 | Ground Wire |
| 51 | 515176366 | Air Temperature Sensor |
| 52a | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 53 | 515178284 | DESS This part replaces 515177057. |
| 54 | 515177066 | Clip |
| 55 | 515177134 | Connector Plate |
| 57 | 515177149 | LH Switch Housing Plate |
| 58 | 515177154 | Double Switch Module |
| 60 | 515177193 | Cap |
| 61 | 515177208 | Battery/Starter Wire |
| 63 | 515177362 | Emergency Stop Switch |
| 65 | 515177249 | DESS Switch |
| 66 | 515177264 | Battery Support |
| 67 | 515177266 | Battery Strip |
| 68 | 515177272 | Capacitor |
| 69 | 515177289 | Ground Wire |
| 70 | 515177310 | Emergency Stop Switch Support |
| 72 | 219704418 | PROTECTOR TUBE 1000MM LONG - Call your local BRP dealership |
| 75 | 420664509 | Temperature Sensor This part replaces 515177471. |
| 77 | 515177542 | WIRING HARNESS MAIN - Call your local BRP dealership |
| 87 | 515177576 | Fuse Battery Wire |
| 88 | 415129998 | Dual Thermocouple Module This part replaces 515177698. |
| 90 | 518325560 | Adhesive Patch |
| 92 | 710000495 | Protector Cap |
| 94 | 415129355 | Speedometer Button |
| 95 | 415129348 | Gauge Ring |
