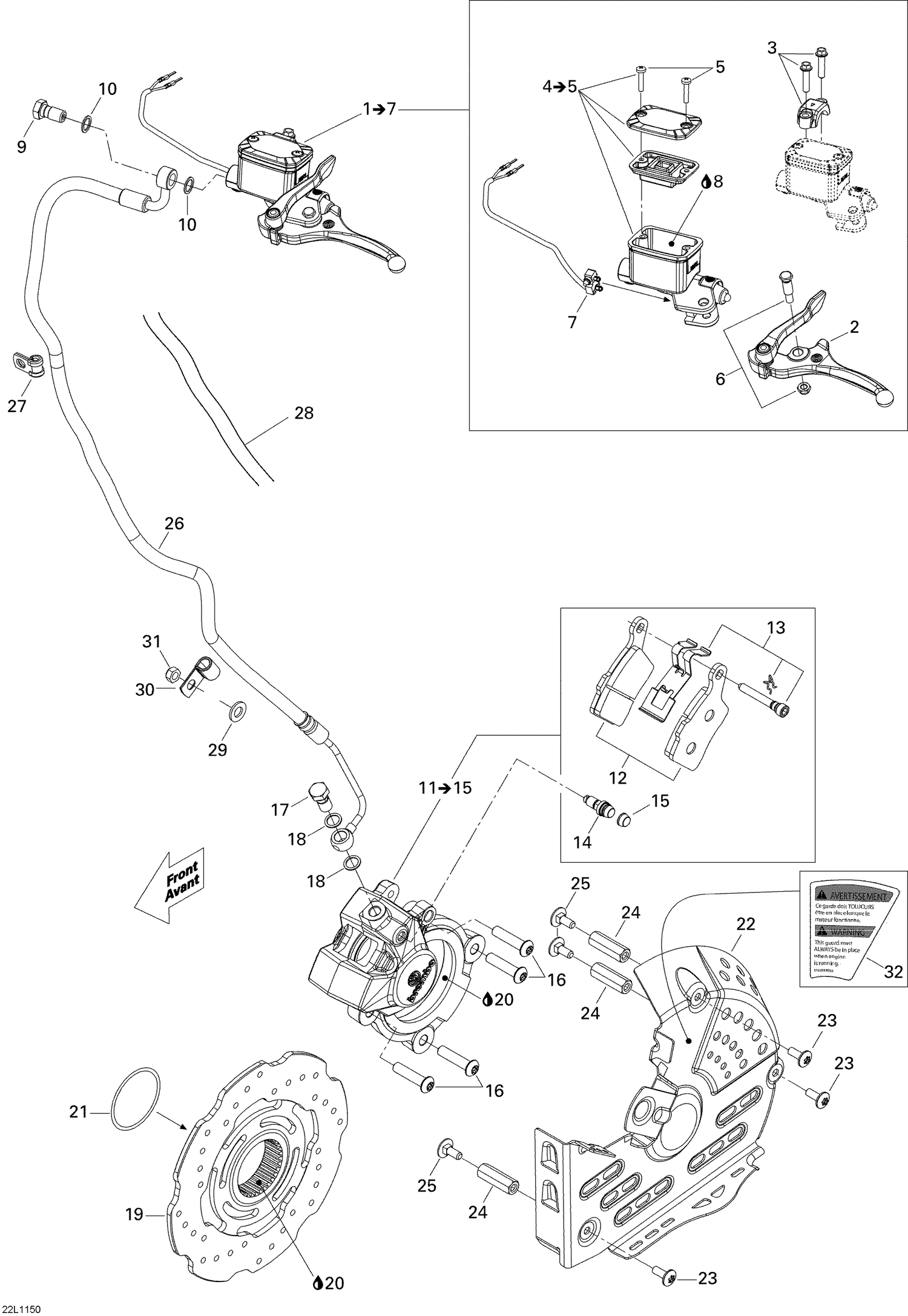

06- Hydraulic Brakes
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 507032476 | Lever With Parking Lock |
| 3 | 507032477 | Clamp |
| 5 | 415129356 | Screw M4 X 20 |
| 6 | 415030000 | Pin Ass'y |
| 7 | 507032479 | Microswitch |
| 8 | 293600131 | HYDRAULIC OIL - Call your local BRP dealership |
| 9 | 414920500 | Banjo Bolt |
| 10 | 414920600 | Washer |
| 12 | 507032473 | Brake Pads Kit |
| 13 | 507032722 | Brake Spring Kit This part replaces 507032474. |
| 14 | 507032475 | Bleeder |
| 15 | 414989700 | BOOT-QTS 20 - Call your local BRP dealership |
| 16 | 250000764 | Torx Screw M8 x 35 This part replaces 250000301. |
| 17 | 414920500 | Banjo Bolt |
| 18 | 414920600 | Washer |
| 19 | 507032513 | Disk This part replaces 507032488. |
| 20 | 293800070 | Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 21 | 293300134 | O-Ring |
| 22 | 507032446 | Disk Protector, Aluminum |
| 23 | 250000365 | Torx Screw M6 X 16 |
| 24 | 507032497 | Threaded Tube |
| 25 | 207761644 | Carriage Bolt M6 X 16 |
| 26 | 507032515 | HOSE - Call your local BRP dealership |
| 27 | 293650256 | Clamp This part replaces 705600459. |
| 28 | 503192475 | Cover |
| 29 | 234081410 | Flat Washer 8 mm |
| 30 | 293650256 | Clamp This part replaces 705600459. |
| 31 | 232561434 | Elastic Stop Nut M6 |
