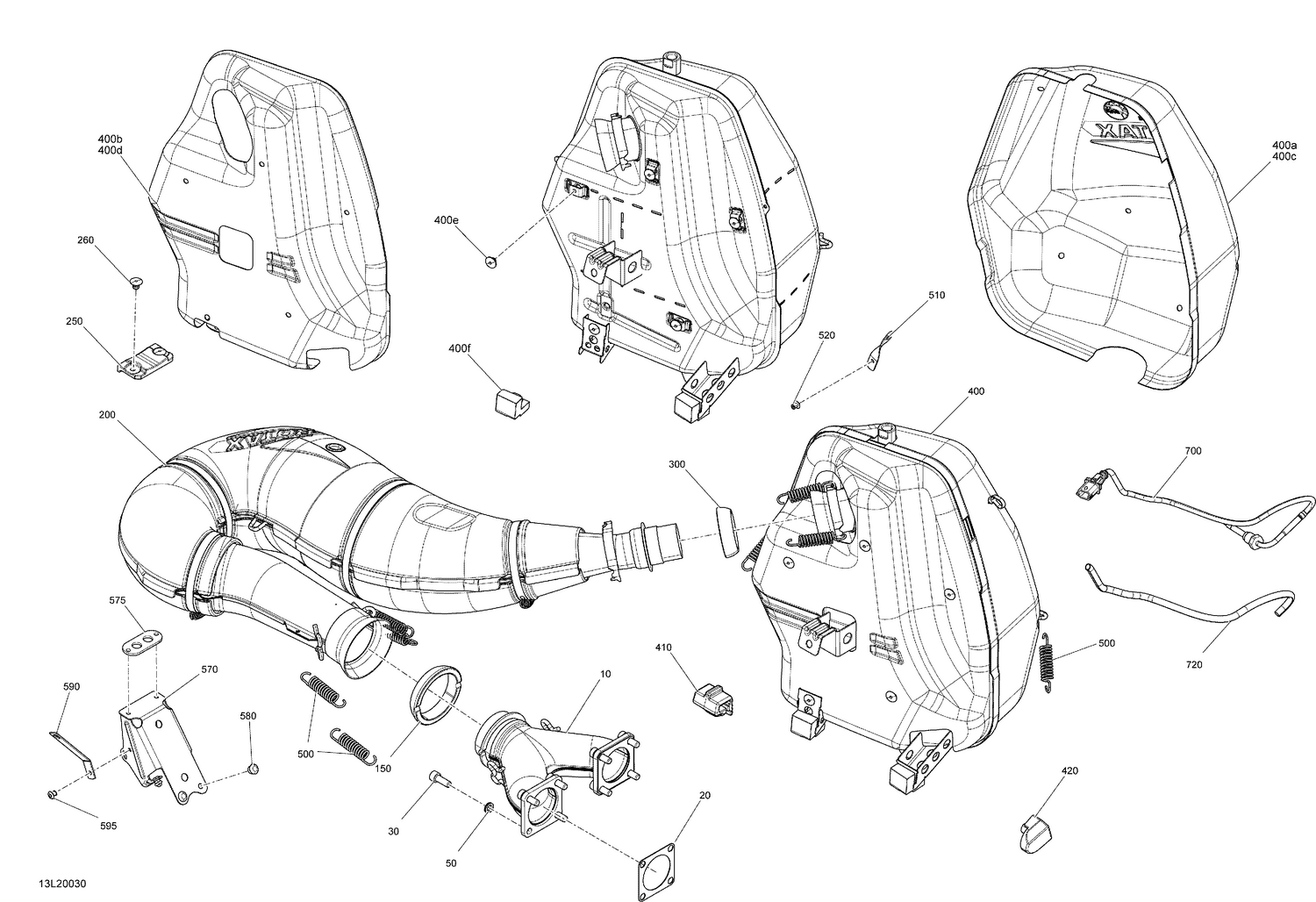

02- Engine - Exhaust
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673421 | Exhaust Manifold |
| 20 | 420850552 | Gasket |
| 30 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 50 | 605620001 | Washer |
| 150 | 514053487 | Exhaust Gasket |
| 200 | 514055027 | Tuned Pipe Ass'y |
| 250 | 514054275 | Bumper |
| 260 | 293150104 | Pop Rivet 3/16" |
| 300 | 514054174 | Exhaust Gasket |
| 400a | 514054986 | RH DEFLECTOR - Call your local BRP dealership |
| 400b | 514055029 | LH DEFLECTOR - Call your local BRP dealership |
| 400c | 514054711 | RH Insulating Wool |
| 400d | 514054299 | LH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054529 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 420 | 514055070 | Rubber Bumber |
| 500 | 415107100 | Spring |
| 510 | 514054974 | Spring Bracket, 5mm hole |
| 520 | 390402200 | Pop Rivet 3/16" |
| 570 | 514054767 | Exhaust Muffler Support |
| 575 | 514054806 | Riser Shim |
| 580 | 293150096 | Hemlock Rivet, 6.5 mm |
| 590 | 514053393 | Spring Bracket |
| 595 | 390402200 | Pop Rivet 3/16" |
| 700 | 514054870 | Temperature Sensor |
