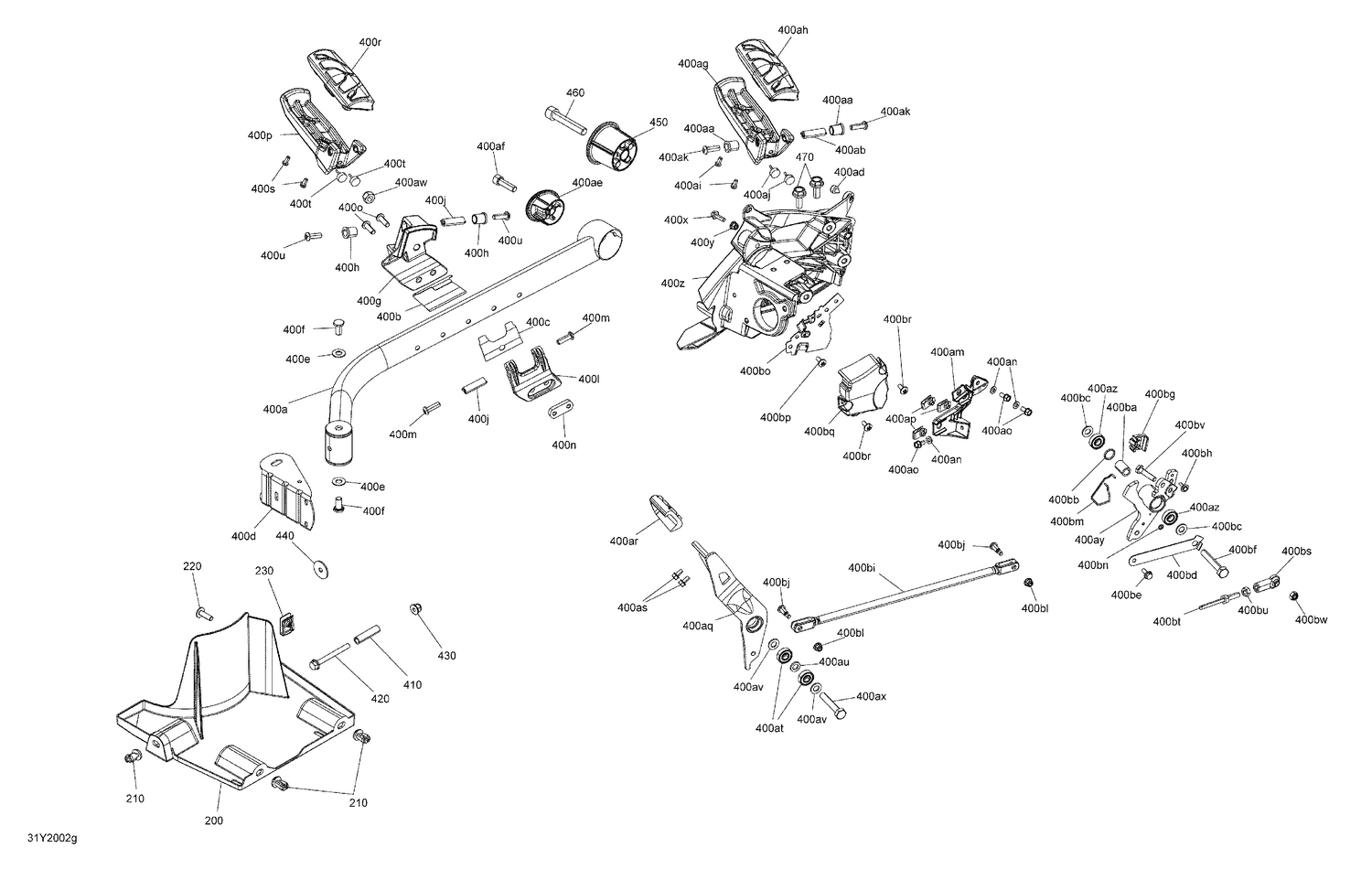

09- Body And Accessories RH Footrest
Parts (76)
| Ref | Part Number | Description |
|---|---|---|
| 200 | 705007786 | RH Front Skid Plate |
| 210 | 293150230 | Tuflok Plastic Rivet |
| 220 | 250000446 | Torx Screw M6 X 20, Scotch Grip |
| 230 | 250100208 | Panel Nut M6 X 1.0 |
| 400aa | 705008166 | Spacer Bushing |
| 400ab | 705013628 | Pivot Pin |
| 400ad | 293830005 | Rubber Bumper |
| 400ae | 705010203 | Pivot Cap |
| 400af | 244003560 | SOCKET HEAD SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership |
| 400ag | 705008160 | Carbon Black, RH Footpeg |
| 400ah | 705011281 | Footpeg Rubber Pad |
| 400ai | 250000099 | Allen Plastite Screw #12 |
| 400aj | 708000759 | Rubber Stopper |
| 400ak | 250000830 | Socket Head Screw M8 X 25 |
| 400am | 705008962 | RH Fairing Support |
| 400an | 234061670 | Black, Flat Washer 6 mm |
| 400ao | 210261250 | Hex. Flange Screw M6 X 12 |
| 400ap | 250100198 | Panel Nut M6 X 1.0 |
| 400aq | 705601419 | Brake Pedal |
| 400ar | 705004933 | Rubber Pad |
| 400as | 210261250 | Hex. Flange Screw M6 X 12 |
| 400at | 705600458 | Bearing |
| 400au | 503192496 | Washer |
| 400av | 503183800 | Washer |
| 400aw | 233601466 | Elastic Locking Nut M10 |
| 400ax | 207006056 | Hex. Cap Screw M10 X 60 |
| 400ay | 705601308 | Master Cylinder Rocker |
| 400az | 705600458 | Bearing |
| 400b | 705014177 | RH Outer Protective Film |
| 400ba | 705600541 | Bushing |
| 400bb | 293300191 | O-Ring |
| 400bc | 503183800 | Washer |
| 400bd | 705601229 | Locking Tab |
| 400be | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 400bf | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 400bg | 705601375 | Brake Master Cylinder Stopper |
| 400bh | 250000725 | Screw M4 X 16 |
| 400bi | 219400628 | Brake Linkage Kit (410.7 mm) |
| 400bj | 250000714 | Flange Screw M6 X 26 |
| 400bl | 233261466 | Hex. Flange Elastic Nut M6 |
| 400bm | 705601350 | Quick-Attach Bracket |
| 400bn | 250100178 | Push Nut |
| 400bo | 705601342 | Light Switch Bracket |
| 400bp | 250000717 | Torx Head Screw M6 X 16 |
| 400bq | 705601343 | Switch Deflector |
| 400br | 250000717 | Torx Head Screw M6 X 16 |
| 400bs | 705601506 | Rod End - Call your local BRP dealership This part replaces 705601340. |
| 400bt | 705600468 | Piston Rod |
| 400bu | 232081414 | Hex. Nut M8 |
| 400bv | 207283544 | Hexagonal Head Cap Screw M8 X 35 |
| 400bw | 232581414 | Hex. Elastic Stop Nut M8 |
| 400c | 705014175 | RH Inner Protective Film |
| 400d | 705008950 | Tube Support |
| 400e | 506152582 | Washer |
| 400f | 250000719 | Hex. Cap Screw Full Thread M10 X 20 |
| 400g | 705008158 | RH Slider Outside |
| 400h | 705008166 | Spacer Bushing |
| 400j | 705013628 | Pivot Pin |
| 400l | 705013120 | Black, RH Slider Clamp |
| 400m | 250000830 | Socket Head Screw M8 X 25 |
| 400n | 705008553 | Back Plate |
| 400o | 250000830 | Socket Head Screw M8 X 25 |
| 400p | 705008160 | Carbon Black, RH Footpeg |
| 400r | 705011281 | Footpeg Rubber Pad |
| 400s | 250000099 | Allen Plastite Screw #12 |
| 400t | 708000759 | Rubber Stopper |
| 400u | 250000830 | Socket Head Screw M8 X 25 |
| 400x | 207562054 | Hex. Flange Screw S.Grip M6 X 20 |
| 400y | 233261466 | Hex. Flange Elastic Nut M6 |
| 400z | 705009402 | Carbon Black, RH Rear Footrest Support |
| 410 | 705018575 | Spacer This part replaces 705008219. |
| 420 | 250000778 | Hex. Flange Screw M6 X 60 |
| 430 | 233261466 | Hex. Flange Elastic Nut M6 |
| 440 | 250200029 | Washer M6 |
| 450 | 705010202 | Pivot Cap |
| 460 | 205505560 | Socket Head Screw |
