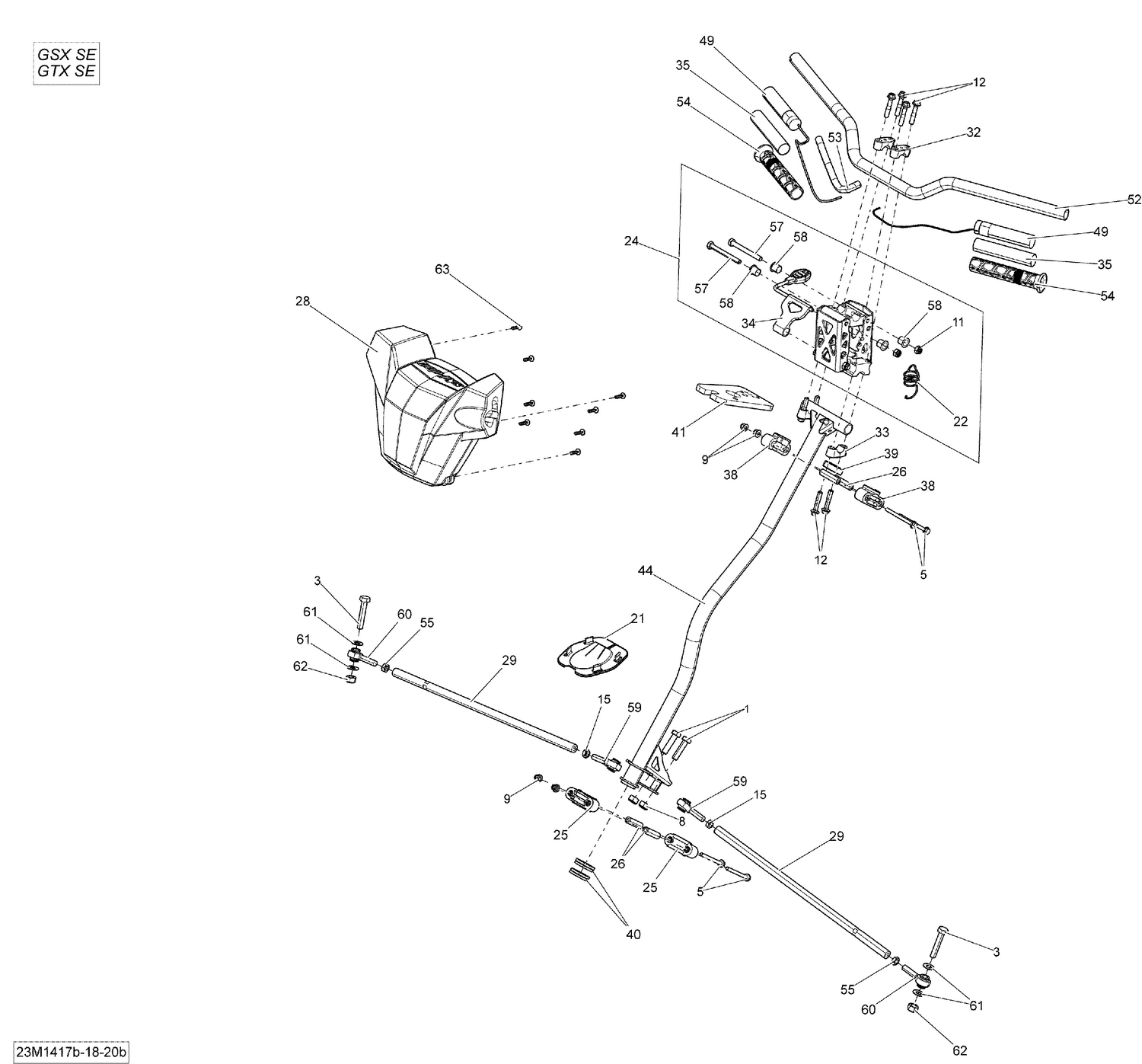

07- Steering SE
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207004034 | Hex. Screw M10 X 1.5 X 40 |
| 3 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 5 | 207667056 | Hex. Flange Screw M6 X 70 This part replaces 207667086. |
| 8 | 232500416 | Elastic Stop Nut M10 |
| 9 | 233261416 | Elastic Flange Nut M6 X 1.0 |
| 11 | 233281414 | Hex. Flange Elastic Nut M8 |
| 12 | 250000352 | Hex. Flange Screw M8 X 40 |
| 15 | 250100016 | LH Threaded Hex. Jam Nut M10 |
| 21 | 506152163 | Plate |
| 22 | 506152184 | Spring |
| 24 | 506152197 | ADJUSTABLE HANDLEBAR - Call your local BRP dealership |
| 25 | 506152217 | Lower Half-Housing |
| 26 | 506152297 | Housing Bushing |
| 28 | 506152601 | Steering Pad (Adjustable) |
| 29 | 506152496 | Tie-Rod Ass'y |
| 32 | 506152751 | Steering Support This part replaces 506152395. |
| 33 | 506152751 | Steering Support This part replaces 506152395. |
| 34 | 506152411 | HANDLE ASM - Call your local BRP dealership |
| 35 | 506153178 | Insulant This part replaces 506152423. |
| 38 | 506152508 | Upper Half-Housing |
| 39 | 506152509 | Upper Anti-Vibration Gasket |
| 40 | 506152518 | Lower Vibration Ring |
| 41 | 506152521 | Bushing |
| 44 | 506152964 | Steering Column This part replaces 506152585. |
| 49 | 506152681 | HEATED FILM - Call your local BRP dealership |
| 52 | 506152711 | Black Handle Bar |
| 53 | 219704427 | LOW TEMPERATURE TUBING 1/2? 3000MM LONG - Call your local BRP dealership |
| 54 | 506152501 | Grip |
| 55 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 57 | 207088544 | HEX. SCREW M8 X 85 - Call your local BRP dealership |
| 58 | 506152520 | Cushion |
| 59 | 506152081 | LH Thread Ball Joint |
| 60 | 506152019 | RH Threaded Ball Joint |
| 61 | 506152582 | Washer |
| 62 | 233601466 | Elastic Locking Nut M10 |
