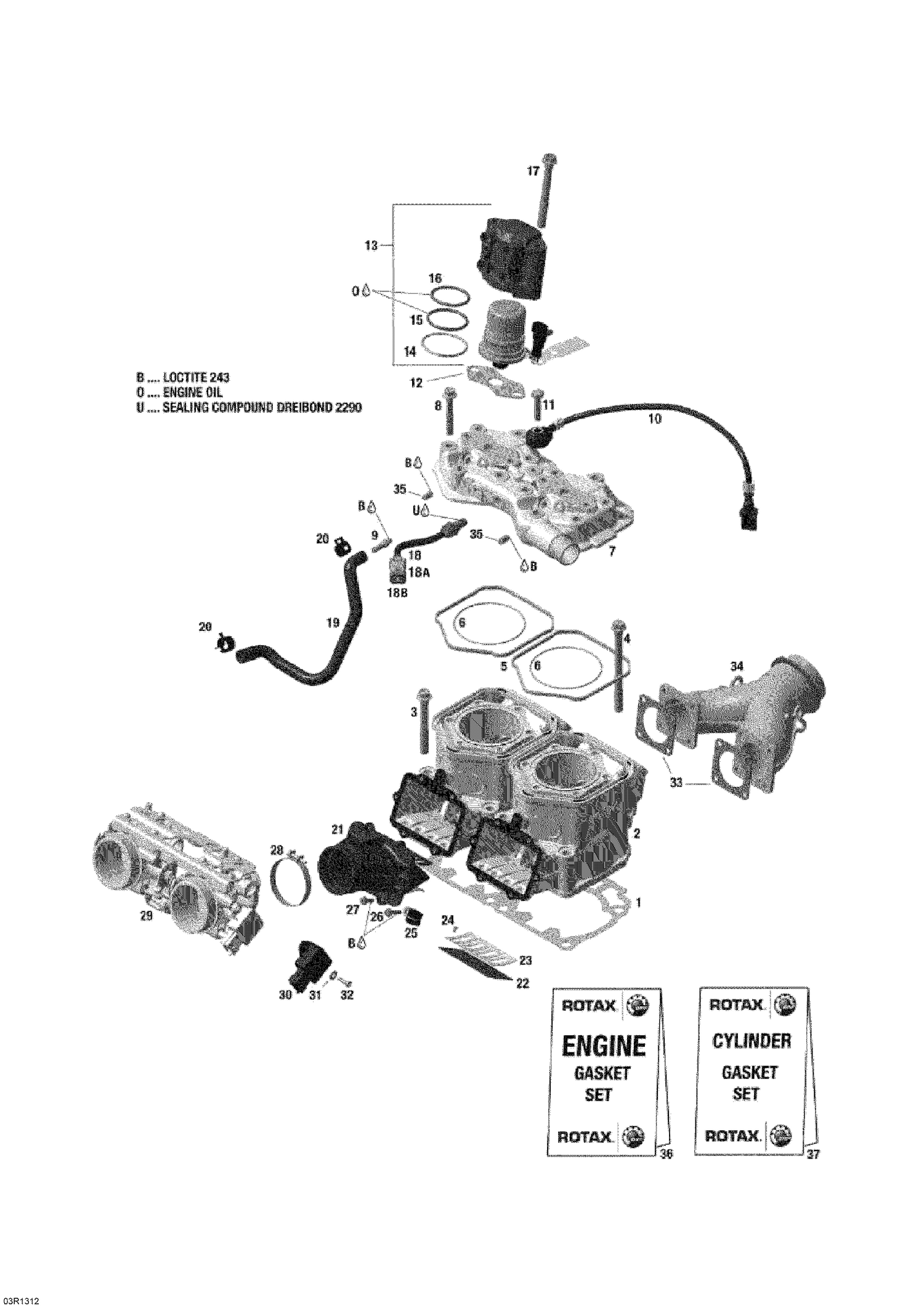

01- Cylinder And Injection System

Ref	Part Number	Description
B	293800060	Loctite 243, 10 ml
O	Not	Available As Spare Part - Engine Oil
1	420431160	Double Gasket 0.5 mm
1	420431161	Double Gasket 0.6 mm
1	420431162	Double Gasket 0.7 mm
1	420431163	Double Gasket 0.8 mm
2	420623263	Cylinder
3	420640524	Hex. Collar Screw
4	420640534	Hex. Collar Screw
5	420931590	Rubber Ring
6	293300026	O-Ring
7	420623299	Head Cylinder Cover This part replaces 420623298.
8	420941627	Hex. Screw M8 X 56.5
9	420924724	Hose Nipple This part replaces 420924720.
10	270000484	Knock sensor
11	207083544	Hex. Screw M8 X 35
12	420430930	Gasket
14	415129497	Crush Ring
15	415129498	O-Ring
16	415129499	O-Ring
17	420441187	Flanged Torx Screw M10 X 90 -SW 13/T50
18a	515175670	Female Terminal Housing, 2 Circuits
18b	278000632	Female Terminal
19	420460867	Molded Hose
20	420853511	Clamp
22	420924680	Reed Pedal
23	420924695	Reed Pedal Stop
24	420941215	Phillips Screw M3 X 5
25	420851250	Clamp
26	420841550	Tapping Screw M5 X 22
27	420941928	Taptite Screw M5 X 16 This part replaces 420941925.
28	293650158	Clamp
29	420889201	Throttle Body This part replaces 420889197.
30	420866120	Position Sensor This part replaces 270000251.
31	234041600	Flat Washer 4 mm, Stainless
32	208641660	Phillips Screw M4 X 16
33	420850552	Gasket
34	420673421	Exhaust Manifold This part replaces 420673420.
35	420924724	Hose Nipple
36	420889924	Gasket Set, Engine
37	420889928	Gasket Set, Cylinder
