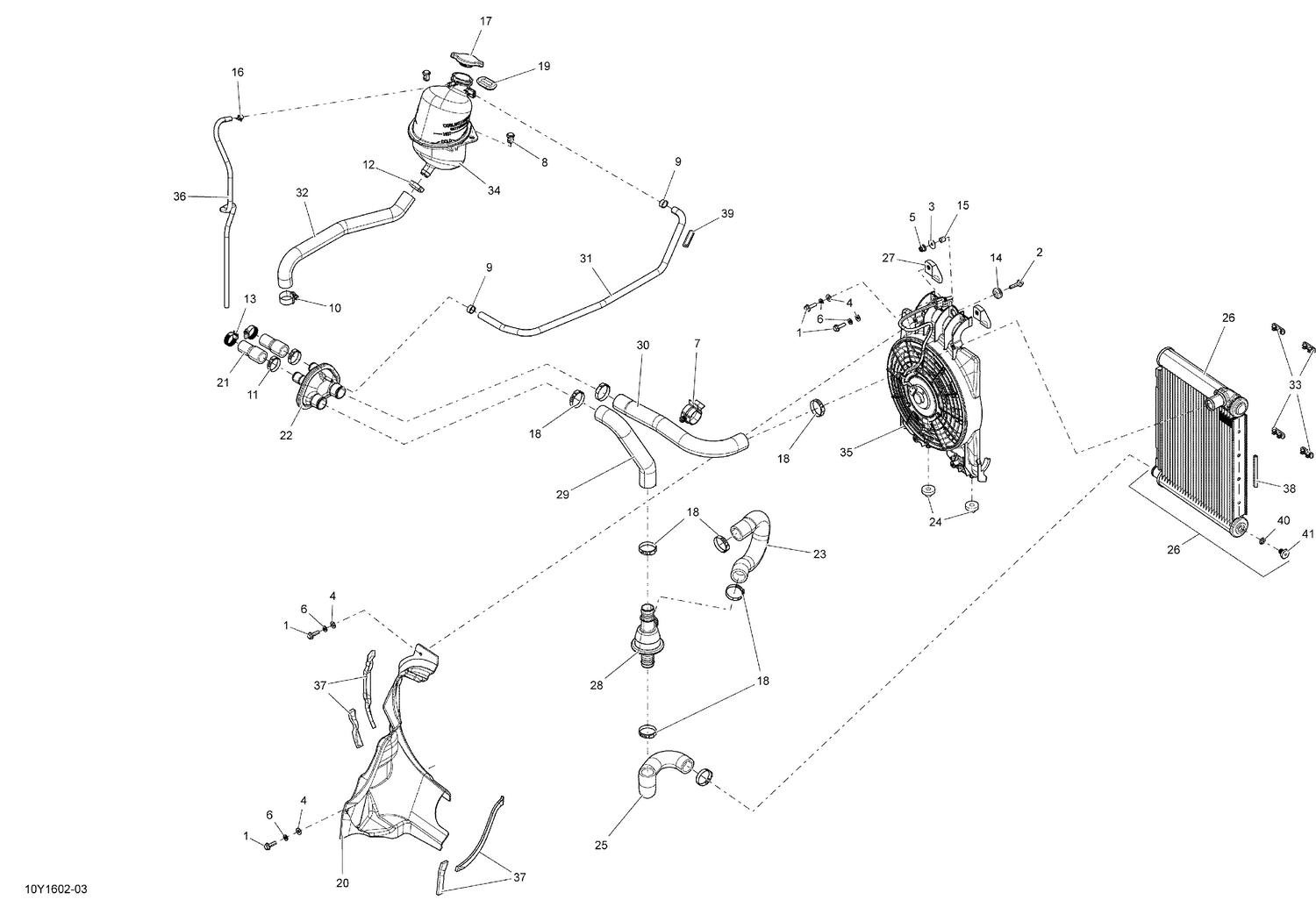

01- Cooling System
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207662044 | Hex. Flange Screw M6 X 20 |
| 2 | 207662544 | Hex. Flange Screw M6 X 25 |
| 3 | 224060201 | Flat Washer |
| 4 | 224061121 | Flat Washer |
| 5 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 6 | 234161601 | Lock Washer Helical M6 |
| 7 | 275500590 | Retainer |
| 8 | 293150230 | Tuflok Plastic Rivet This part replaces 293150089. |
| 9 | 293650025 | Oetiker Gear Clamp |
| 10 | 293650051 | Tridon Gear Clamp |
| 11 | 293650099 | Crimp Clamp |
| 12 | 293650165 | Oetiker Gear Clamp |
| 13 | 293650173 | Tridon Gear Clamp |
| 14 | 709000582 | Grommet This part replaces 293720053. |
| 15 | 293900105 | Bushing |
| 16 | 414554800 | Spring Clamp |
| 17 | 509000187 | Pressure Cap |
| 18 | 509000529 | Oetiker Gear Clamp, 36.5-706R |
| 19 | 705003668 | Oblong Grommet |
| 20 | 705006688 | RH INNER HEAT SHIELD - Call your local BRP dealership |
| 21 | 709200144 | HOSE_WATER PUMP UP FORMED - Call your local BRP dealership |
| 22 | 709200151 | Connector |
| 23 | 709200259 | HOSE_WATER PUMP LWR FORMED - Call your local BRP dealership |
| 24 | 709200285 | Grommet |
| 25 | 709200301 | HOSE_RADIATOR LWR FORMED - Call your local BRP dealership |
| 26 | 709200337 | Radiator |
| 27 | 709200372 | CLAMP BRACKET - Call your local BRP dealership |
| 28 | 709200384 | Thermostat Housing |
| 29 | 709200419 | HOSE_THERMOSTAT UP FORMED - Call your local BRP dealership |
| 30 | 709200420 | HOSE_RADIATOR UP FORMED - Call your local BRP dealership |
| 31 | 709200421 | FORMED HOSE - Call your local BRP dealership |
| 32 | 709200489 | HOSE_COOLANT TANK LWR FORMED - Call your local BRP dealership |
| 33 | 709200502 | Rubber Stopper |
| 34 | 709200749 | Coolant Tank This part replaces 709200528. |
| 35 | 709200554 | Fan Assembly |
| 36 | 219704410 | Polyurethane Hose 10000Mm Long |
| 37 | 219704364 | Neoprene Seal (1PAC=3M) |
| 38 | 219704405 | TRIM 30000MM LONG - Call your local BRP dealership |
| 39 | 219704354 | Trim 1000Mm Long |
| 40 | 709200417 | O-RING - Call your local BRP dealership |
