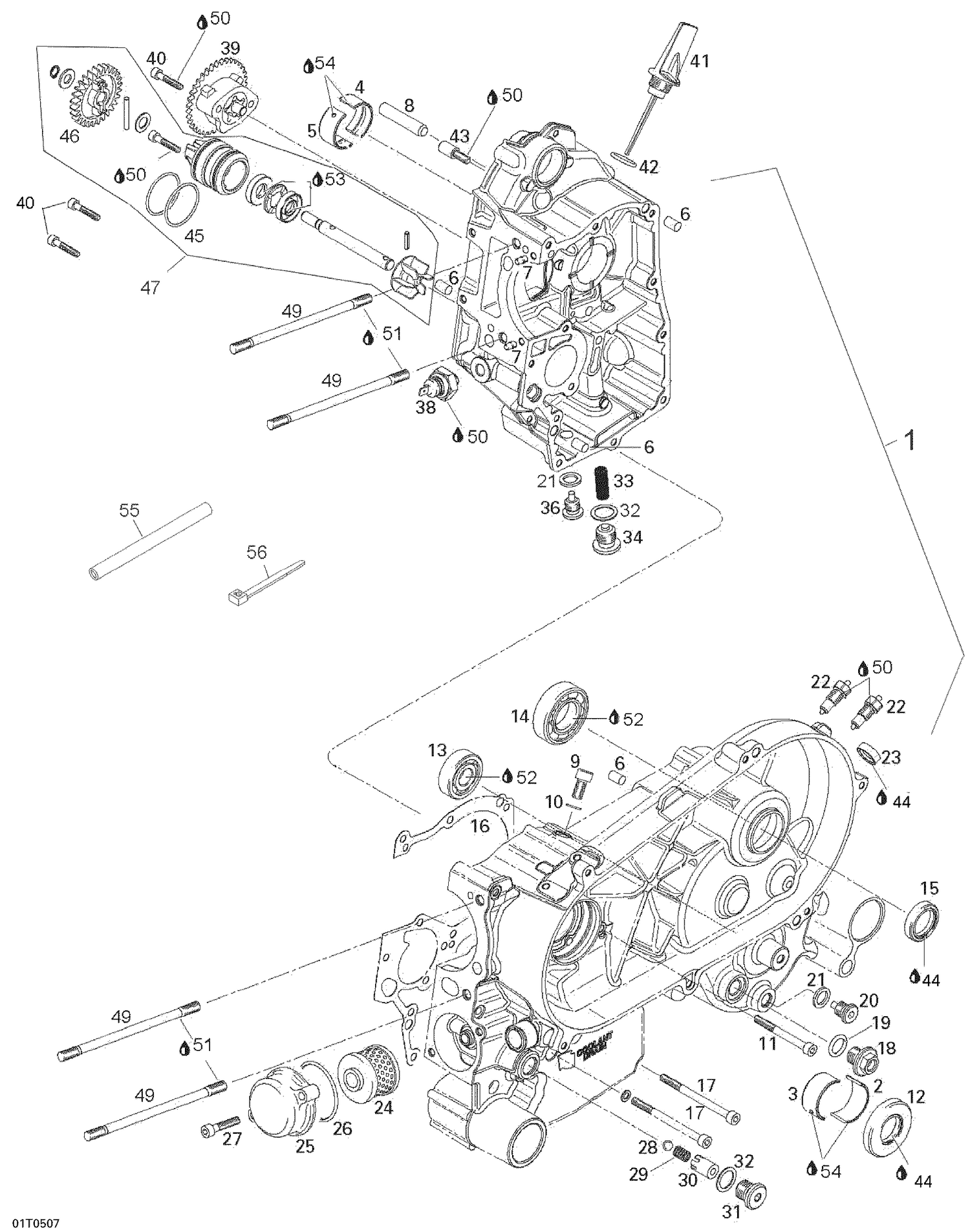

| Ref | Part Number | Description |
|---|
| 1 |
A11000179000 |
CRANKCASE ASS'Y - Call your local BRP dealership |
| 2 |
A96700179000 |
Plain Bearing A |
| 3 |
A96701179000 |
Plain Bearing B |
| 4 |
A96702179000 |
PLAIN BEARING C - Call your local BRP dealership |
| 5 |
A96703179000 |
PLAIN BEARING D - Call your local BRP dealership |
| 6 |
A9430108120 |
DOWEL PIN - Call your local BRP dealership |
| 7 |
A9430105100 |
Drive Pin 5 X 10 |
| 8 |
A9630010050 |
LOCATION PIN - Call your local BRP dealership |
| 9 |
205081660 |
Socket Head Screw M8 X 16 |
| 10 |
A941030813008 |
SEALING RING - Call your local BRP dealership |
| 11 |
420240373 |
ALLEN SCREW M6 X 60 - Call your local BRP dealership This part replaces 420240371. |
| 12 |
A9650025527 |
OIL SEAL - Call your local BRP dealership |
| 13 |
A961006302C3 |
BALL BEARING - Call your local BRP dealership |
| 14 |
A961006205C3 |
BALL BEARING - Call your local BRP dealership |
| 15 |
A9650025357 |
OIL SEAL - Call your local BRP dealership |
| 16 |
A11191179000 |
GASKET - Call your local BRP dealership |
| 17 |
420241503 |
ALLEN SCREW, M6 X 80 - Call your local BRP dealership This part replaces 420241501. |
| 18 |
420241662 |
Plug Screw M14 X 1.5 This part replaces 420241660. |
| 19 |
A91314179000 |
O-Ring |
| 20 |
420841924 |
Plug screw This part replaces 420841921. |
| 21 |
A941031218013 |
GASKET - Call your local BRP dealership |
| 22 |
A35750179000 |
CONTACT SCREW M10 - Call your local BRP dealership |
| 23 |
A96500121845 |
OIL SEAL - Call your local BRP dealership |
| 24 |
715500367 |
OIL FILTER - Call your local BRP dealership |
| 25 |
A12361179000 |
OIL FILTER COVER - Call your local BRP dealership |
| 26 |
A91347179000 |
O-RING - Call your local BRP dealership |
| 27 |
420241941 |
HEX. FLANGED SCREW M6 X 30 - Call your local BRP dealership |
| 28 |
A11401179000 |
BALL 8.5 MM - Call your local BRP dealership |
| 29 |
A11402179000 |
COMPRESSION SPRING - Call your local BRP dealership |
| 30 |
A11403179000 |
PRESSURE REGULATOR VALVE - Call your local BRP dealership |
| 31 |
420240234 |
Plug Screw M16 X 1.5 This part replaces 420240230. |
| 32 |
A941031622012 |
O-RING - Call your local BRP dealership |
| 33 |
A15421179000 |
OIL SIEVE - Call your local BRP dealership |
| 34 |
420240235 |
Plug Screw M16 X 1.5 |
| 36 |
420241780 |
Magnetic Drain Plug M12 X 1.5 This part replaces 420241782. |
| 38 |
420956166 |
OIL PRESSURE SWITCH M10 X 1 - Call your local BRP dealership |
| 39 |
420295630 |
OIL PUMP ASS'Y - Call your local BRP dealership |
| 40 |
420241275 |
TAPTITE SCREW M5 X 25 - Call your local BRP dealership |
| 41 |
A15650179000 |
OIL DIPSTICK - Call your local BRP dealership |
| 42 |
A91317179000 |
O-RING - Call your local BRP dealership |
| 43 |
420240940 |
SCREW M6 - Call your local BRP dealership |
| 44 |
293550030 |
Grease, Super Lube |
| 45 |
420430900 |
O-RING - Call your local BRP dealership |
| 46 |
420634430 |
WATER PUMP GEAR, 28 TEETH - Call your local BRP dealership |
| 47 |
420293419 |
WATER PUMP ASS'Y - Call your local BRP dealership |
| 49 |
420640240 |
STUD M8 X 151 - Call your local BRP dealership |
| 50 |
293800060 |
Loctite 243, 10 ml |
| 52 |
219704461 |
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 53 |
413707000 |
Dow Corning 111, 150 g |
| 54 |
420297433 |
Molykote G-N, 50 g |
| 55 |
A944500507150 |
Housing |
