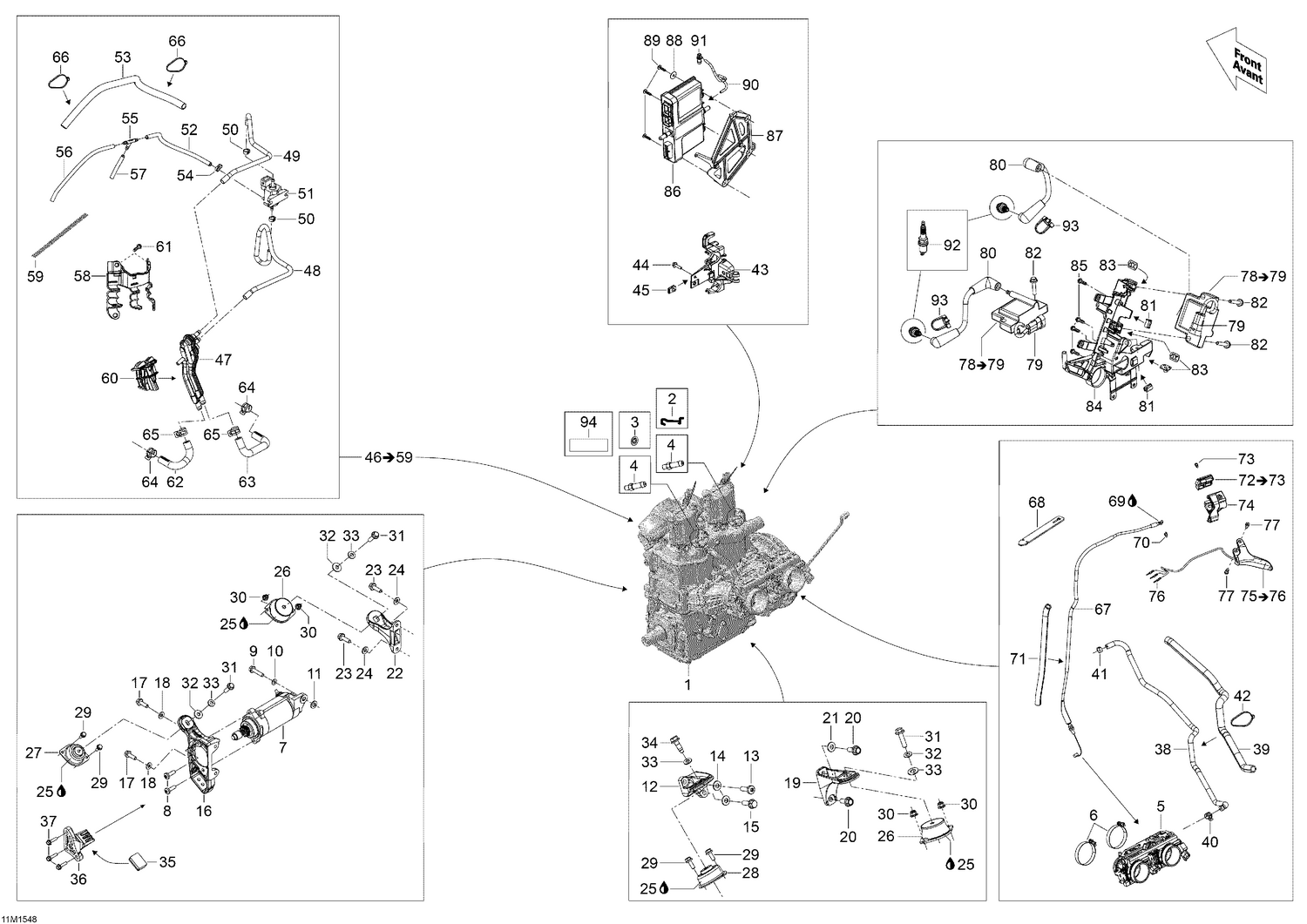

01- Engine _11M1548

01- Engine _11M1548

Parts (89)

RefPart NumberDescription
1 Not Available As Spare Part - Engine 600HO E-TEC
2 515177770 Locker
3 732610072 Push Nut
4 420924724 Hose Nipple
5 420889201 Throttle Body This part replaces 420889197.
6 293650158 Gemi Clamp
7 515178473 Starter This part replaces 515177389.
8 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
9 207583544 Hex Flange Screw M8 X 35, Scotch Grip
10 250200008 Flat Washer With Teflon 8 mm
11 515176500 Washer
12 512060478 Rear Support, PTO
13 250000752 Torx Screw M8 X 1.25 X 25, Scotch Grip This part replaces 250000248.
14 234281474 Conical Spring Washer M8
15 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
16 512060712 FRONT SUPPORT PTO - Call your local BRP dealership
17 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
18 234281474 Conical Spring Washer M8
19 512060559 Rear Support, MAG
20 207582044 Hex. Flange Screw M8 X 20, Scotch Grip
21 234281474 Conical Spring Washer M8
22 512060469 Front Support, MAG
23 207582586 Hex. Flange Screw M8 X 25, Scotch Grip
24 234281474 Conical Spring Washer M8
25 Not Available As Spare Part - Synthetic Grease
26 512060729 Rubber Mount
27 512061507 Vibration Damper This part replaces 512060387.
28 512060448 Rubber Mount
29 207561644 Hex. Flange Screw M6 X 16, Scotch Grip
30 233261414 Hex. Flange Elastic Nut M6 x 1.0
31 207683044 Hex. Flange Screw M8 X 30
32 503183200 Yellow, Washer
33 234281474 Conical Spring Washer M8
34 250000796 Hex. Flange Screw M8 X 1.25 X 25 This part replaces 250000570.
35 512060627 Stopper
36 512060576 Stopper Support
37 207562544 Hex. Flange Screw M6 X 25
38 509000793 FORMED HOSE OUTPUT TB - Call your local BRP dealership
39 219704408 Tubing 16 Mm 1000Mm Long
40 293650172 Tridon Gear Clamp
41 293650047 Crimp Clamp, 15.3-706R
42 293750008 Tie Wrap 368 mm
43 512060298 Solenoid Support
44 207652044 Hex.Flange Screw M5 X 20
45 250000958 Panel Nut M5 X 0.8 This part replaces 250000079.
47 512060692 Manifold
48 219704410 Polyurethane Hose 10000Mm Long
49 219704410 Polyurethane Hose 10000Mm Long
50 293650234 Crimp Clamp
51 270600005 Solenoid Valve This part replaces 512060950.
52 219704352 Was 420660574 Pressure Hose 280 mm
53 219704399 Was 409901700 Tubing (9 mm)
54 293750001 Tie Wrap 94 mm
55 293710068 T-Fitting
56 219704352 Was 420660574 Pressure Hose 280 mm
57 219704352 Was 420660574 Pressure Hose 280 mm
58 512060827 Hose Support
59 512060934 Spring
60 512060769 Manifold Support
61 210251180 HEX. FLANGED SCREW M5 X 11 - Call your local BRP dealership
62 512060695 LH Formed Hose
63 512060694 RH Formed Hose
64 293650214 Norma Spring Clamp
65 293650047 Crimp Clamp, 15.3-706R
66 293750001 Tie Wrap 94 mm
67 512060633 Throttle Cable
68 293850117 Rubber Strap
69 Not Available As Spare Part - Loctite 8151 (Dielectric Grease), 75ml
70 414274500 Circlip
71 219704399 Was 409901700 Tubing (9 mm)
73 414440800 Socket Set Screw M8 X 10
74 512060860 Lower Housing
76 515175232 Male Terminal
77 732601143 Flange Screw
79 710000568 Housing
80 512061126 Ignition Cable, 177mm long This part replaces 512060094.
81 710000992 Clip
82 250000253 Hex. Flange Screw M6 X 1.0 X 30
83 293100003 Nut Welded, M6
84 512060888 Ignition Coils Support
85 241151640 Hex. Flange Screw K50 X 2.24 X 16
86 512060780 Calibrated Module
87 512060858 Calibrated Module Support
88 250200040 Flat Washer
89 250000297 Truss Head Torx Screw K50 X 20
90 219704709 NEEDS DESCRIPTION This part replaces 219704409.
91 414814100 Male Connector
92 415130430 Spark Plug NGK PZFR6F This part replaces 415129432.
93 512060993 Clamp
