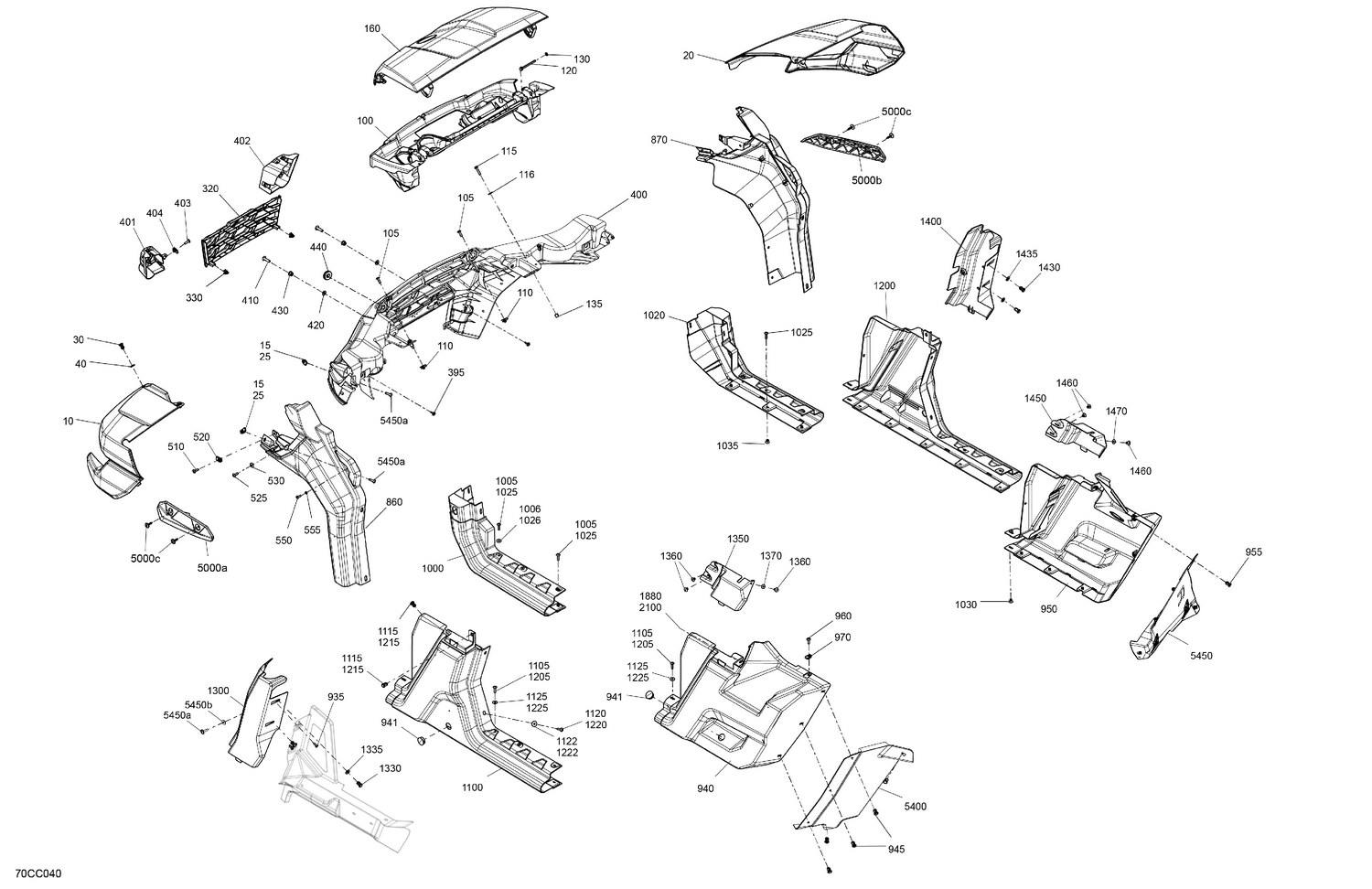

07- Body - System
Parts (82)
| Ref | Part Number | Description |
|---|---|---|
| 15 | 250100198 | Panel Nut M6 X 1.0 |
| 25 | 250100198 | Panel Nut M6 X 1.0 |
| 30 | 293150230 | Tuflok Plastic Rivet |
| 40 | 503192494 | Washer |
| 100 | 705013766 | Multi Purpose Support |
| 105 | 250000722 | Torx Screw M6 X 20 |
| 110 | 250100198 | Panel Nut M6 X 1.0 |
| 115 | 210263050 | Hex. Flange Screw M6 X 30 |
| 116 | 234062670 | Stainless Steel Flat Washer |
| 120 | 207667554 | Hex. Flange Screw M6 X 75 |
| 130 | 732610072 | Push Nut |
| 135 | 293900125 | Bushing |
| 320 | 705013590 | Grille This part replaces 705017567. |
| 330 | 517306478 | Clip |
| 395 | 250000725 | Screw M4 X 16 |
| 400 | 705014165 | Deep Black, Front Fascia |
| 401 | 705012285 | LH Flasher Cap |
| 402 | 705012286 | RH Flasher Cap |
| 403 | 250000722 | Torx Screw M6 X 20 |
| 404 | 250100198 | Panel Nut M6 X 1.0 |
| 410 | 250000886 | Torx Screw M8 X 30 |
| 420 | 503192494 | Washer |
| 430 | 233281414 | Hex. Flange Elastic Nut M8 |
| 440 | 705010718 | Grommet |
| 510 | 250000722 | Torx Screw M6 X 20 |
| 520 | 250100198 | Panel Nut M6 X 1.0 |
| 525 | 250000722 | Torx Screw M6 X 20 |
| 530 | 234062670 | Stainless Steel Flat Washer |
| 550 | 250000720 | Torx Screw K50 X 16 |
| 555 | 234051670 | Flat Washer M5 |
| 710 | 250000807 | Torx Truss Screw M6 X 25 |
| 860 | 705008152 | LH Front Lateral Panel |
| 870 | 705008153 | RH Front Lateral Panel |
| 935 | 250000720 | Torx Screw K50 X 16 |
| 940 | 715007134 | LH Body Panel Kit |
| 940 | 715007497 | LH Rear Body Panel Ass'y |
| 941 | 414916600 | Black, Nylon Cap |
| 945 | 293150230 | Tuflok Plastic Rivet |
| 950 | 715007136 | RH Body Panel Kit |
| 950 | 715007498 | RH Rear Body Panel Ass'y |
| 955 | 293150230 | Tuflok Plastic Rivet |
| 960 | 250000722 | Torx Screw M6 X 20 |
| 970 | 250100198 | Panel Nut M6 X 1.0 |
| 1000 | 705019037 | Deep Black, LH Central Panel This part replaces 705017552. |
| 1005 | 250000807 | Torx Truss Screw M6 X 25 |
| 1006 | 234062670 | Stainless Steel Flat Washer |
| 1020 | 705019038 | Deep Black, RH Central Panel This part replaces 705017553. |
| 1025 | 250000807 | Torx Truss Screw M6 X 25 |
| 1026 | 234062670 | Stainless Steel Flat Washer |
| 1030 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1035 | 293150108 | Pop Rivet 3/16” This part replaces 293150108. |
| 1100 | 705015817 | LH Central Body Panel |
| 1105 | 250000807 | Torx Truss Screw M6 X 25 |
| 1115 | 293150230 | Tuflok Plastic Rivet |
| 1120 | 250000807 | Torx Truss Screw M6 X 25 |
| 1122 | 250200162 | Flat Washer M6.6 X 22 |
| 1125 | 234062670 | Stainless Steel Flat Washer |
| 1200 | 705015818 | RH Central Body Panel |
| 1205 | 250000807 | Torx Truss Screw M6 X 25 |
| 1215 | 293150230 | Tuflok Plastic Rivet |
| 1220 | 250000807 | Torx Truss Screw M6 X 25 |
| 1222 | 250200162 | Flat Washer M6.6 X 22 |
| 1225 | 234062670 | Stainless Steel Flat Washer |
| 1300 | 715006542 | LH Rear Cage Cover Kit |
| 1330 | 293150230 | Tuflok Plastic Rivet |
| 1335 | 503192494 | Washer |
| 1350 | 705014748 | Deep Black, LH Rear Body Panel |
| 1360 | 293150104 | Pop Rivet 3/16" |
| 1370 | 250200025 | Washer M5 |
| 1400 | 715006543 | RH Rear Cage Cover Kit |
| 1430 | 293150230 | Tuflok Plastic Rivet |
| 1435 | 503192494 | Washer |
| 1450 | 705014749 | Deep Black, RH Rear Body Panel |
| 1460 | 293150104 | Pop Rivet 3/16" |
| 1470 | 250200025 | Washer M5 |
| 1880 | 293150230 | Tuflok Plastic Rivet |
| 2100 | 293150230 | Tuflok Plastic Rivet |
| 5000a | 705015795 | LH Front Deflector |
| 5000b | 705015796 | RH Front Deflector |
| 5000c | 250000907 | Torx Screw Truss Head PT.K50 X 25 |
| 5400 | 705016336 | LH Rear Deflector |
| 5450 | 705016337 | RH Rear Deflector |
