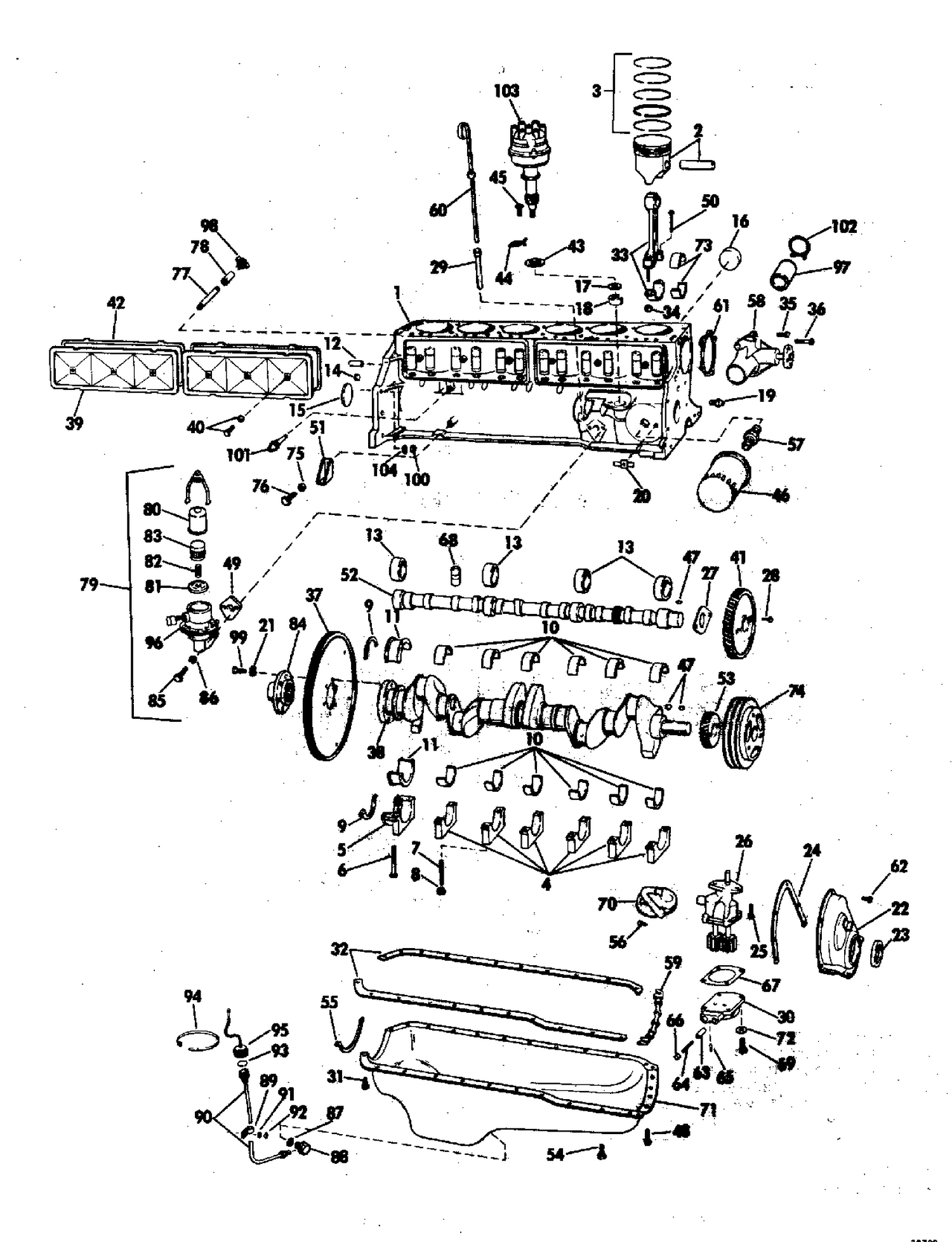

| Ref | Part Number | Description |
|---|
| 1 |
6259293 |
CRANKCASE ASSEMBLY |
| 2 |
6270033 |
PISTON & PIN, Standard |
| 2 |
6270034 |
PISTON & PIN, .001" O.S. |
| 2 |
6270036 |
PISTON & PIN, .030" O.S. |
| 3 |
0326400 |
PISTON RING SET, Std |
| 3 |
0328503 |
PISTON RING SET, .030" O.S. |
| 4 |
3970194 |
CAP, Crankshaft bearing |
| 5 |
3928975 |
CAP, Crankshaft bearing |
| 6 |
3872781 |
BOLT, 7/16 x 3-9/32 |
| 7 |
3852870 |
RING, Shim, 0.104 in. |
| 8 |
9422297 |
NUT, 3/8-16 |
| 9 |
3958001 |
OIL SEAL SET, C'shart rear brg. |
| 10 |
3792553 |
BEARING ASSY.,Frong and intermediate,std |
| 10 |
3792554 |
BEARING ASSY.,Frong and intermediate,.001"us |
| 10 |
3792555 |
BRG ASSY, Exc rear, .002" U.S. |
| 10 |
3792556 |
BRG ASSY, Exc rear, .010" U.S. |
| 10 |
3792557 |
BRG ASSY, Exc rear, .020" U.S. |
| 11 |
3792558 |
BEARING ASSY.,Rear,std. |
| 11 |
3792559 |
BEARING ASSY.,Rear,.001"u.s. |
| 11 |
3792560 |
BRG ASSY, Rear, .002" U.S. |
| 11 |
3792561 |
BRG ASSY, Rear, .010" U.S. |
| 11 |
3792562 |
BRG ASSY, Rear, .020" u.s. |
| 12 |
0585927 |
DOWEL PIN |
| 13 |
3750882 |
BEARING, Camshaft |
| 14 |
0444782 |
PLUG, 3/8 |
| 15 |
3994255 |
PLUG, Camshaft brg hole |
| 16 |
0311376 |
CORE PLUG, Side |
| 16 |
0311377 |
CORE PLUG, Rear |
| 17 |
3792285 |
THRUST WAHSER |
| 18 |
3792286 |
BEARING, Shaft pilot |
| 19 |
3875950 |
NOZZEL, Timing gear oil |
| 20 |
5575416 |
BY-PASS VALVE,Oil filter |
| 21 |
0136857 |
L'WASHER,Flywheel |
| 22 |
3996616 |
COVER ASSY, Crankshaft, front |
| 23 |
3980267 |
SEAL |
| 24 |
3923472 |
GASKET, Front crankcase cover |
| 25 |
9424877 |
BOLT, Hex |
| 26 |
3832449 |
PUMP ASSEMBLY |
| 27 |
3790531 |
BEARING, Thrust unit |
| 28 |
3817006 |
BOLT, Camshaft sprocket |
| 29 |
3828073 |
TUBE, Oil level gage |
| 30 |
3788457 |
COVER, Oil pump |
| 31 |
3810076 |
SCREW, Pan attaching |
| 32 |
3930962 |
GASKET UNIT, Sides |
| 33 |
3788435 |
CONNECTING ROD & CAP ASSY |
| 34 |
3815280 |
NUT, Conn rod, 11/16-24 |
| 35 |
0443899 |
BOLT, Camshaft sprocket |
| 36 |
0180063 |
BOLT, Hex, 5/16-18 x 1-1/2" |
| 37 |
3973452 |
FLYWHEEL ASSEMBLY |
| 38 |
3876840 |
CRANKSHAFT ASSEMBLY |
| 39 |
3788496 |
COVER, Push rod |
| 40 |
3814350 |
BOLT & SEAL ASSEMBLY |
| 41 |
3882893 |
GEAR CAMSHAFT TIMING |
| 42 |
3920938 |
GASKET, Push rod cover |
| 43 |
6256636 |
GASKET, Distributor |
| 44 |
3998172 |
CLAMP, Distributor |
| 45 |
0186678 |
BOLT, 3/8-16 x 1 inch |
| 46 |
OIL |
FILTER (AC TYPE PF-25 OF PUROLATOR PER-49 ) |
| 47 |
0106751 |
KEY, Wdf, 3/16" x 3/4" |
| 48 |
3770309 |
SCREW & L'WASHER,1/4-20x5/8" |
| 49 |
3705042 |
GASKET, Fuel pump mounting |
| 50 |
3892670 |
BOLT, Connecting rod |
| 51 |
3941029 |
BRACKET, Starter motor |
| 52 |
3891589 |
CAMSHAFT ASSEMBLY |
| 53 |
3882892 |
GEAR, Crankshaft |
| 54 |
0180075 |
SCREW |
| 55 |
3921973 |
SEAL, Real |
| 56 |
0180016 |
SCREW |
| 57 |
3853870 |
CONNECTOR, Oil filter |
| 58 |
3858340 |
Pump Ay This part replaces 0980512. |
| 59 |
3923440 |
SEAL, Front |
| 60 |
3886082 |
OIL LEVEL GAUGE |
| 61 |
3788478 |
GASKET, Water pump |
| 62 |
3817006 |
BOLT, Camshaft sprocket |
| 63 |
3829433 |
VALVE, Pressure regulator |
| 64 |
3814903 |
SPRING, Regulator valve |
| 65 |
0103677 |
PIN, Pressuer regulator |
| 66 |
3930824 |
PLUG, Regulator hole |
| 67 |
3789970 |
GASKET, Cover |
| 68 |
5232450 |
VALVE FILTER |
| 69 |
0133043 |
BOLT, Cover to pump |
| 70 |
3859941 |
SUCTION TUBE & SCREEN ASSY |
| 71 |
3988790 |
OIL PAN |
| 72 |
9421423 |
LOCKWASHER, Switch attach |
| 73 |
3715040 |
ROD BEARING ,Std, -235 hp |
| 73 |
3715041 |
ROD BEARING, .001" U.S. |
| 73 |
3715046 |
ROD BEARING, .002" U.S. |
| 73 |
3715047 |
ROD BEARING, .010" U.S. |
| 73 |
3715048 |
ROD BEARING, .010" U.S. |
| 74 |
3896590 |
DAMPER ASSY, Torsional |
| 76 |
0306555 |
SCREW |
| 77 |
0311086 |
CONNECTOR, Pipe |
| 78 |
0907801 |
EXTENSION PIPE |
| 79 |
0982240 |
FUEL PUMP ASSEBMLY This part replaces 0380455. |
| 80 |
0315722 |
BOW,Fuel pump |
| 81 |
0315723 |
GASKET, Fuel pump |
| 82 |
0315724 |
SPRING, Filter element |
| 85 |
0306322 |
BOLT, Water pump |
| 88 |
0907848 |
ELBOW, Drain pan |
| 89 |
3852427 |
CLAMP, Fuel line to bracket This part replaces 0907852. |
| 90 |
0979891 |
OIL LINE ASSEMBLY |
| 91 |
0306407 |
LOCCKWASHER,Cover latch |
| 93 |
3852426 |
SEAL, Cap oil drain tube This part replaces 0907845. |
| 94 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet This part replaces 0315633. |
| 95 |
0980069 |
CAP & BEAD CHAIN ASSY |
| 96 |
0310924 |
CLAMP, Main cable to adapter |
| 97 |
0310936 |
CAP |
| 98 |
0379957 |
PETCHOCK ASSY, Water drain |
| 99 |
0908375 |
BOLT, Flywheel |
| 101 |
0379948 |
SCREW, Retainer to adapter |
| 102 |
0310903 |
CLAMP HOSE TO INT HSG |
| 103 |
0980156 |
DISBRIBUTOR ASSEMBLY |
| 0381047 |
0381047 |
REPAIR KIT, Pump |
