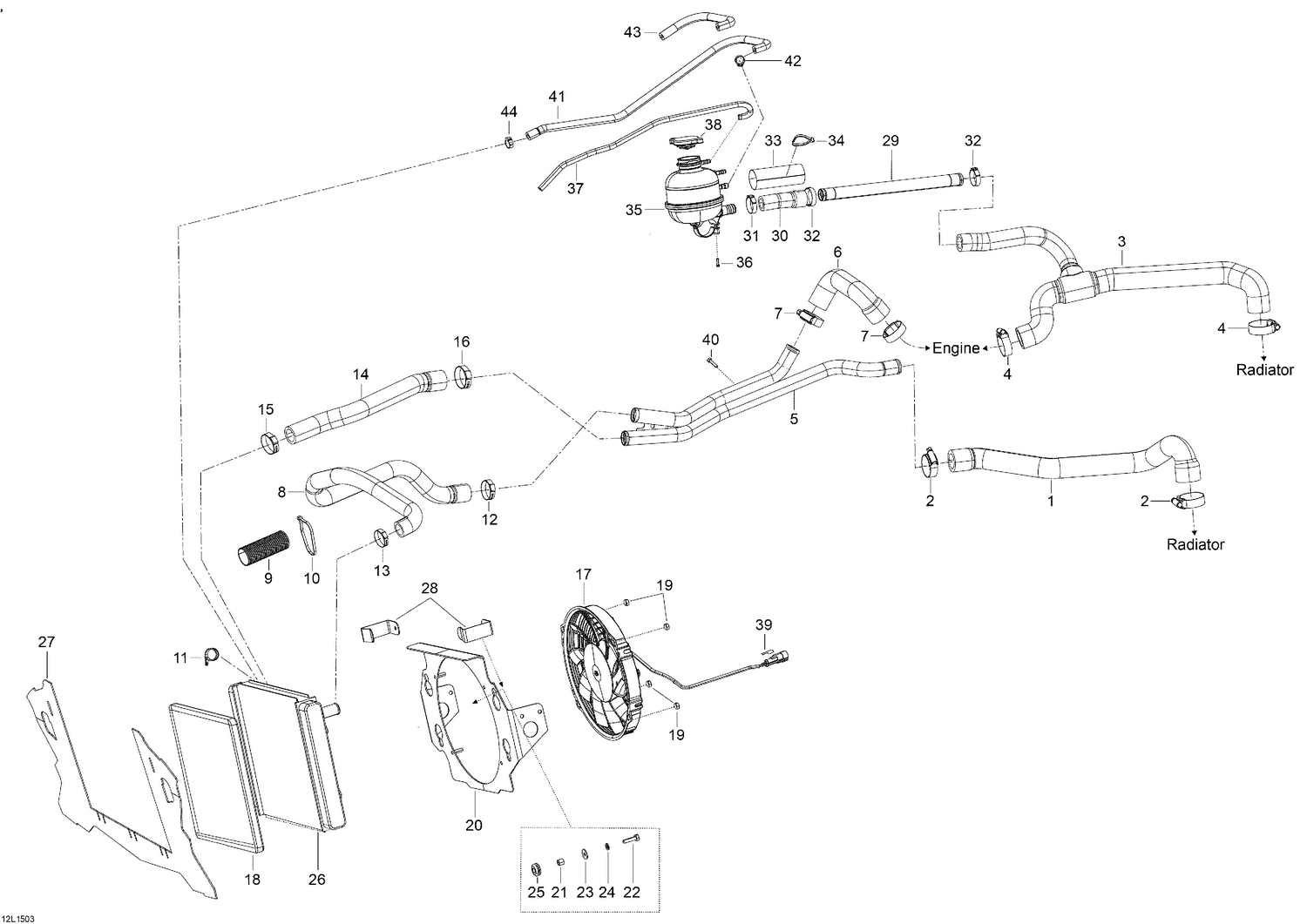

01- Cooling System
Parts (43)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 509000634 | Hose, Tunnel Radiator |
| 2 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 3 | 509000805 | HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership |
| 4 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 5 | 509000800 | Water Pipe |
| 6 | 509000932 | Engine Outlet Hose This part replaces 509000564. |
| 7 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 8 | 509001000 | Air Radiator Hose This part replaces 509000706. |
| 9 | 28036 | Tubing |
| 10 | 414115200 | Tie-Rap 180 mm |
| 11 | 605627008 | Clamp With Rubber |
| 12 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 13 | 293650099 | Crimp Clamp |
| 14 | 509000707 | HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership |
| 15 | 293650099 | Crimp Clamp |
| 16 | 509000443 | Aba Gear Clamp, 26-38 MM |
| 17 | 509000838 | Cooling Fan |
| 18 | 509000718 | D-Seal |
| 19 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 20 | 509000791 | Radiator Support |
| 21 | 605453745 | Bushing |
| 22 | 207162044 | Hex.Cap Screw M6 x 20 |
| 23 | 234062410 | Flat Washer 6 mm |
| 24 | 234161431 | Spring Washer |
| 25 | 709000582 | Grommet This part replaces 293720053. |
| 26 | 509000787 | Radiator |
| 27 | 509000784 | AIR DEFLECTOR LTS - Call your local BRP dealership |
| 28 | 509000703 | Deflector Clip |
| 29 | 509000644 | PIPE - Call your local BRP dealership |
| 30 | 509000698 | HOSE - Call your local BRP dealership |
| 31 | 509000442 | Crimp Clamp |
| 32 | 293650099 | Crimp Clamp |
| 33 | 707001349 | Protector Tube |
| 34 | 414115200 | Tie-Rap 180 mm |
| 35 | 509000368 | Coolant Tank |
| 36 | 241151640 | Hex. Flange Screw K50 x 16 |
| 37 | 276000048 | Hose |
| 38 | 509000180 | Radiator Pressure Cap |
| 39 | 710000992 | Clip |
| 40 | 207561634 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 41 | 509000750 | BREATHER HOSE - Call your local BRP dealership |
| 42 | 293650047 | Crimp Clamp, 15.3-706R |
| 43 | 409901800 | Insulating Tubing |
