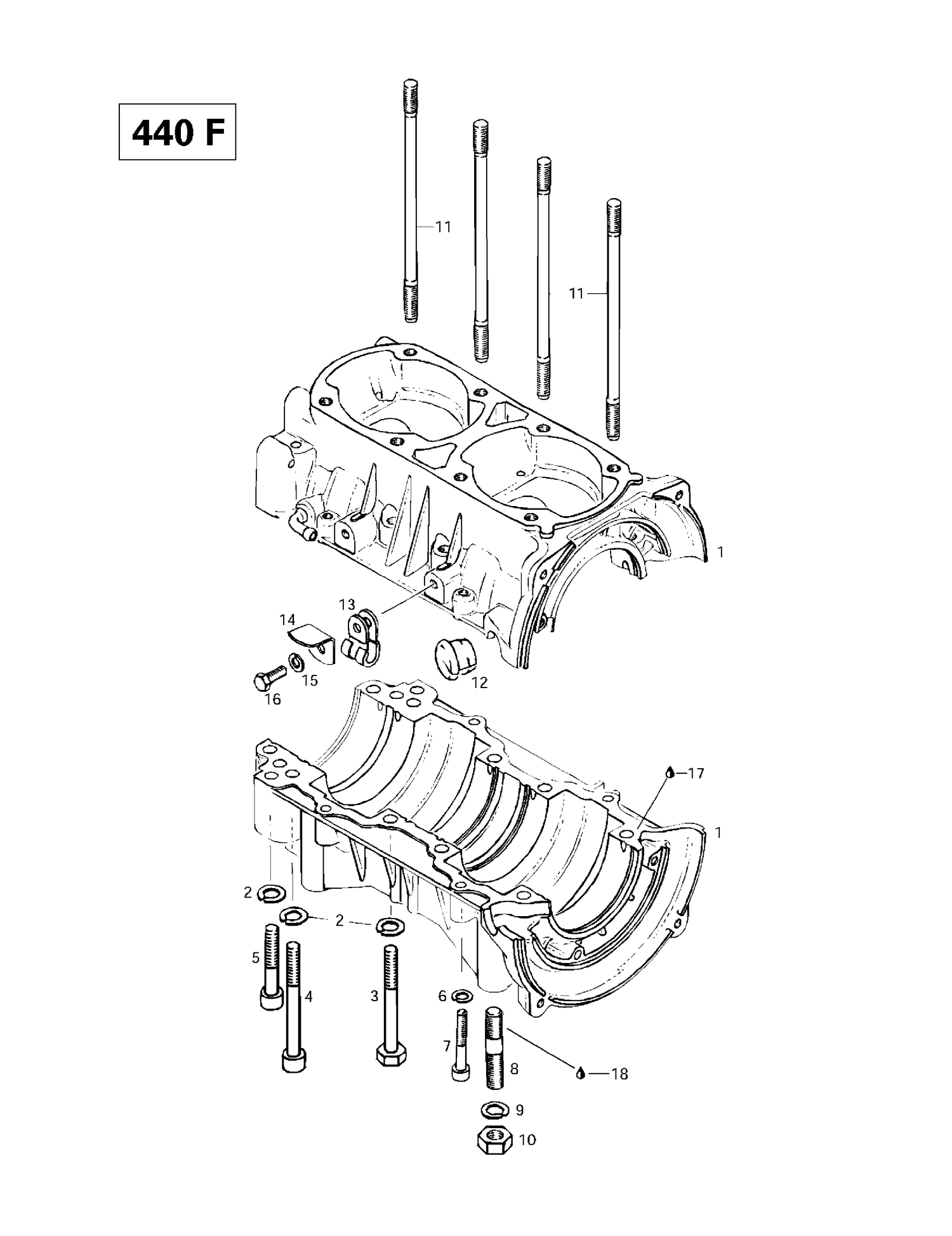

| Ref | Part Number | Description |
|---|
| 2 |
420945832 |
Washer-Lock Din.128 This part replaces 420945752. |
| 3 |
420841201 |
Hex. Screw M8 X 70 |
| 4 |
420841831 |
ALLEN SCREW M8 X 75 - Call your local BRP dealership |
| 5 |
420841566 |
ALLEN SCREW M8 X 50 - Call your local BRP dealership |
| 6 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 7 |
420241816 |
SOCKET HEAD SCREW M6 X 40 - Call your local BRP dealership |
| 8 |
420840010 |
Stud M10 x 17 |
| 9 |
420945753 |
Lock Washer |
| 10 |
232006414 |
Hex. Nut M10 X 1.5 This part replaces 228001045. |
| 11 |
420841149 |
STUD M8 X 167 - Call your local BRP dealership |
| 12 |
420960288 |
Cable Crommet |
| 13 |
414176000 |
Open Clamp |
| 14 |
420953310 |
Wire Support |
| 15 |
420945751 |
WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 16 |
207161644 |
Hex. Screw M6 X 16 This part replaces 222061665. |
| 17 |
413707100 |
Sealant, 100 gr |
