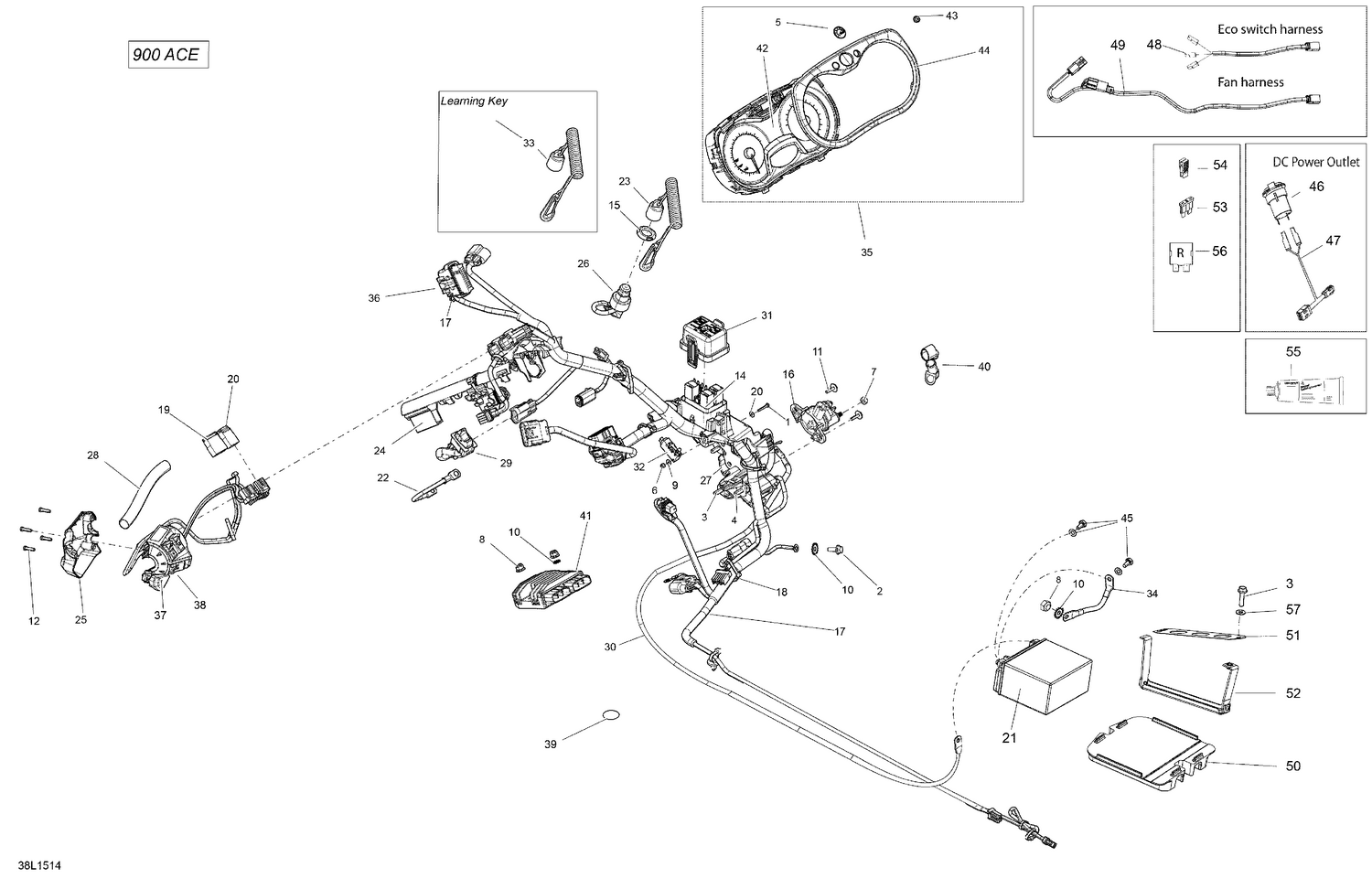

| Ref | Part Number | Description |
|---|
| 1 |
207132044 |
Hex Screw M3 X 20 |
| 2 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 3 |
210262040 |
Hex. Flanged Screw M6 X 20 |
| 4 |
210262550 |
Hex. Flanged Forming Screw M6 X 25 This part replaces 210262580. |
| 5 |
516006224 |
BRP Logo, 20MM x 2MM This part replaces 219902677. |
| 6 |
232531423 |
Elastic Stop Nut M3 |
| 7 |
232561414 |
Elastic Stop Nut M6 |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 9 |
234032600 |
Flat Washer M3, Stainless |
| 10 |
234461608 |
External Serrated Lock Washer 6 mm |
| 11 |
250000725 |
Screw M4 X 16 This part replaces 250000113. |
| 12 |
250000671 |
Torx Screw |
| 13 |
250200041 |
Lock Washer Serrated M6 |
| 14 |
278002824 |
Case Ass'y with seal, 24 positions |
| 15 |
278002963 |
Safety Nut (DESS Switch) |
| 16 |
278003012 |
Starter Relay |
| 17 |
293750001 |
Tie-Rap 94 mm |
| 18 |
414115200 |
Tie-Rap 180 mm |
| 19 |
515175662 |
Male Terminal Housing, 6 Circuits |
| 20 |
515175846 |
Male Terminal Housing, 4 Circuits |
| 21 |
415129898 |
Battery YUASA YTX20HL This part replaces 296000295. |
| 22 |
515177014 |
Ground Wire |
| 23 |
515178284 |
Dess. This part replaces 515178002. |
| 24 |
515177134 |
Connector Plate |
| 25 |
515177147 |
Housing Plate |
| 26 |
515177249 |
DESS Switch |
| 27 |
515177347 |
Plate |
| 28 |
415129879 |
Corrugated Tube |
| 29 |
515177569 |
ECO rocker switch |
| 30 |
515177427 |
Battery Wire |
| 31 |
515177671 |
Fuse Box Cover |
| 32 |
515177460 |
Switch Ass'y |
| 33 |
515178007 |
Key (Learning) |
| 34 |
515176780 |
Ground Wire |
| 35 |
515177842 |
Speedometer |
| 36 |
515177796 |
Frame Harness |
| 37 |
515176088 |
Start/RER Button |
| 38 |
515178197 |
LH Switch Housing This part replaces 515177677. |
| 39 |
518325560 |
Adhesive Patch |
| 40 |
570151000 |
Protector Cap |
| 41 |
710010539 |
Voltage Regulator This part replaces 515177325. |
| 42 |
415129349 |
Lens |
| 43 |
415129355 |
Speedometer Button |
| 44 |
415129370 |
Gauge Ring |
| 45 |
Not |
Available As Spare Part - Battery Fastener Kit |
| 46 |
710001248 |
Outlet dc |
| 47 |
515177400 |
Harness |
| 48 |
515179615 |
NEEDS DESCRIPTION This part replaces 515177568. |
| 49 |
515177646 |
Harness fan |
| 50 |
513033732 |
Battery support |
| 51 |
518327281 |
Battery strap |
| 52 |
518327182 |
Battery strap |
| 53 |
710000742 |
Little Fuse, 5 Ampere |
| 53 |
710000744 |
Little Fuse, 10 Ampere |
| 53 |
710000745 |
Little Fuse, 15 Ampere |
| 53 |
710000746 |
Little Fuse, 20 Ampere |
| 53 |
710000747 |
Little Fuse, 30 Amperes |
| 54 |
515175811 |
FUSE TOOL - Call your local BRP dealership |
| 55 |
619600021 |
Loctite 8104 (Dielectric Grease), 75 ml |
| 56 |
715900824 |
Relay This part replaces 710001778. |
