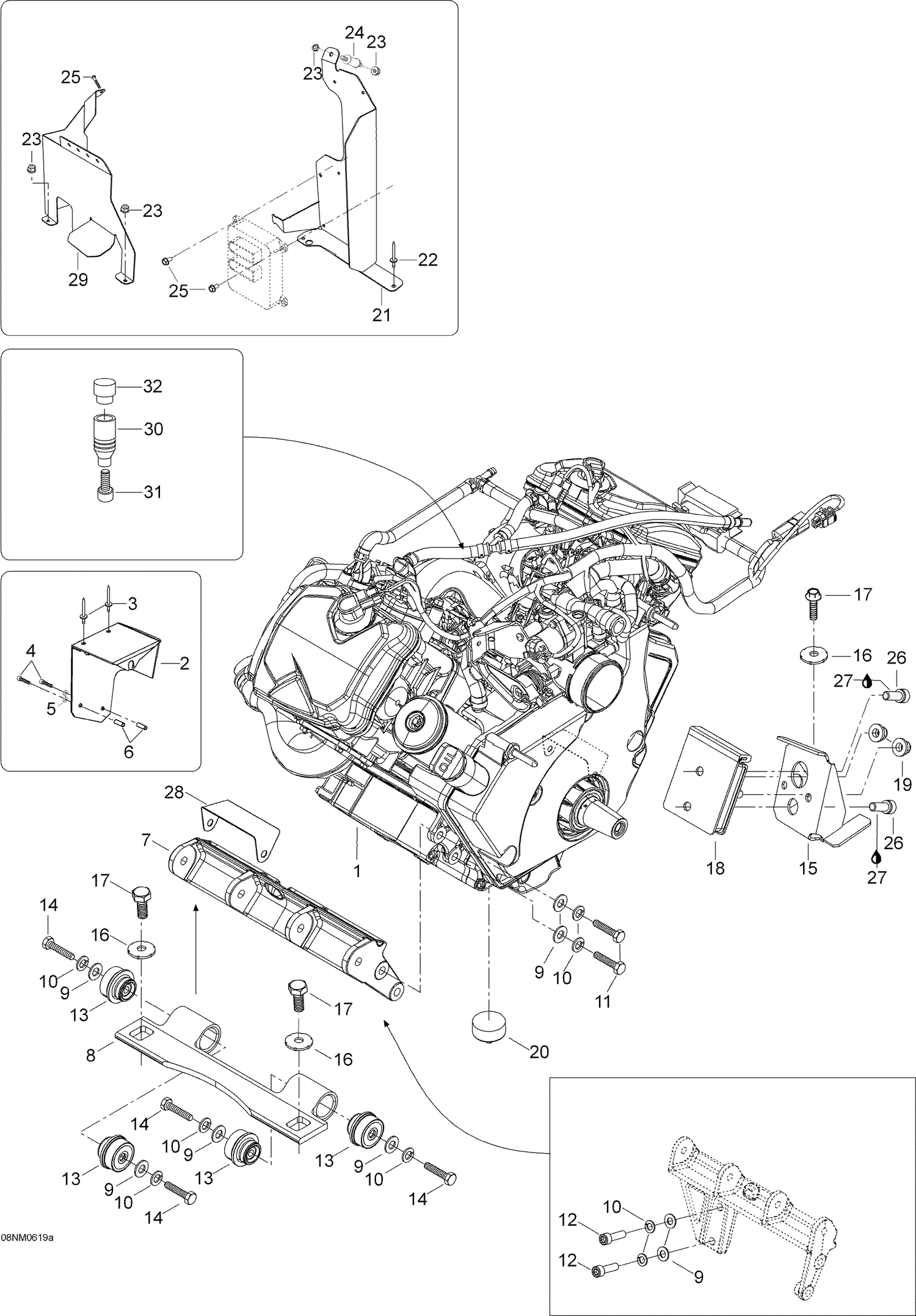

| Ref | Part Number | Description |
|---|
| 1 |
Not |
Available As Spare Part - Engine 1004 |
| 2 |
605353770 |
Heat Protector |
| 3 |
36108 |
Rivet This part replaces M36108. |
| 4 |
605640003 |
SOCKET HEAD SCREW M4 X 40 - Call your local BRP dealership |
| 5 |
20037 |
Washer This part replaces M20037. |
| 6 |
605453780 |
SLEEVE - Call your local BRP dealership |
| 7 |
605250905 |
ENGINE MOUNT. PLATE - Call your local BRP dealership |
| 8 |
512059425 |
FRONT ENGINE SUPPORT - Call your local BRP dealership |
| 9 |
234001410 |
Flat Washer 10 mm |
| 10 |
234100602 |
WASHER-LOCK SPRING DIN.128A-A2 - Call your local BRP dealership |
| 11 |
205003544 |
Socket Screw M10 X 35 |
| 12 |
M40352 |
Hex. Cap Screw |
| 13 |
512059691 |
Rubber Mount |
| 14 |
207103044 |
Hex. Screw M10 X 30 |
| 15 |
605350835 |
ENGINE REAR SUPPORT - Call your local BRP dealership |
| 16 |
512056700 |
Lock Washer |
| 17 |
40335 |
Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335. |
| 18 |
512059316 |
Rubber Mount |
| 19 |
33074 |
NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074. |
| 20 |
512059710 |
STOPPER - Call your local BRP dealership |
| 21 |
605250844 |
MODULE SUPPORT - Call your local BRP dealership |
| 22 |
36108 |
Rivet This part replaces M36083. |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces M33200. |
| 24 |
M12419 |
RUBBER MOUNT - Call your local BRP dealership |
| 25 |
M40327 |
SCREW-M6X12 - Call your local BRP dealership |
| 26 |
M40053 |
Screw |
| 27 |
293800060 |
Loctite 243, 10 ml |
| 28 |
514053620 |
Front Deflector |
| 29 |
605351330 |
Temperature Shield |
| 30 |
605350745 |
SUPPORT - Call your local BRP dealership |
| 31 |
M40053 |
Screw |
