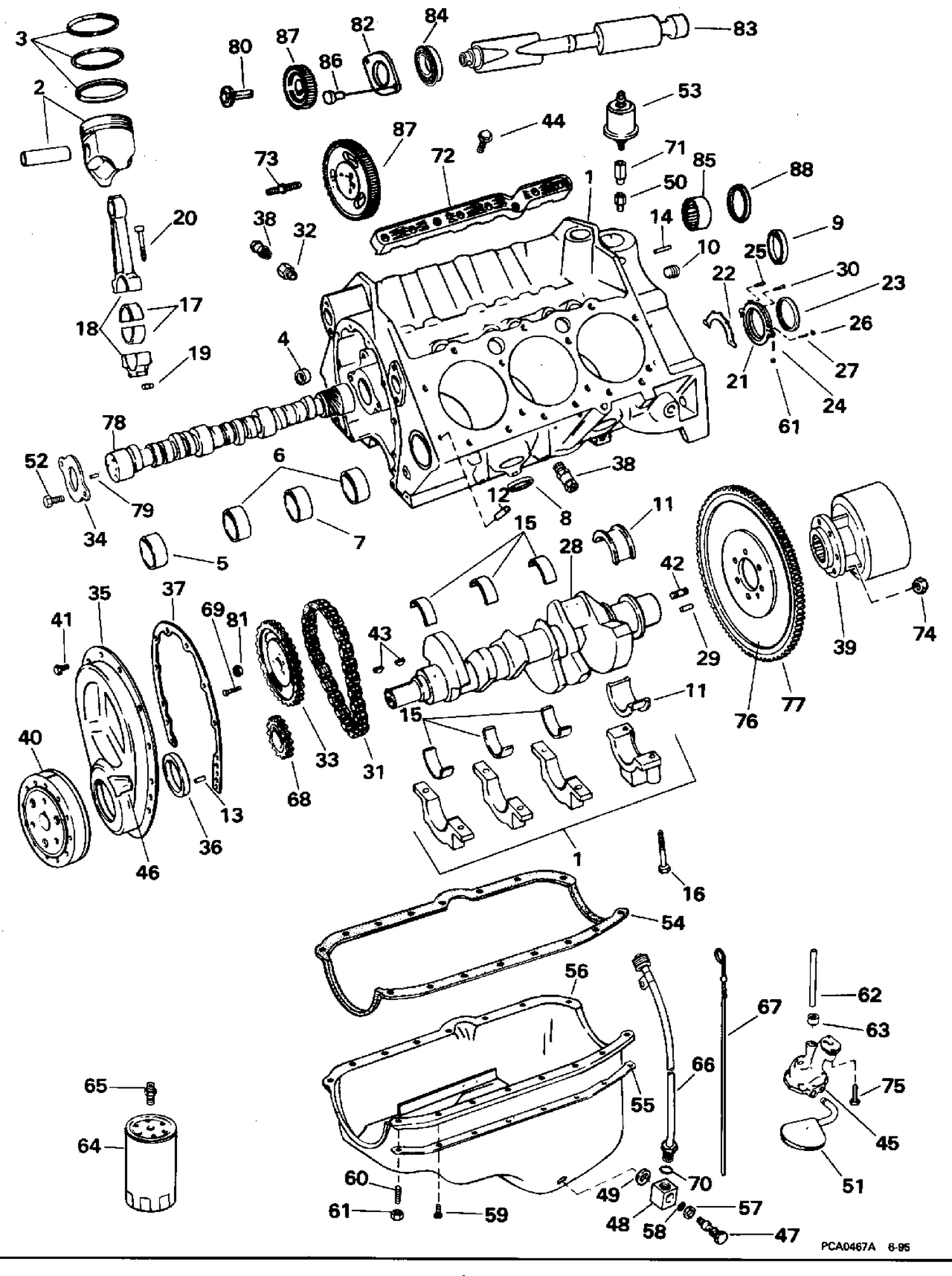

CRANKCASE & OIL PAN

CRANKCASE & OIL PAN

Parts (100)

RefPart NumberDescription
1 3854321 PARTIAL ENGINE
2 3850382 PISTON & PIN, 0.030 in. O.S.
2 3850384 PISTON & PIN, Standard
3 3854957 PISTON RING SET, Standard
3 3854958 PISTON RING SET, 0.030 in. O.S.
4 3853208 PLUG, Oil gallery, front
5 3853210 BEARING, Camshaft, #1
6 3853211 BEARING, Camshaft, #2, #4
7 3853212 BEARING, Camshaft, #3
8 0311376 CORE PLUG, Side This part replaces 3852100.
9 3853209 PLUG, Balancer shaft
10 3852471 PLUG
11 3853221 BEARING ASSY, Rear, standard
11 3853222 BEARING ASSY, 0.001 in. U.S.
11 3853223 BEARING ASSY, 0.002 in. U.S.
11 3853224 BEARING ASSY, 0.010 in. U.S.
11 3853225 BEARING ASSY, 0.020 in. U.S.
12 3853114 DOWEL PIN, Cylinder head
13 3855972 PIN, Camshaft gear This part replaces 3853213.
14 3853113 DOWEL PIN
15 3853215 BEARING, #1, 2, 3 & 4, standard
15 3853218 BEARING, #1, 2, 3 & 4, 0.010 in. U/S
15 3853220 BEARING, #1, 2, 3 & 4, 0.020 in. U/S
15 3853381 BEARING, #1, 2, 3 & 4, 0.001 in. U/S
15 3853382 BEARING, #1, 2, 3 & 4, 0.002 in. U/S
16 3853214 BOLT, Crankshaft, bearing cap
17 3853150 BEARING, Rod, 0.001 in. U.S.
17 3853151 BEARING, Rod, 0.002 in.
17 3853153 BEARING, Rod, 0.020 in.
17 3854955 BEARING, Rod, standard
17 3856117 BEARING, Rod, 0.010 in. U/S This part replaces 3853152.
18 0987730 CONNECTING ROD ASSY. This part replaces 3854173.
19 3853148 NUT, Connecting rod
20 3853179 BOLT, Connecting rod
21 3855820 RETAINER, Crankshaft seal This part replaces 3853201.
22 3852656 GASKET, Rear seal retainer
23 3852657 OIL SEAL, Crankshaft, rear
24 3853202 STUD, Oil pan
25 3853204 BOLT, Seal retainer
26 3853206 NUT, Rear seal retainer
27 3853205 STUD, Rear seal retainer
28 3853180 CRANKSHAFT
29 3853200 PIN, Flywheel
30 3853203 BOLT, Seal retainer
31 3852685 CHAIN, Camshaft
32 3852489 ADAPTER, Water drain, stbd.
33 3854319 SCREW, Module
34 3854329 RETAINER, Camshaft
35 3854327 COVER, C'case front end
36 3853341 SEAL, Front cover
37 3854324 GASKET, Front cover
38 3854494 PETCOCK, Water drain
39 3853917 COUPLER ASSY.
40 3854326 DAMPER ASSY.
41 3852441 SCREW & LOCK WASHER
42 3853274 STUD, Coupler
43 3853648 KEY, Crankshaft
44 3850376 BOLT, Valve lifter guide
45 3856125 OIL PUMP ASSY. This part replaces 3854950.
46 3853195 POINTER, Timing
47 3852694 RETAINER, Oil drain
48 3855112 FITTING, Oil drain
49 3851981 GASKET, Fitting to oil pan This part replaces 3853469.
50 3855776 ADAPTER, Oil sender This part replaces 3852968.
51 3854951 PICKUP SCREEN
52 3854323 SCREW, Camshaft retainer
53 3853800 OIL PRESSURE SENDER
54 3852655 GASKET, Oil pan
55 3853177 REINFORCEMENT, Port
55 3853178 REINFORCEMENT, Starboard
56 3853841 OIL PAN
58 3853674 O-RING, Oil drain
59 3852595 BOLT, Fuel rail
60 3853202 STUD, Oil pan
61 3853168 NUT, Camshaft sprocket stud
62 3853198 SHAFT, Distributor to oil pump
63 3853199 RETAINER, Distributor to oil pump
64 0502903 OIL FILTER This part replaces 0173834.
65 3853174 FITTING, Oil filter
66 3854179 TUBE ASSY., Oil drain
67 3850473 GAUGE, Oil level
68 3852690 SPROCKET, Crankshaft
69 3854330 BOLT, Camshaft sprocket
71 3852503 ELBOW, Oil pressure switch
72 3855825 GUIDE, Lifter This part replaces 3850377.
73 3854313 STUD, Camshaft sprocket
74 3853273 LOCKNUT, Coupler
75 3853234 BOLT, Pump to block
76 3854325 FLYWHEEL ASSY.
77 3853207 GEAR, Flywheel
78 3854328 CAMSHAFT
79 3855972 PIN, Camshaft gear This part replaces 3853213.
80 3854320 BOLT, Balancer gear
81 3853168 NUT, Camshaft sprocket stud
82 3854317 RETAINER, Balancer shaft
83 3854316 BALANCER SHAFT
84 3850519 BEARING, Balancer shaft
85 3854315 BEARING, Balancer shaft
86 3853172 BOLT, Balancer retainer
87 3854314 GEAR SET
