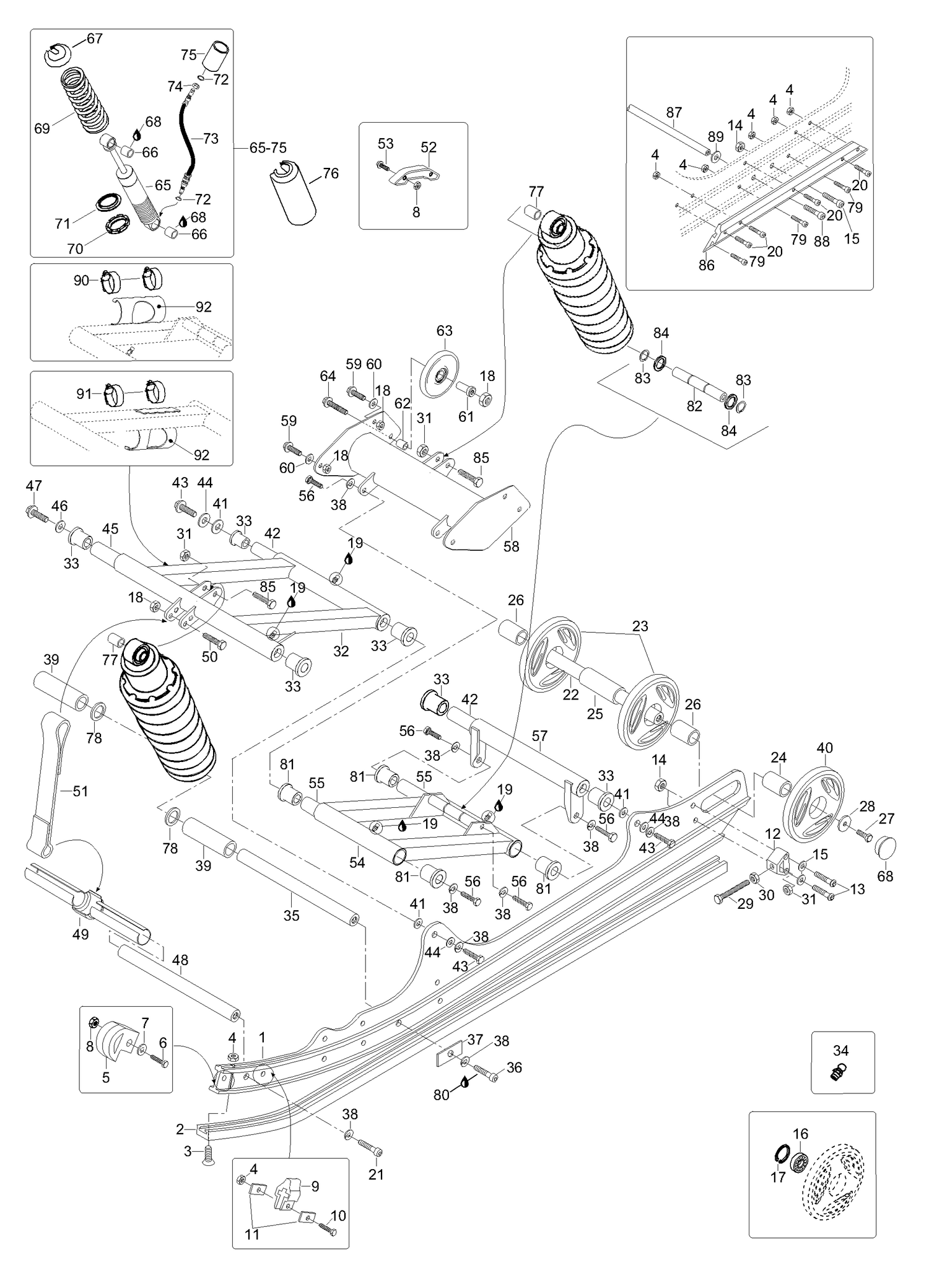

08- Rear Suspension

08- Rear Suspension

Parts (91)

RefPart NumberDescription
1 5247659 Runner
2 5346796 Runner shoe
3 40059 Allen screw M6 x 60
4 33010 Lock Nut M6 (1=10Pcs)
5 534578 Runner protector
6 40031 Screw M6 x 25
7 20003 Washer
8 233261414 Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200.
9 5442328 STOPPER-RUBBER - Call your local BRP dealership
10 40032 Screw M6 x 30
11 548470 Washer
12 5341633 Tensioner
13 40392 Allen screw M8 x 45
14 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
15 40289 Allen screw M8 x 25
16 293350115 Ball Bearing This part replaces 405404500.
17 371901700 CIRCLIP - Call your local BRP dealership
18 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
19 413711500 SYNTHETIC GREASE - Call your local BRP dealership
20 40276 Allen screw M6 x 25
21 40134 Screw Socket HD.DIN 912
22 5341511 Rear shaft
23 503189478 Wheel black
24 5441512 Spacer
25 5448027 Sleeve
26 5444099 Spacer
27 250000019 Screw M10 x 35
28 503183300 Washer, hardened
29 40239 Screw M10 x 100
30 232006414 Hex. Nut M10 This part replaces 33004.
31 33012 Nut elastic M10
32 5145588 Welded front arm
33 31083 Cushion
34 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
35 605348841 Shaft, shock
36 40134 Screw Socket HD.DIN 912 This part replaces 40536.
37 5446786 Support plate
38 20068 Lock washer
39 5346649 Sleeve - Call your local BRP dealership
40 503189478 Idler Wheel 165
41 20116 Washer
42 5346900 Shaft
43 40016 Screw M10 x 45
44 512056700 Lock washer
45 5346135 Shaft
46 20090 Spring Washer DIN 6796,keltapass,(1=10pc - Call your local BRP dealership
47 40243 Screw M12 x 60
48 5343471 Shaft
49 605349381 Retainer for stopper strap - Call your local BRP dealership
50 207084544 Hex. Screw M8 X 45 This part replaces 40008.
51 605449385 Belt, front
52 503192731 SLIDING PAD - Call your local BRP dealership This part replaces 5343191.
53 207764044 BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces 40064.
54 605349313 Rear arm weld.
55 5346865 SHAFT - Call your local BRP dealership
56 40014 Screw M10 x 40
57 5345535 Rear arm
58 605249273 Upper arm
59 40058 Locking screw M8 x 20
60 20005 WASHER M10 - Call your local BRP dealership
61 5446700 Sleeve
62 5446701 Sleeve
63 46027 Idler Wheel - Call your local BRP dealership
64 40376 Locking screw M8 x 80
65 23184 Shock, front arm
65 23185 Shock, rear arm
66 31094 Cushion
67 5346750 Spring stopper
68 320006 Loctite 641
69 25056 Spring, rear arm
69 25062 Spring, front arm
70 230048 Cam
71 230049 Spring guide
72 230112 O-ring
73 230111 Hose
75 230114 Reservoir
76 5346754 Shock protector
77 5446652 Bushing
78 31013 Shim Ring
79 40052 Allen sc. M6 x 20 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership
81 31068 Cushion
82 605449317 Shaft
83 293370056 Circlip 20X1.75 DIN471 This part replaces 31007.
84 31091 Shim ring 20x28x1 DIN 988(1=10pcs) - Call your local BRP dealership
85 40265 Screw M10 x 45
86 605349168 Runner reinforcement
87 605449400 Support shaft
88 40828 Allen screw M8 x 35
89 234081410 Flat Washer 8 mm This part replaces 20004.
90 605351401 Clamp
91 605351502 Clamp
