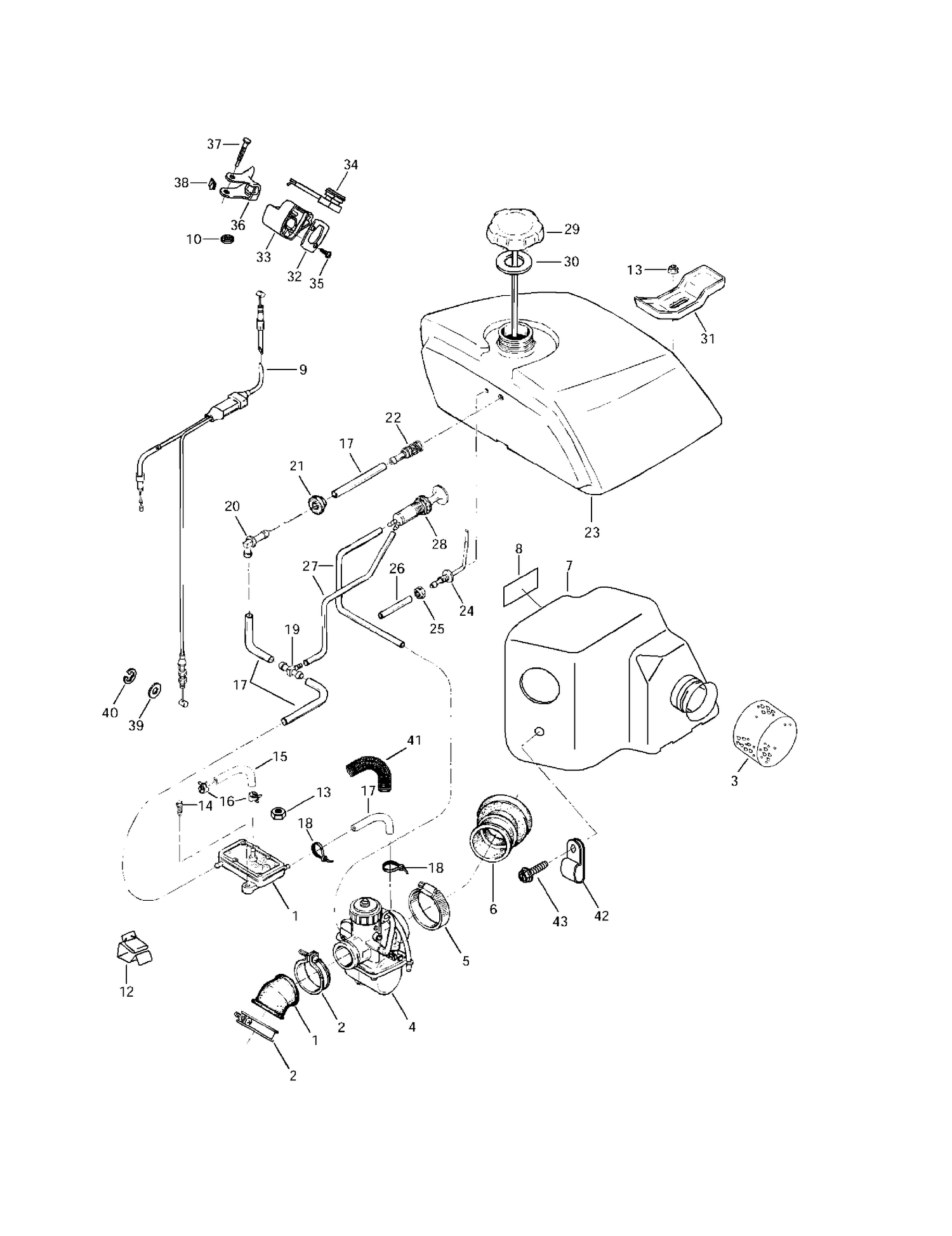

02- Fuel System
Parts (41)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 570025400 | Rubber Flanged |
| 2 | 408801900 | TRIDON GEAR CLAMP - Call your local BRP dealership |
| 3 | 414819900 | Air Filter |
| 4 | 403122300 | Carburetor VM 34-443 |
| 5 | 408802000 | Tridon Gear Clamp |
| 6 | 570136300 | Carburetor Adaptor |
| 7 | 572055500 | Air Silencer |
| 8 | 414161500 | Warning Decal |
| 9 | 414935600 | Throttle Cable & Housing |
| 10 | 371904000 | Circlip |
| 11 | 403800800 | FUEL PUMP DF44-226A - Call your local BRP dealership |
| 12 | 414227300 | Clip |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 14 | 365901100 | HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 15 | 219704549 | Hose This part replaces 219704439. |
| 16 | 414420700 | Spring Clamp |
| 17 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 18 | 414115200 | Tie-Rap 180 mm |
| 19 | 414222500 | T-fitting |
| 20 | 414580600 | Elbow Male Connector |
| 21 | 709200285 | Grommet This part replaces 570135100. |
| 22 | 414865700 | Fuel Filter |
| 23 | 571009000 | Fuel Tank |
| 24 | 513031100 | Vent Fitting |
| 25 | 396302200 | HEX. NUT 5/16-18 YIC - Call your local BRP dealership |
| 26 | 414296900 | Fuel Line 3.18 mm |
| 27 | 414296900 | Fuel Line 3.18 mm |
| 28 | 415060500 | Primer This part replaces 414479200. |
| 30 | 513033025 | Fuel Tank Cap This part replaces 570134800. |
| 31 | 517159500 | Bracket Seat-tank |
| 32 | 572066200 | Cap |
| 33 | 572065400 | Throttle Handle Housing |
| 34 | 410209400 | Kill Switch |
| 35 | 732603001 | Plastite Screw M3 x 16 |
| 36 | 572063500 | Throttle Handle |
| 37 | 414242700 | Pin |
| 38 | 510003100 | Stopper |
| 39 | 234081100 | Flat Washer 8 mm, Nylon This part replaces 414753300. |
| 40 | 414753500 | Circlip |
| 41 | 219704400 | Was 409901800 Tubing (13 mm) |
| 42 | 414351600 | CLIP - Call your local BRP dealership |
