| Ref | Part Number | Description |
|---|
| 7 |
0326952 |
NIPPLE, Primer |
| 11 |
0307267 |
SCREW |
| 12 |
5005440 |
THERMOSTAT This part replaces 0378065. |
| 13 |
0310058 |
GASKET, Thermostat |
| 14 |
0316132 |
GORMMET, Valve |
| 15 |
0335493 |
VALVE, Pressure relief This part replaces 0317653. |
| 16 |
0315626 |
SPRING, Valve |
| 17 |
0315538 |
GASKET, Cover to head |
| 18 |
0322898 |
COVER, Cylinder head |
| 19 |
0323359 |
SCREW, Head cover |
| 20 |
0386941 |
SPARK PLUB,Champion L77J4 |
| 20 |
0502180 |
SPARK PLUG, Champion QL77JC4 This part replaces 0387633. |
| 21 |
0376349 |
FIL, masse |
| 24 |
0308753 |
SCREW, Fram to c'case |
| 26 |
0325211 |
GASKET |
| 27 |
0437506 |
COVER & PLUG Assy, Water passage This part replaces 0325308. |
| 28 |
0335020 |
SCREW, Bracket to block This part replaces 0318139. |
| 29 |
0330151 |
CLAMP, Harness to oil tank boss This part replaces 0309322. |
| 30 |
0317714 |
FRAME, Crank case |
| 39 |
0316355 |
BUT, Carburetor mounting This part replaces 0315204. |
| 40 |
0908398 |
WASHER |
| 41 |
0329673 |
LEVER, Spark advance |
| 43 |
0329679 |
SLEEVE, Advance lever |
| 44 |
0439834 |
LEVER, Throttle control This part replaces 0329674. |
| 45 |
0130524 |
SCREW, Frame to c case |
| 48 |
0329702 |
THROTTLE CAM This part replaces 0319835. |
| 49 |
0326023 |
LIFT BRACKET |
| 51 |
0395544 |
SHIFT LEVER This part replaces 0391284. |
| 52 |
0307920 |
SCREW |
| 54 |
0329677 |
SCREW, Roller |
| 58 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz |
| 59 |
0324812 |
SCREW, Exh. hsg. to powerhead |
| 60 |
0326644 |
LEVER, Shift rod |
| 61 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313700. |
| 62 |
0395448 |
BALL & SOCKET ASSY This part replaces 0313703. |
| 63 |
0335359 |
GASKET, Cylinder head This part replaces 0327795. |
| 64 |
0325603 |
CYLINDER HEAD |
| 65 |
0312708 |
BUSHING |
| 66 |
0329682 |
ROD, Lever to cam |
| 69 |
0432572 |
ROLLER & SLEEVE ASSY This part replaces 0329676. |
| 70 |
0324814 |
ECREW,Exhaust cover,1-1/2"long |
| 72 |
0206409 |
PIVOT SCREW |
| 73 |
0329680 |
ROD, Lever to cam |
| 74 |
0327589 |
PIN, Shift lever to shift rod |
| 75 |
0127386 |
RONDELLE This part replaces 0303913. |
| 77 |
0327721 |
HOSE, Elbow to tee |
| 80 |
0303887 |
WASHEER, Pin to swivel bracket |
| 81 |
0127386 |
RONDELLE This part replaces 0303913. |
| 84 |
0309247 |
RESSORT |
| 87 |
0315081 |
BAGUE, arbre de commande de sens de marche vers bloc-cylindres |
| 90 |
0318626 |
BILLE |
| 91 |
0320302 |
BUSHING, Laink to lever |
| 92 |
0325471 |
SHIFT ROD |
| 93 |
0330202 |
SHIFT LEVER |
| 94 |
0330337 |
YOKE, Shift rod |
| 95 |
0327178 |
GUIDE |
| 0392634 |
0392634 |

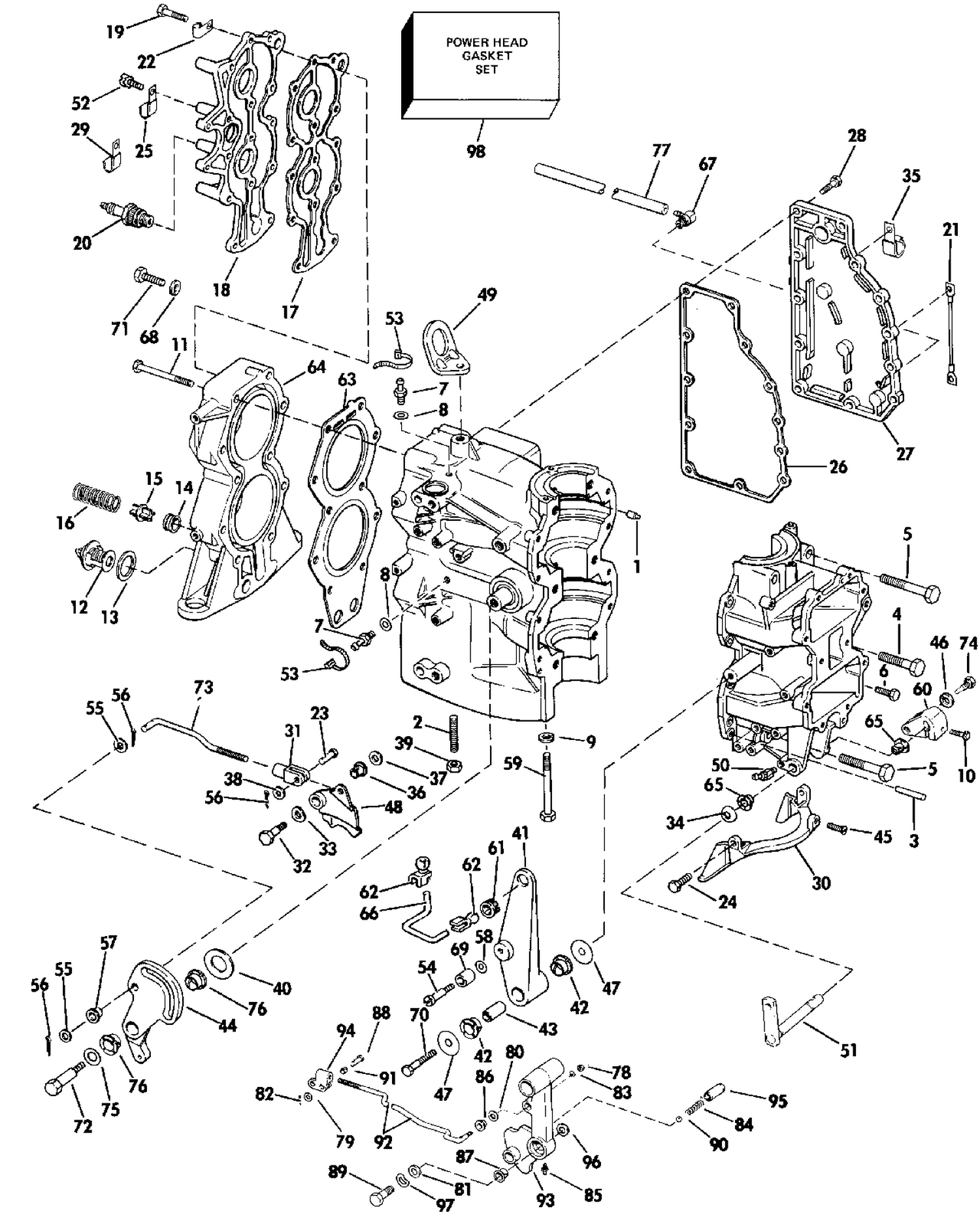

CYLINDER & C'CASE ASSY. |
