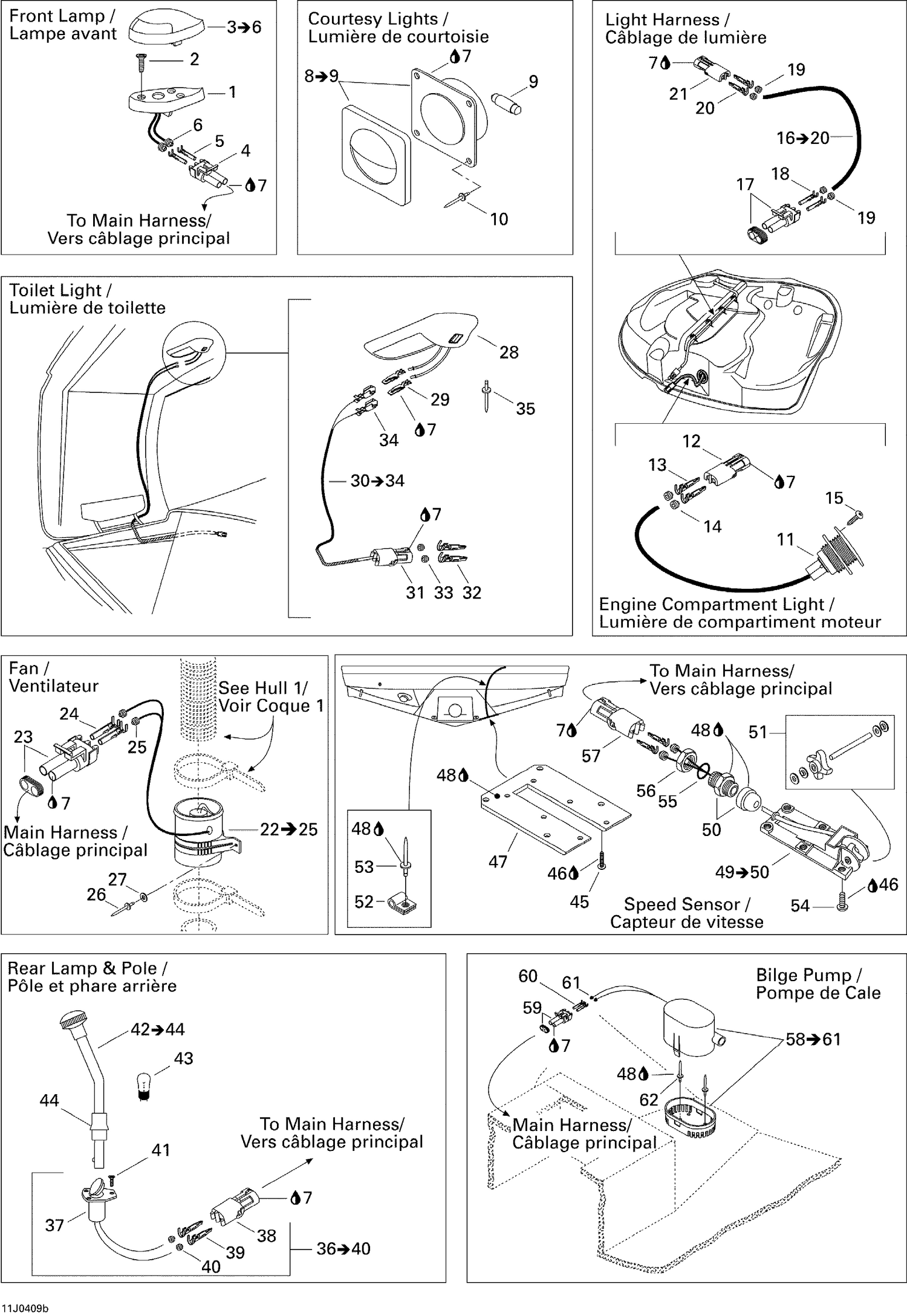

| Ref | Part Number | Description |
|---|
| 1 |
204470072 |
FRONT LAMP SUPPORT - Call your local BRP dealership |
| 2 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 4 |
409209500 |
Female Housing, 2 Circuits This part replaces 204470528. |
| 5 |
278001014 |
Female Terminal |
| 6 |
278001013 |
Wire Seal |
| 7 |
219704453 |
Was 293550004 Dielectric Grease, 150 g |
| 9 |
204470081 |
BULB - Call your local BRP dealership |
| 10 |
293150032 |
RIVET_POP 1/8 X ,487 - Call your local BRP dealership |
| 11 |
204470412 |
Engine Compartment Light |
| 12 |
278000217 |
Female Housing, 2 Circuits |
| 13 |
278000222 |
Male Terminal |
| 14 |
278000218 |
Wire Seal |
| 15 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 17 |
278000220 |
Male Connector, 2 Circuits |
| 18 |
409007300 |
Female Terminal |
| 19 |
278000218 |
Wire Seal |
| 20 |
278000222 |
Male Terminal |
| 21 |
278000217 |
Female Housing, 2 Circuits |
| 23 |
278000220 |
Male Connector, 2 Circuits |
| 24 |
278000223 |
Female Terminal |
| 25 |
278000218 |
Wire Seal |
| 26 |
293150008 |
Pop Rivet 3/16" This part replaces 293150011. |
| 27 |
234052600 |
Flat Washer 5 mm, Stainless |
| 28 |
204470414 |
TOILET LIGHT ASS?Y - Call your local BRP dealership |
| 29 |
204470553 |
Male Terminal |
| 31 |
278000217 |
Female Housing, 2 Circuits |
| 32 |
278000222 |
Male Terminal |
| 33 |
278000218 |
Wire Seal |
| 34 |
Not |
Available As Spare Part - Female Terminal |
| 35 |
293150029 |
RIVET_POP 5/32 - Call your local BRP dealership |
| 37 |
Not |
Available As Spare Part - Rear Light Base |
| 38 |
278000217 |
Female Housing, 2 Circuits |
| 39 |
278000222 |
Male Terminal |
| 40 |
278000218 |
Wire Seal |
| 41 |
209943260 |
Phillips Tapping Screw M4.2 X 32 |
| 43 |
204470053 |
Bulb |
| 44 |
204470350 |
COLLAR - Call your local BRP dealership |
| 45 |
208563560 |
Phillips Screw M6 X 35 |
| 46 |
293800060 |
Loctite 243, 10 ml |
| 47 |
204470538 |
Sensor Support |
| 48 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 50 |
293710031 |
ELECTRIC CONNECTION - Call your local BRP dealership |
| 51 |
295500108 |
Paddle Wheel Kit |
| 52 |
204100026 |
Cable Clamp 3/16” |
| 53 |
293150088 |
Pop Rivet 3/16" |
| 54 |
208551060 |
PHILLIPS SCREW M5 X 10 - Call your local BRP dealership |
| 55 |
278000416 |
SEAL WASHER - Call your local BRP dealership |
| 56 |
293710032 |
LOCKING NUT - Call your local BRP dealership |
| 57 |
278000217 |
Female Housing, 2 Circuits |
| 59 |
278000220 |
Male Connector, 2 Circuits |
| 60 |
278000223 |
Female Terminal |
| 61 |
278000218 |
Wire Seal |
