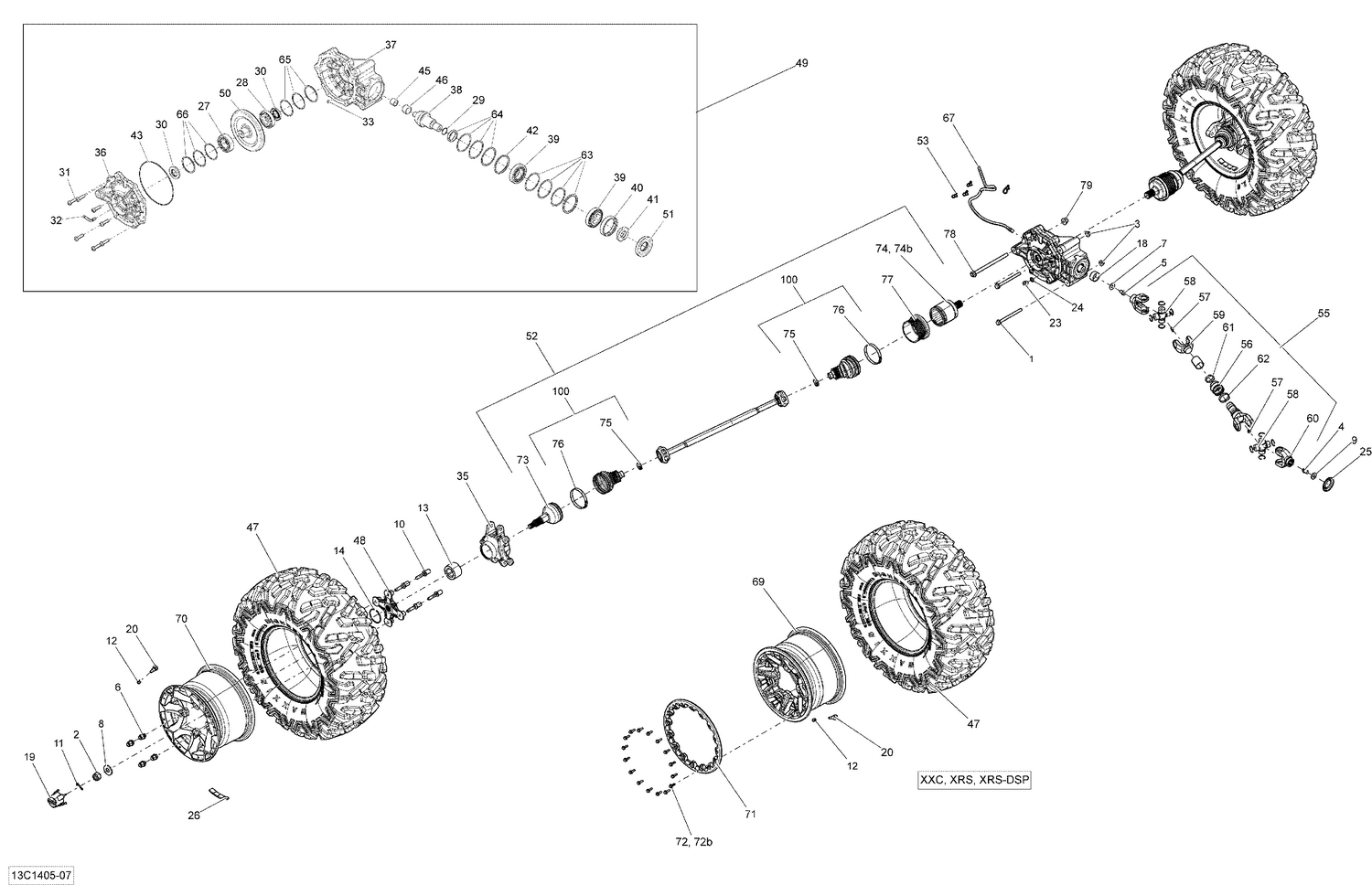

08- Drive System, Rear
Parts (69)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 230602546 | Hex. Flange Screw M10 X 125 |
| 2 | 232291413 | Hex. Flange Castellated Nut M18 This part replaces 250100047. |
| 3 | 233201436 | Hex. Flange Elastic Nut M10 |
| 4 | 250001039 | Hex Flange Screw M12 X 16 This part replaces 250000359. |
| 5 | 250001044 | Hex. Flange Screw M10 X 16 S.GRIP This part replaces 250000615. |
| 6 | 250100184 | Black, Wheel Nut M10 X 1.25 This part replaces 250100100. |
| 7 | 250200014 | Flat Washer M10 |
| 8 | 250200171 | Conical Spring Washer M18 This part replaces 250200049. |
| 9 | 250200102 | Flat Washer M12 |
| 10 | 250300060 | Wheel Stud This part replaces 250300051. |
| 11 | 250400036 | Cotter Pin |
| 12 | 293000110 | Valve Cap |
| 13 | 293350150 | Ball Bearing This part replaces 293350040. |
| 14 | 293370019 | Circlip |
| 18 | 705400036 | Wear Ring |
| 19 | 705400928 | Wheel Cap |
| 20 | 705400193 | Rim Valve With Cap |
| 23 | 705500504 | Fill Level Plug |
| 24 | 705500506 | Copper Washer |
| 25 | 705501123 | Protector |
| 27 | Not | Available As Spare Part - Ball Bearing |
| 28 | Not | Available As Spare Part - Ball Bearing |
| 29 | 705501554 | O-Ring |
| 30 | 705501556 | Oil Seal |
| 31 | 705501562 | Bolt |
| 32 | 705501584 | Breather Tube |
| 33 | 705501724 | Plug Drain |
| 35 | 705501730 | LH Rear Knuckle |
| 35 | 705501731 | RH Rear Knuckle |
| 36 | 705501735 | REAR COVER - Call your local BRP dealership |
| 37 | 705501736 | PINION COVER - Call your local BRP dealership |
| 38 | 703500867 | Pinion Kit This part replaces 703500838. |
| 39 | Not | Available As Spare Part - Ball Bearing |
| 40 | 705501740 | NUT - Call your local BRP dealership |
| 41 | Not | Available As Spare Part - Nut |
| 42 | Not | Available As Spare Part - Shim |
| 43 | 705501749 | Oil Seal |
| 45 | Not | Available As Spare Part - Bushing |
| 46 | 703500840 | Needle Bearing |
| 48 | 705501900 | Wheel Hub |
| 49 | 705502275 | Final Drive Unit This part replaces 705501912. |
| 50 | 703500837 | GEAR 36 TEETH KIT - Call your local BRP dealership |
| 51 | 705502276 | Oil Seal This part replaces 705501933. |
| 52 | 705502356 | Half Shaft |
| 52 | XXX | Not Available As Spare Parts |
| 53 | 710003168 | Dart Tie Rap 200MM |
| 55 | 703500994 | Shaft Ass'y Kit This part replaces 705502005. |
| 56 | 715900118 | Rubber Boot |
| 57 | 715900184 | Grease Fitting |
| 58 | 703500846 | Universal Joint Ass'y This part replaces 715900278. |
| 59 | 715900271 | Joint |
| 60 | 715900272 | Joint |
| 61 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 62 | 293650138 | Oetiker Gear Clamp 44.0MM |
| 63 | 703500839 | Differential Shim Kit |
| 64 | 703500839 | Differential Shim Kit |
| 65 | 703500839 | Differential Shim Kit |
| 66 | 703500839 | Differential Shim Kit |
| 67 | 219704410 | Polyurethane Hose 10000Mm Long |
| 69 | 705502244 | Black, Rim This part replaces 705501522. |
| 70 | 705501853 | Deep Black, 12 Inch Rim X 7,5 |
| 73 | 715900393 | CV JOINT - Call your local BRP dealership |
| 74 | 705501865 | Plunging Joint |
| 74b | 705501781 | Circlip |
| 75 | 715900242 | Oetiker Clamp, 27.3 mm |
| 76 | 715900241 | Oetiker Clamp, 82.1 mm |
| 77 | 705501841 | HEAT DISSIPATOR - Call your local BRP dealership |
| 78 | 230629087 | HEX. FLANGED SCREW M12 X 190 - Call your local BRP dealership |
| 79 | 233221416 | Elastic Flange Nut M12 |
