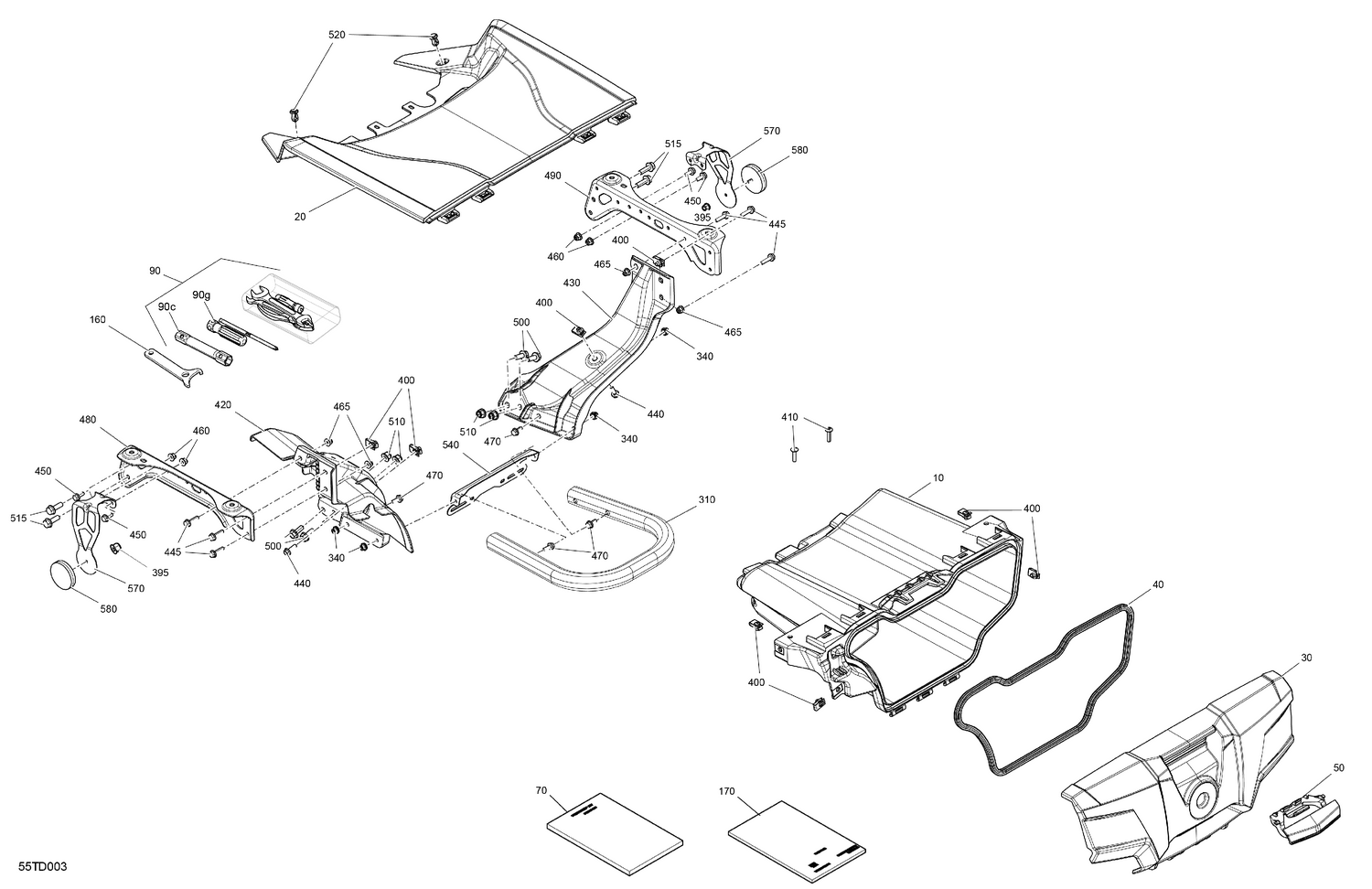

07- Body - Rear Storage Tray
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 708300674 | Rear Storage Box |
| 20 | 715005833 | Storage Cover Kit |
| 30 | 708300150 | Rear Panel |
| 40 | 293200177 | Gasket |
| 50 | 708201250 | Handle Latch |
| 70 | 219002355 | English Operator Guide |
| 90c | 529000085 | Socket Wrench 14/16MM |
| 90g | 529000021 | Screw Driver |
| 160 | 529000035 | Adjustment Wrench |
| 170 | 219002228 | Winch Instruction Guide |
| 310 | 715007680 | Rear Bumper Ass'y |
| 340 | 250100199 | Insert Half Hex Body M6 x 1.0 |
| 395 | 233251434 | Flange Elastic Nut M5 |
| 400 | 250100198 | Panel Nut M6 X 1.0 |
| 410 | 250000807 | Torx Truss Screw M6 X 25 |
| 420 | 705006997 | LH Cargo Support |
| 430 | 705006998 | RH Cargo Support |
| 440 | 207662044 | Hex. Flange Screw M6 X 20 |
| 445 | 207662544 | Hex. Flange Screw M6 X 25 |
| 450 | 207661644 | Hex. Flange Screw M6 X 16 |
| 460 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 465 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 470 | 207561646 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 480 | 705018144 | LH Side Member |
| 490 | 705018146 | RH Side Member |
| 500 | 207682044 | Hex. Flange Screw M8 X 20 |
| 510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 515 | 250001016 | Hex Flange Screw M8 X 25 S.Grip |
| 520 | 293150230 | Tuflok Plastic Rivet |
| 540 | 705018142 | License Plate Support |
| 570 | 708200987 | Reflector Support |
