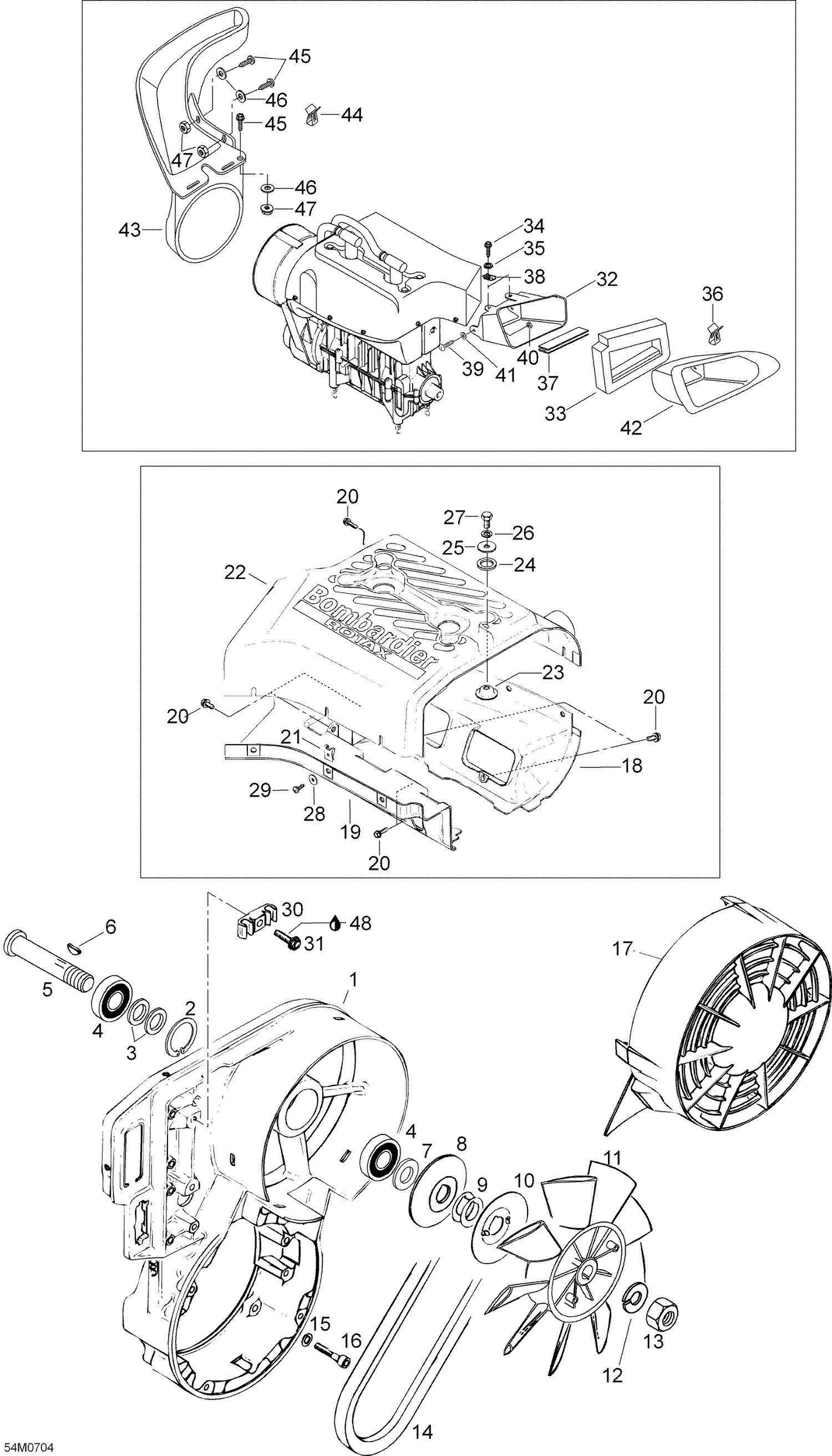

01- Fan
Parts (48)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420912230 | Fan Housing This part replaces 420912203. |
| 2 | 420945880 | Lock Ring |
| 3 | 420244585 | Shim |
| 4 | 420832161 | Ball Bearing |
| 5 | 420937941 | Fan Axle This part replaces 420937940. |
| 6 | 420246015 | Woodruff Key |
| 7 | 420827650 | Spacer Bushing |
| 8 | 420980496 | Flange |
| 9 | 420827080 | Shim 0.5 mm |
| 9 | 420827082 | Shim 0.2 mm |
| 10 | 420980523 | Protection Washer |
| 11 | 420866294 | Fan |
| 12 | 420945756 | Lock Washer |
| 13 | 420942289 | Nut M16 This part replaces 420942285. |
| 14 | 420980517 | V Belt |
| 15 | 420945751 | WASHER-LOCK DIN.128 - Call your local BRP dealership |
| 16 | 205063044 | Socket Head Screw M6 X 30 |
| 17 | 420975695 | FAN COVER - Call your local BRP dealership |
| 18 | 420810764 | CYLINDER COWL - Call your local BRP dealership |
| 19 | 420810792 | CYLINDER COWL - Call your local BRP dealership |
| 20 | 420240580 | TAPTITE SCREW M6 X 16 - Call your local BRP dealership |
| 21 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 22 | 420810776 | CYLINDER COWL - Call your local BRP dealership |
| 23 | 420827817 | Cup Washer |
| 24 | 420960865 | Rubber Washer |
| 25 | 420227936 | Washer This part replaces 420227935. |
| 26 | 420945832 | Washer-Lock Din.128 This part replaces 420945752. |
| 27 | 207181644 | Hex. Screw M8 x 16 |
| 28 | 420926180 | FLAT WASHER - Call your local BRP dealership |
| 29 | 417300006 | Tapping Screw M4.8 X 16 |
| 30 | 420860940 | CLAMP - Call your local BRP dealership |
| 31 | 420941251 | SCREW-TAPPING - Call your local BRP dealership This part replaces 420941250. |
| 32 | 572083700 | OUTLET DUCT - Call your local BRP dealership |
| 33 | M5346202 | Seal |
| 34 | 40870 | HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870. |
| 35 | 732900047 | SERRATED LOCK WASHER M5 - Call your local BRP dealership |
| 36 | 414227300 | Clip |
| 37 | M5446535 | Foam |
| 38 | 417300005 | SPRING NUT U #10-24 - Call your local BRP dealership |
| 39 | M40247 | Screw M5 X 16 |
| 40 | M33062 | NUT M5 - Call your local BRP dealership |
| 41 | 20008 | Washer 5,3 mm This part replaces M20008. |
| 42 | M5145108 | Outlet Deflector |
| 43 | M5246991 | Inlet Duct |
| 44 | 414227300 | Clip |
| 45 | M40308 | Screw |
| 46 | 234051410 | Flat Washer M5 |
| 47 | M33062 | NUT M5 - Call your local BRP dealership |
