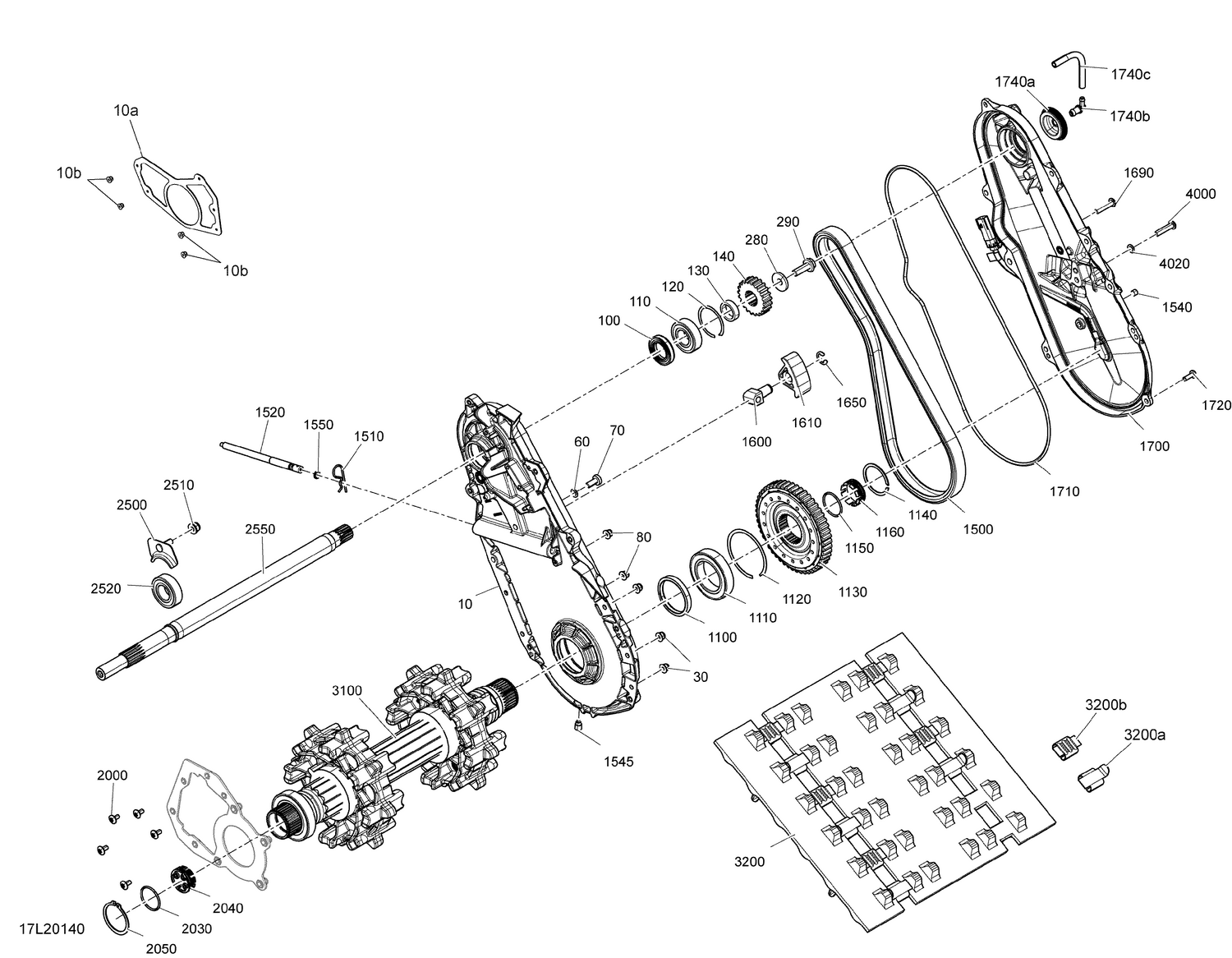

05- Drive - System - Racing
Parts (35)
| Ref | Part Number | Description |
|---|---|---|
| 10b | 233261434 | Flanged Elastic Nut M6 |
| 10c | 861805514 | Plate Kit Ass'y |
| 60 | 504082900 | Washer |
| 70 | 250000740 | Torx Screw M8 X 20, Scotch Grip |
| 80 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 100 | 293200168 | Oil Seal |
| 110 | 293350115 | Ball Bearing |
| 120 | 504152576 | Circlip |
| 130 | 504152628 | Shim |
| 280 | 504152784 | Spring Washer M10 |
| 290 | 207503046 | Hex. Flange Screw M10 X 30, Scotch Grip |
| 1100 | 293200159 | Oil Seal |
| 1110 | 293350059 | Ball Bearing |
| 1120 | 504152582 | Circlip |
| 1150 | 293300201 | O-Ring |
| 1160 | 504154019 | Magnetic Cap |
| 1510 | 414575600 | Hair Pin |
| 1520 | 504153760 | Adjustment Screw |
| 1540 | 250500013 | Hex. Countersunk Drain Plug This part replaces 250500012. |
| 1550 | 293300202 | O-Ring |
| 1600 | 504153559 | Tensioner |
| 1610 | 504153312 | Chain Slider |
| 1650 | 293370105 | Circlip |
| 1690 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
| 1720 | 250001012 | Torx T-30 Pan HD Taptite M6X20 |
| 1740a | 504152860 | Cap |
| 1740b | 414580700 | Male Connector |
| 1740c | 415080200 | HOSE, POLYURETHANE - Call your local BRP dealership |
| 2030 | 293300201 | O-Ring |
| 2040 | 504154043 | Cap |
| 2050 | 504152572 | Circlip |
| 2510 | 233281414 | Hex. Flange Elastic Nut M8 |
| 3200a | 415129528 | Track Guide |
| 3200b | 504152651 | Cleat |
| 4000 | 250000764 | Hex. Button Head Screw M8 X 1.25 X 35 |
