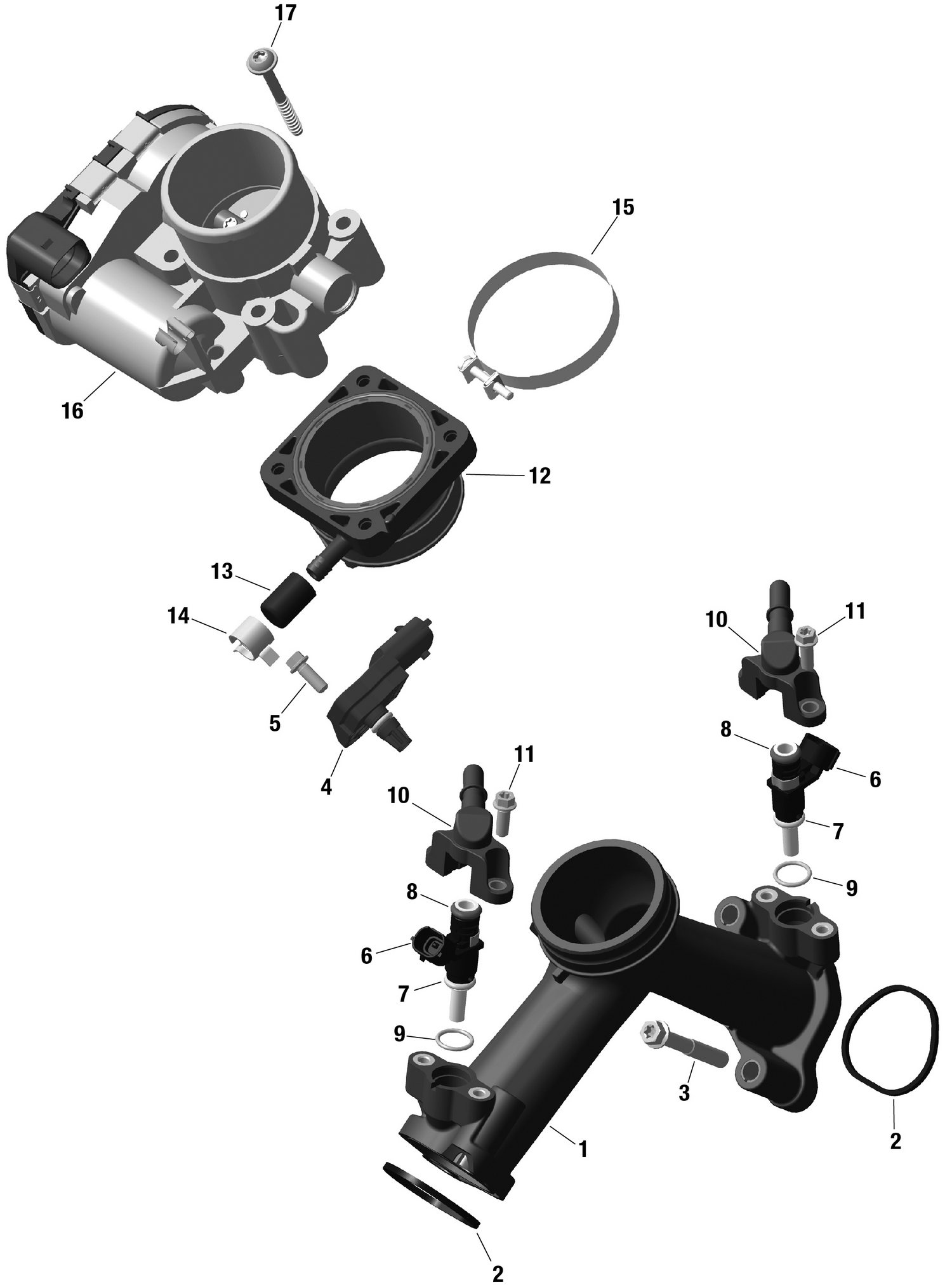

01- ROTAX - Air Intake Manifold And Throttle Body
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420667520 | Air Intake Manifold |
| 3 | 420641213 | Torx Flange Screw M8 X 55 This part replaces 420440397. |
| 4 | 420874658 | Pressure And Temperature Sensor |
| 5 | 420440149 | Hex. Flange Screw M6 X 12 |
| 7 | 420431890 | O-Ring |
| 8 | 420631220 | O-Ring |
| 10 | 420874901 | Fuel Rail |
| 11 | 420440162 | Torx Flange Screw M6 X 16 |
| 12 | 420267052 | Flange |
| 13 | 420201911 | Closure Cap |
| 14 | 420853512 | Spring Type Clamp 14 |
| 15 | 420251209 | Clamp |
| 16 | 420892596 | Throttle Body Socket Ass'y |
| 17 | 420441588 | Torx Flange Screw M6 X 50 |
