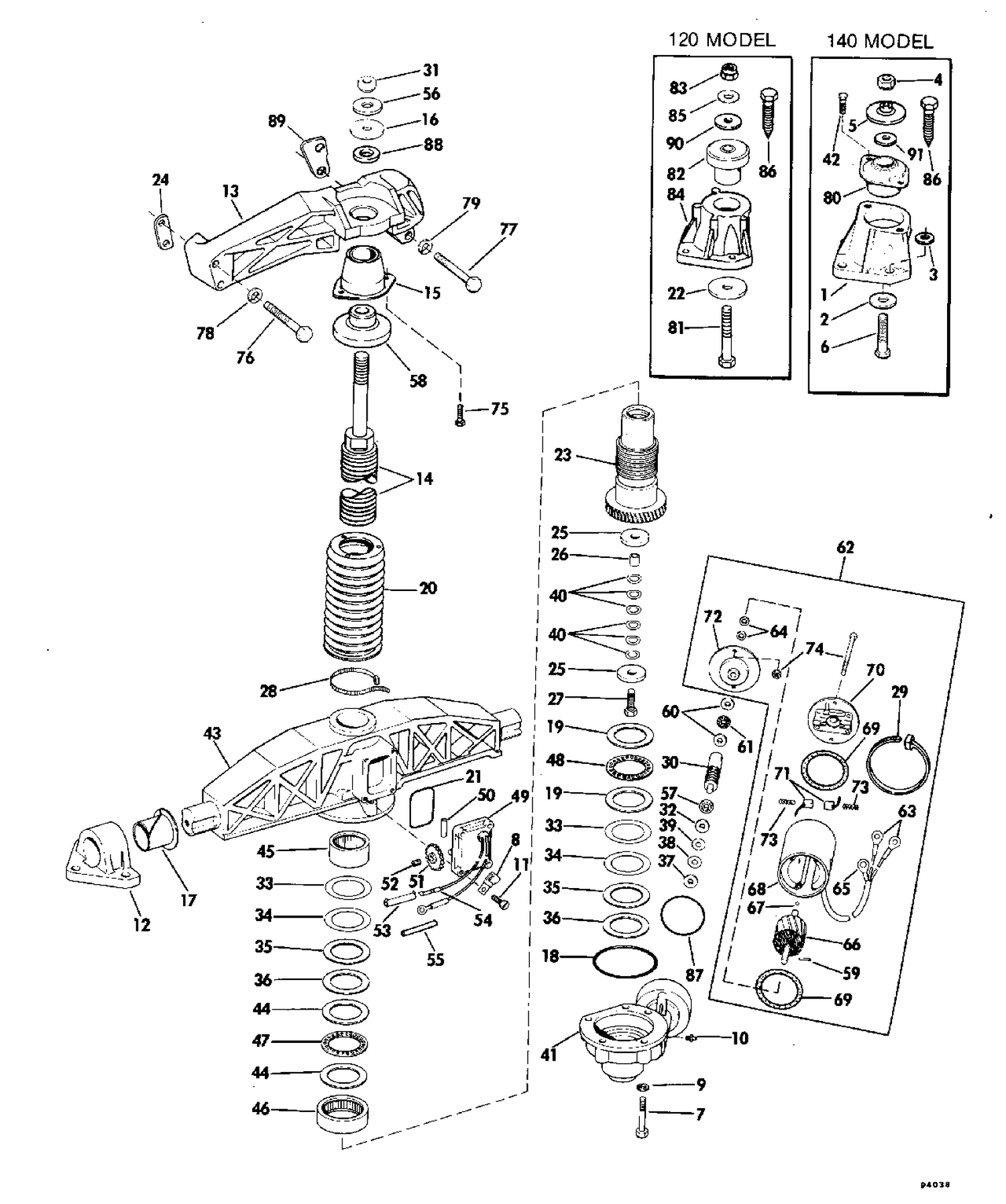

| Ref | Part Number | Description |
|---|
| 1 |
0909713 |
BRACKET, Mount stringer |
| 2 |
3853788 |
REBOUND WASHER ASSY. This part replaces 0980808. |
| 3 |
0909944 |
SPACE, Mount lower |
| 4 |
0313650 |
NUT |
| 5 |
0909684 |
WASHER |
| 6 |
0316913 |
SCREW |
| 8 |
0310441 |
CLAMP, CPS lead |
| 9 |
0311388 |
ORING |
| 11 |
0510397 |
SCREW |
| 12 |
0909711 |
PILLOW BLOCK, Trunnion housing |
| 13 |
0909052 |
BRACKET, Engine front |
| 14 |
0981740 |
JACK SCREW ASSEMBLY |
| 15 |
3853789 |
ECCENTRIC, Fuel pump, inner This part replaces 0980809. |
| 16 |
3853788 |
REBOUND WASHER ASSY. This part replaces 0980808. |
| 17 |
0907769 |
BUSHING, Pillow blcok |
| 18 |
0907770 |
O RING, Trunnion housing |
| 19 |
0907791 |
WASHER |
| 20 |
0907795 |
BOOT, Jack screw |
| 21 |
0907817 |
O RING, Sending unit |
| 22 |
3852428 |
WASHER, Lower This part replaces 0907857. |
| 23 |
0979793 |
NUT & WORM WHEEL ASSY |
| 24 |
0910086 |
PLATE, Backup, front mount, starboard |
| 25 |
3852422 |
WASHER, Upper This part replaces 0907826. |
| 26 |
0907828 |
SPACER, Stop screw |
| 27 |
0907832 |
SCREW, Bumper stop |
| 29 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 30 |
0907835 |
WORM GEAR, Tilt trim |
| 31 |
0313650 |
NUT |
| 32 |
0907837 |
WASHER |
| 33 |
0907925 |
SHIM, .002" |
| 34 |
0907926 |
SHIM, .003" |
| 35 |
0907927 |
SHIM, .004" |
| 36 |
0907928 |
SHIM, .010" |
| 37 |
0907929 |
SHIM, .002" |
| 38 |
0907930 |
SHIM, .003" |
| 39 |
0907931 |
SHIM, .004" |
| 40 |
0907966 |
WASHER, Bumper stop |
| 41 |
0981670 |
TRUNNION HOUSING, Lower |
| 42 |
3852474 |
SCREW, Mount to bracket This part replaces 0909682. |
| 43 |
0981671 |
TRUNION HSG & BRG ASSY |
| 44 |
0907791 |
WASHER |
| 45 |
0979769 |
NEEDLE BEARING ASSY |
| 46 |
0979770 |
NEEDLE BEAREING ASSY |
| 49 |
0981458 |
SENDING UNIT ASSEMBLY |
| 51 |
0907815 |
GEAR |
| 52 |
0907816 |
CLUTCH PINS |
| 55 |
0908615 |
HEAT SHIRINK TUBE |
| 56 |
3852422 |
WASHER, Upper This part replaces 0907826. |
| 57 |
0979798 |
BEARING |
| 58 |
0909683 |
SPACER MOUNT |
| 59 |
0317134 |
SPIRAL PIN |
| 60 |
0907837 |
WASHER |
| 61 |
0979798 |
BEARING |
| 62 |
0983318 |
MOTOR ASSEMBLY This part replaces 0982069. |
| 64 |
0979945 |
THRUST WASHER & SPACER |
| 66 |
0982149 |
ARMATUER |
| 68 |
0982307 |
FRAME & FIELD, Complete |
| 70 |
0982151 |
HEAD ASSEMBLY, Comm end |
| 72 |
0979942 |
HEAD ASSEMBLY, Drive end |
| 74 |
0982152 |
THRU BOLT PACKAGE |
| 75 |
3852474 |
SCREW, Mount to bracket This part replaces 0909682. |
| 76 |
0306837 |
SCREW Bracket |
| 77 |
0910087 |
SCREW, Bracket to engine port |
| 78 |
0120177 |
L'WASHER, Alternator to brkt |
| 79 |
0303269 |
L'WASHER, Upper |
| 80 |
3853789 |
ECCENTRIC, Fuel pump, inner This part replaces 0980809. |
| 81 |
0317573 |
SCREW |
| 82 |
0979722 |
RUBBER MOUNT |
| 83 |
0907858 |
LOCKNUT, Mount screw |
| 84 |
0909712 |
BRACKET, Mount striner |
| 85 |
0907838 |
BRACKET, Rear |
| 86 |
3852475 |
LAG SCREW This part replaces 0909716. |
| 87 |
3854293 |
O-RING, Housing This part replaces 0909694. |
| 88 |
0909944 |
SPACE, Mount lower |
| 89 |
0910085 |
PLATE, Backup, front mount port |
| 90 |
0909633 |
WASHER |
