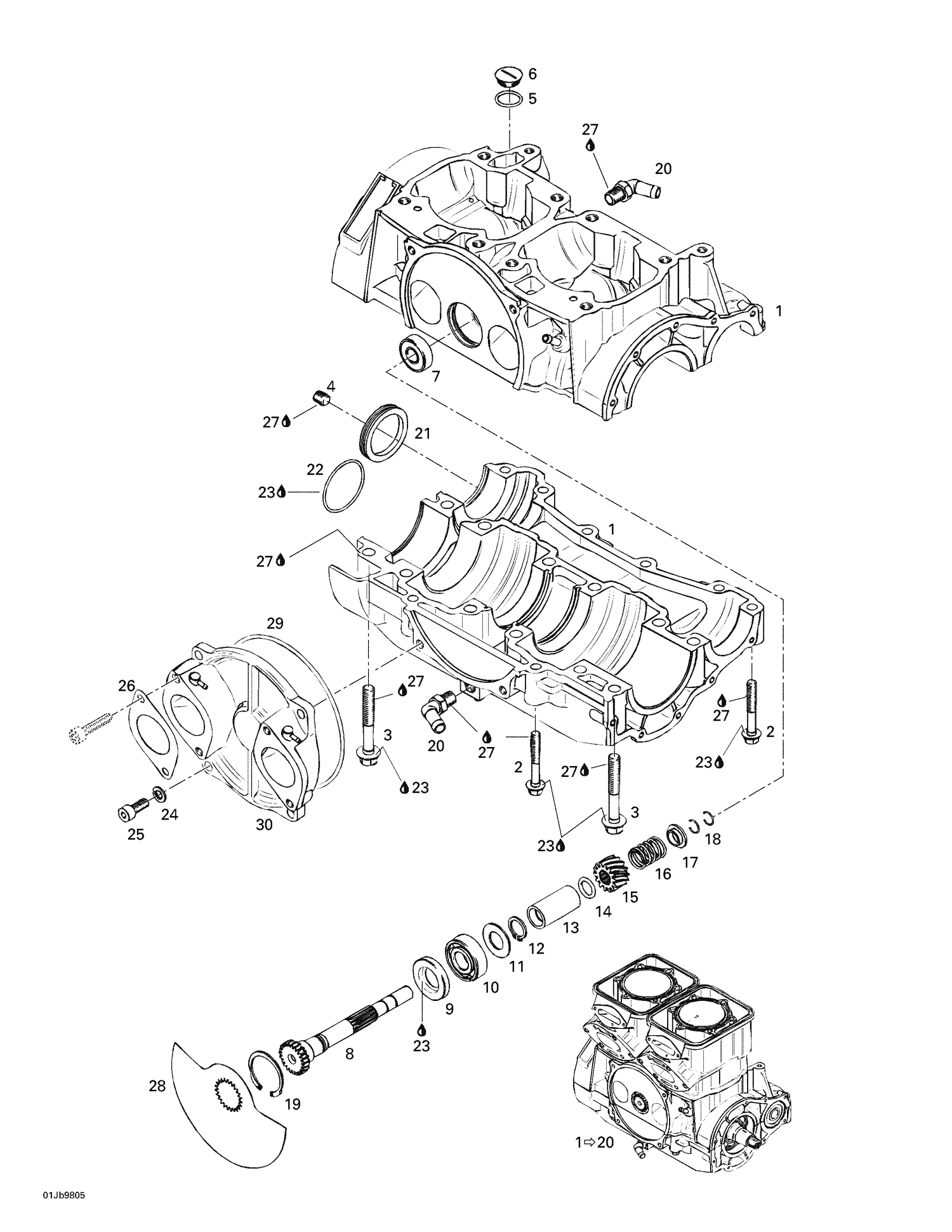

| Ref | Part Number | Description |
|---|
| 1 |
421000100 |
REBUILD-CRANKCASE-CYLINDER PACKAGE - Call your local BRP dealership |
| 2 |
290240328 |
Hex. Flange Screw M8 x 55 |
| 3 |
290941333 |
Flange Screw M10 x 73,5 |
| 4 |
290240483 |
Drain Plug 1/8" |
| 5 |
420250890 |
O-Ring This part replaces 290250890. |
| 6 |
420241801 |
Drain Plug This part replaces 290241801. |
| 7 |
420932797 |
Ball Bearing |
| 8 |
290837352 |
Rotary Valve Shaft |
| 9 |
420930580 |
OIL SEAL - Call your local BRP dealership |
| 10 |
293350051 |
BALL BEARING - Call your local BRP dealership This part replaces 290932032. |
| 11 |
420227439 |
SHIM - Call your local BRP dealership |
| 12 |
420845450 |
SNAP RING - Call your local BRP dealership |
| 13 |
290847287 |
Distance Sleeve |
| 14 |
293300024 |
O-Ring |
| 15 |
420935736 |
Sprocket 14Th This part replaces 420935735. |
| 16 |
420938810 |
SPRING - Call your local BRP dealership |
| 17 |
420827430 |
SPRING SEAT - Call your local BRP dealership |
| 18 |
420845160 |
CIRCLIP - Call your local BRP dealership |
| 19 |
420945880 |
Lock Ring This part replaces 420845260. |
| 20 |
420922242 |
Angular Tube This part replaces 420922245. |
| 21 |
420810745 |
BEARING COVER - Call your local BRP dealership This part replaces 290810745. |
| 22 |
290230300 |
O-Ring |
| 23 |
413707000 |
Dow Corning 111, 150 g |
| 24 |
234180602 |
Lock Spring Washer 8 mm, Stainless This part replaces 217383600. |
| 25 |
290240073 |
Cylinder Screw M8 x 20 |
| 26 |
204250035 |
Gasket |
| 28 |
420924502 |
ROTARY VALVE, 159 - Call your local BRP dealership |
| 29 |
290831767 |
O-RING - Call your local BRP dealership |
| 30 |
290811306 |
Rotary Valve Cover |
