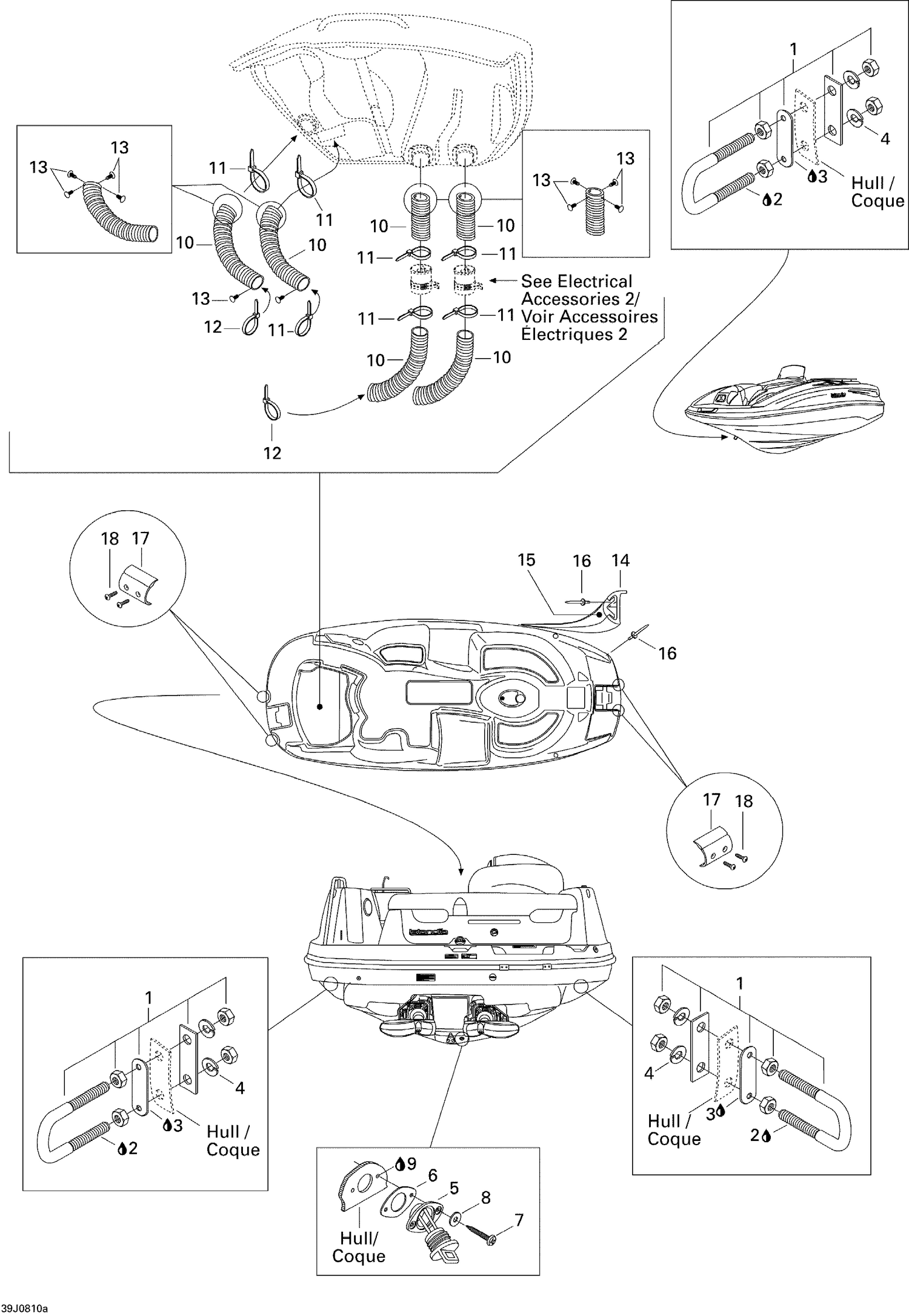

| Ref | Part Number | Description |
|---|
| 1 |
204050336 |
BOW EYE KIT 1/2? - Call your local BRP dealership This part replaces 204050748. |
| 2 |
293800005 |
Loctite 271, 10 ml |
| 3 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 4 |
204100048 |
WASHER-LOCK HELICAL 1/2 - Call your local BRP dealership |
| 5 |
292000187 |
Drain Plug |
| 6 |
293250030 |
GASKET - Call your local BRP dealership |
| 7 |
209642560 |
PHILLIPS SCREW M4.2 X 25 - Call your local BRP dealership |
| 8 |
234041600 |
Flat Washer 4 mm, Stainless |
| 9 |
296000309 |
Silicone Sealant 51388, 300 ml |
| 10 |
219704358 |
Was 204050122 Vent Hose 4" |
| 11 |
293750047 |
Tie Rap, 533 mm |
| 12 |
414115200 |
Tie-Rap 180 mm |
| 13 |
293730006 |
Black, Dart |
| 14 |
204050340 |
Black, Bumper |
| 15 |
204050337 |
BUMPER TRIM, BLACK - Call your local BRP dealership |
| 16 |
293150013 |
Pop Rivet 3/16" |
| 17 |
204050338 |
BUMPER COVER, BLACK - Call your local BRP dealership |
