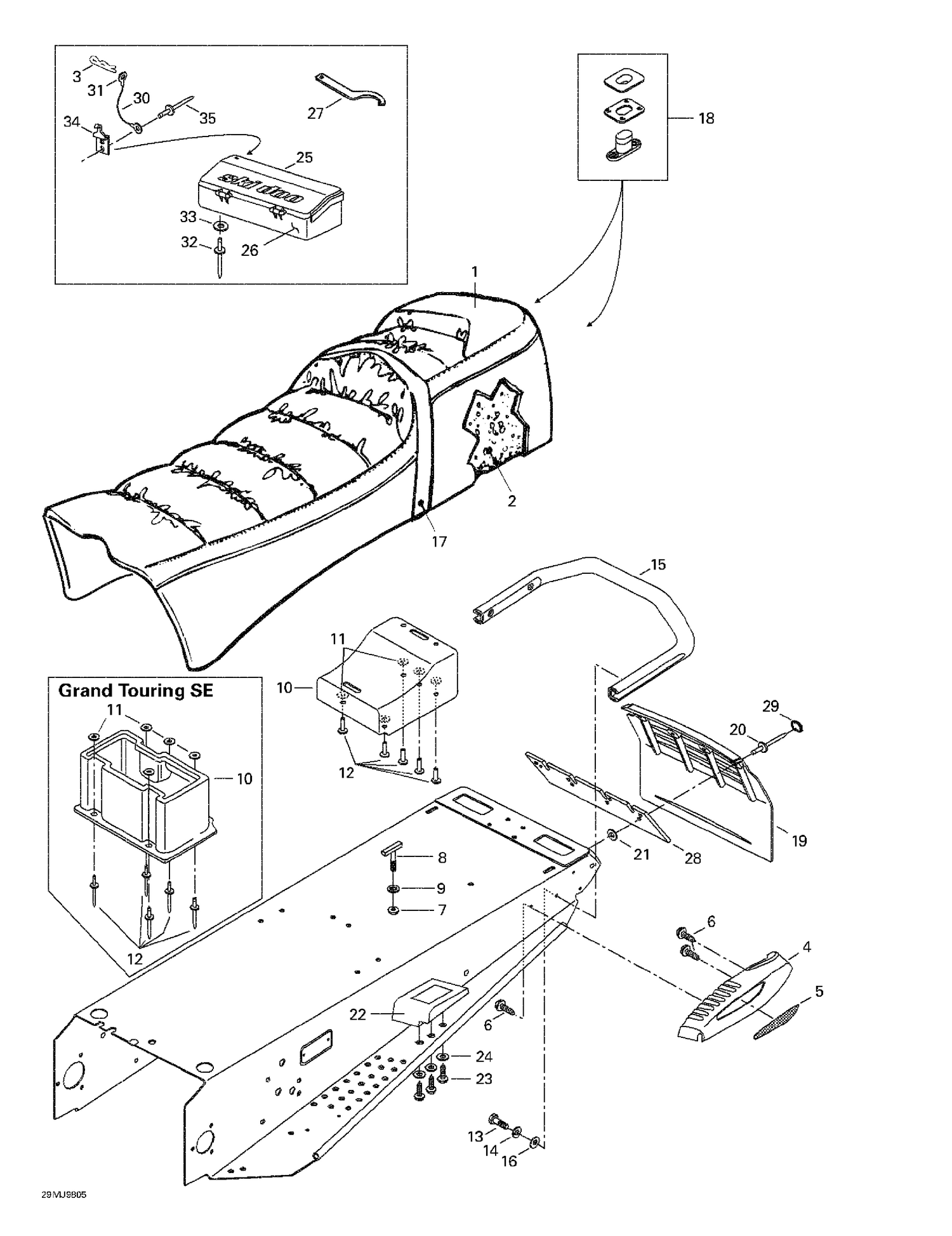

| Ref | Part Number | Description |
|---|
| 3 |
414112400 |
HAIR PIN - Call your local BRP dealership |
| 5 |
415056000 |
RH Red Reflector |
| 6 |
365901100 |
HEX. SCREW 12 X 3/4 - Call your local BRP dealership |
| 7 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 This part replaces 228761045. |
| 9 |
732610072 |
Push Nut |
| 11 |
517297900 |
WASHER - Call your local BRP dealership |
| 13 |
207182044 |
Hex. Screw M8 X 20 This part replaces 222082065. |
| 14 |
234181401 |
Lock Washer 8 mm This part replaces 224781140. |
| 15 |
517272510 |
Rear Bumper |
| 16 |
234081410 |
Flat Washer 8 mm This part replaces 224081171. |
| 17 |
415095600 |
Seat Belt |
| 18 |
414728000 |
SEAT BUCKLE - Call your local BRP dealership |
| 20 |
293150100 |
Pop Rivet 3/16" This part replaces 390908000. |
| 21 |
517225900 |
Flat Washer |
| 22 |
572088700 |
RH Footrest |
| 23 |
243041660 |
HEX. PLASTITE SCREW M5.28 X 16 - Call your local BRP dealership This part replaces 211000074. |
| 24 |
224061121 |
Flat Washer |
| 25 |
572092400 |
Tool Box Ass'y |
| 26 |
529032000 |
Tool Kit (Not Shown) |
| 27 |
529030700 |
Wrench-Adjuster |
| 28 |
572108200 |
REINFORCEMENT - Call your local BRP dealership |
| 29 |
415073300 |
Cap |
| 30 |
414407400 |
Wire |
| 31 |
561502800 |
Terminal Ring |
| 32 |
293150104 |
Pop Rivet 3/16" This part replaces 390409600. |
| 33 |
517124300 |
Washer |
| 34 |
Not |
Available As Spare Part - Latch |
| 415056001 |
LH |
Red Reflector 415056001 |
| 415099700 |
RH |
Amber Reflector (Europe) 415099700 |
| 415099701 |
LH |
Amber Reflector (Europe) 415099701 |
| 520000033 |
LH |
Rear Moulding Ass'y 520000033 |
| 520000034 |
RH |
Rear Moulding Ass'y (Europe) 520000034 |
| 520000035 |
LH |
Rear Moulding Ass'y (Europe) 520000035 |
| 572088800 |
LH |
Footrest 572088800 |
| 572088800 |
Repose-Pieds |
GA 572088800 |
