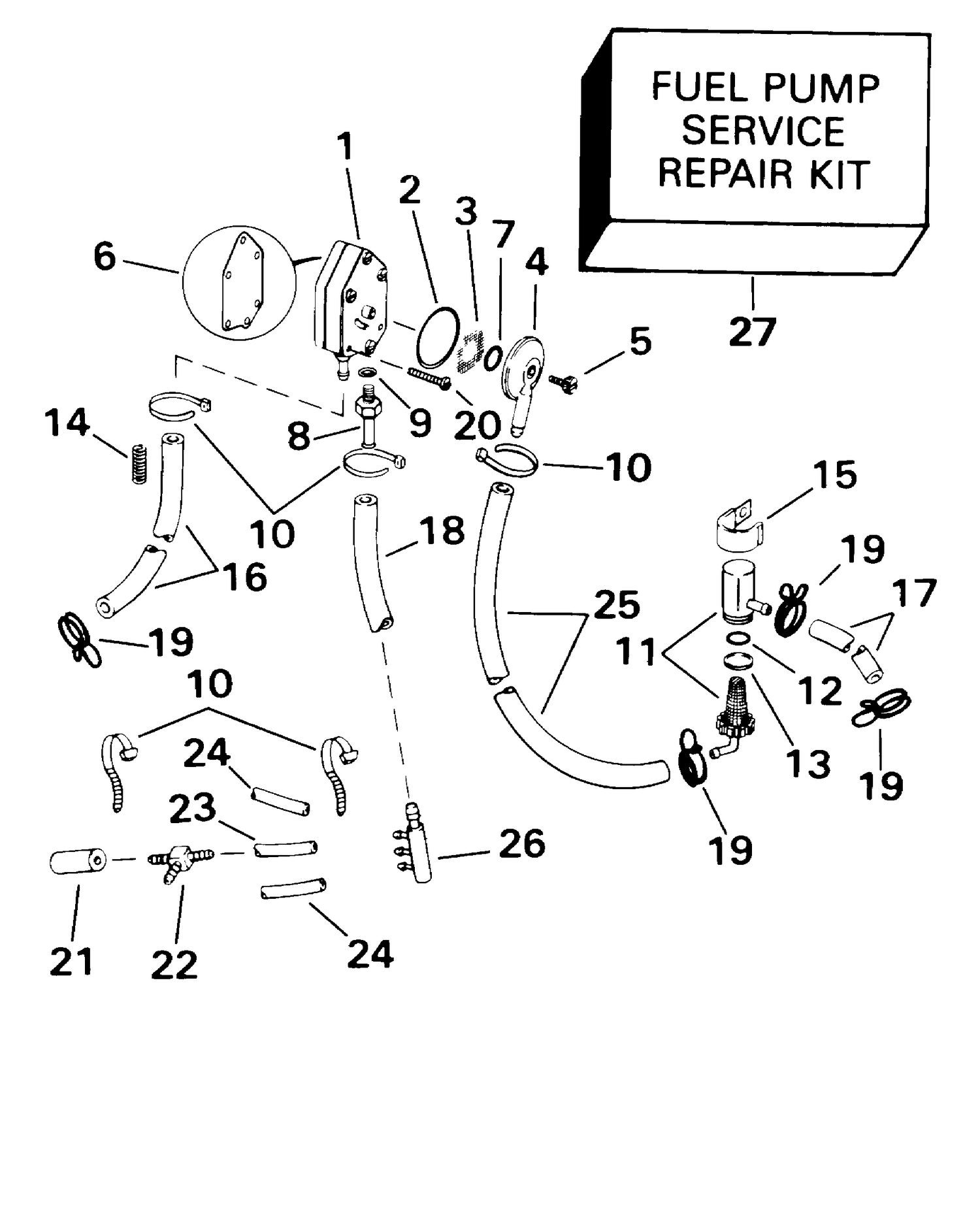

FUEL PUMP & FILTER
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438557 | FUEL PUMP Assy |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | 0397715 | FILTER, Fuel |
| 14 | 0315942 | SPRING |
| 15 | 0330151 | CLAMP, Harness to oil tank boss |
| 17 | 0333395 | HOSE, Connector to filter |
| 19 | 0339278 | COLLIER DE SERRAGE |
| 20 | 0328717 | NUT, Ground lead |
| 24 | 0336236 | HOSE, Fuel pump to carburetor |
| 25 | 0334131 | FLEXIBLE, impulsions |
| 26 | 5004610 | FITTING, Fuel manifold This part replaces 0395540. |
