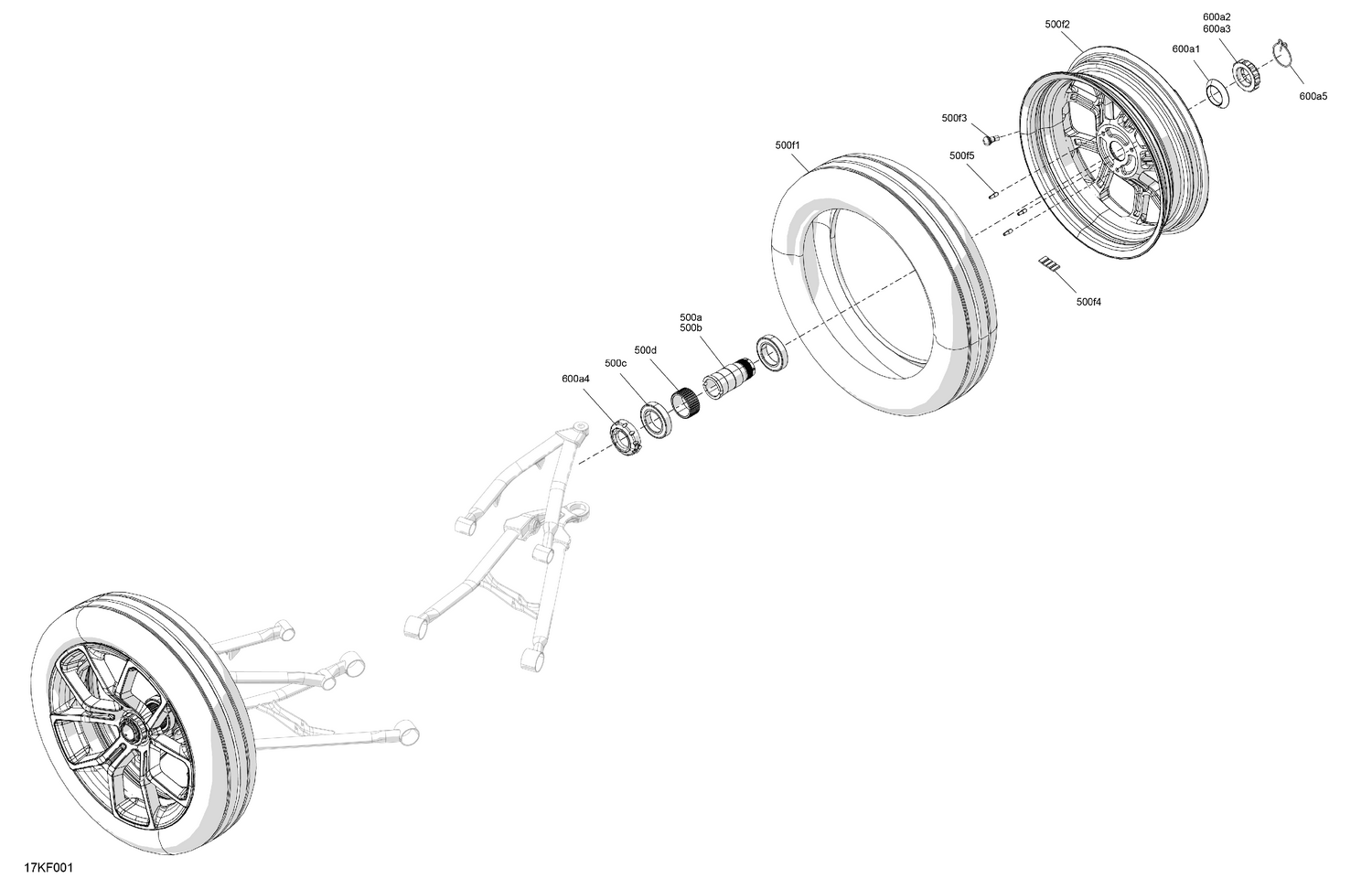

03- Drive - Front Wheels
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 500a | 706204864 | LH Front Wheel Axle |
| 500b | 706204735 | RH Front Wheel Axle |
| 500c | 293350142 | Ball Bearing |
| 500d | 705601557 | Tone Ring (trigger wheel) |
| 500f1 | 705403877 | Tire 145/60R16 |
| 500f2 | 705403601 | Platinum Silver, 16 Inch Rim |
| 500f3 | 705400193 | Rim Valve With Cap |
| 500f4 | 705503182 | Balancing Weight |
| 600a1 | 705401983 | Conical Support Ring |
| 600a2 | 705403491 | RH Specialized Nut M45 Ass'y |
| 600a3 | 705402730 | Wheel Nut M45 |
| 600a4 | 705402677 | Hub Cap |
| 600a5 | 293370168 | External Retaining Ring |
