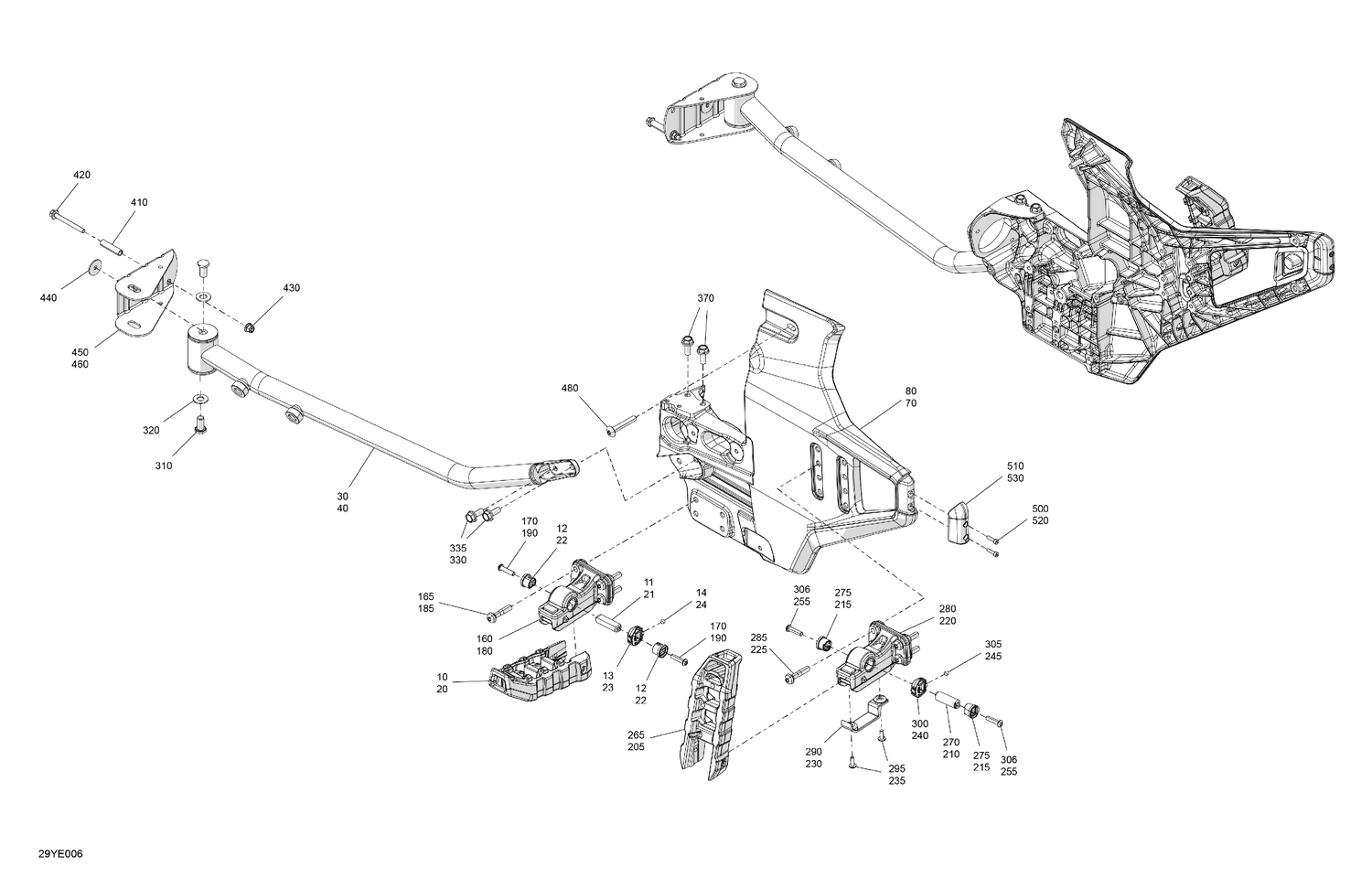

06- Frame - Footrest
Parts (55)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 705018513 | Footrest |
| 11 | 705017968 | Hinge Pin |
| 12 | 705018477 | Bushing |
| 13 | 709403037 | Overmolded Magnet |
| 14 | 705001705 | Ball |
| 20 | 705018513 | Footrest |
| 21 | 705017968 | Hinge Pin |
| 22 | 705018477 | Bushing |
| 23 | 709403037 | Overmolded Magnet |
| 24 | 705001705 | Ball |
| 30 | 705017638 | LH Lower Support |
| 40 | 705017639 | RH Lower Support |
| 70 | 705018517 | RH Footrest Support |
| 80 | 705018519 | LH Footrest Support |
| 160 | 709403041 | LH Footrest Anchorage |
| 165 | 250000904 | Button Head Torx Screw M8 X 38 |
| 170 | 250001352 | Torx Button Head Screw M6 X 25 |
| 180 | 709403040 | RH Footrest Anchorage |
| 185 | 250000904 | Button Head Torx Screw M8 X 38 |
| 190 | 250001352 | Torx Button Head Screw M6 X 25 |
| 205 | 705018513 | Footrest |
| 210 | 705017968 | Hinge Pin |
| 215 | 705018477 | Bushing |
| 220 | 709403040 | RH Footrest Anchorage |
| 225 | 250000904 | Button Head Torx Screw M8 X 38 |
| 230 | 710010571 | RH Sensor Support |
| 235 | 250000742 | Torx Screw M5 X 14 |
| 240 | 709403037 | Overmolded Magnet |
| 245 | 705001705 | Ball |
| 255 | 250001352 | Torx Button Head Screw M6 X 25 |
| 265 | 705018513 | Footrest |
| 270 | 705017968 | Hinge Pin |
| 275 | 705018477 | Bushing |
| 280 | 709403041 | LH Footrest Anchorage |
| 285 | 250000904 | Button Head Torx Screw M8 X 38 |
| 290 | 710010572 | LH Trim Support |
| 295 | 250000742 | Torx Screw M5 X 14 |
| 300 | 709403037 | Overmolded Magnet |
| 305 | 705001705 | Ball |
| 306 | 250001352 | Torx Button Head Screw M6 X 25 |
| 310 | 250000719 | Hex. Cap Screw Full Thread M10 X 20 |
| 320 | 506152582 | Washer |
| 330 | 207582046 | Hex Flange Screw M8 X 20 |
| 335 | 207582046 | Hex Flange Screw M8 X 20 |
| 370 | 207582054 | Hex Screw Washer Head M8 X 20 |
| 410 | 705018575 | Spacer |
| 420 | 250000778 | Hex. Flange Screw M6 X 60 |
| 430 | 233261466 | Hex. Flange Elastic Nut M6 |
| 440 | 250200029 | Washer M6 |
| 450 | 705008950 | Tube Support |
| 460 | 705008950 | Tube Support |
| 480 | 250001368 | Torx Truss Screw M/S M8 X 50 S.Grip |
| 500 | 250001011 | Black, Socket Head Screw M4 X 16 |
| 510 | 708401005 | LH Cap |
| 520 | 250001011 | Black, Socket Head Screw M4 X 16 |
