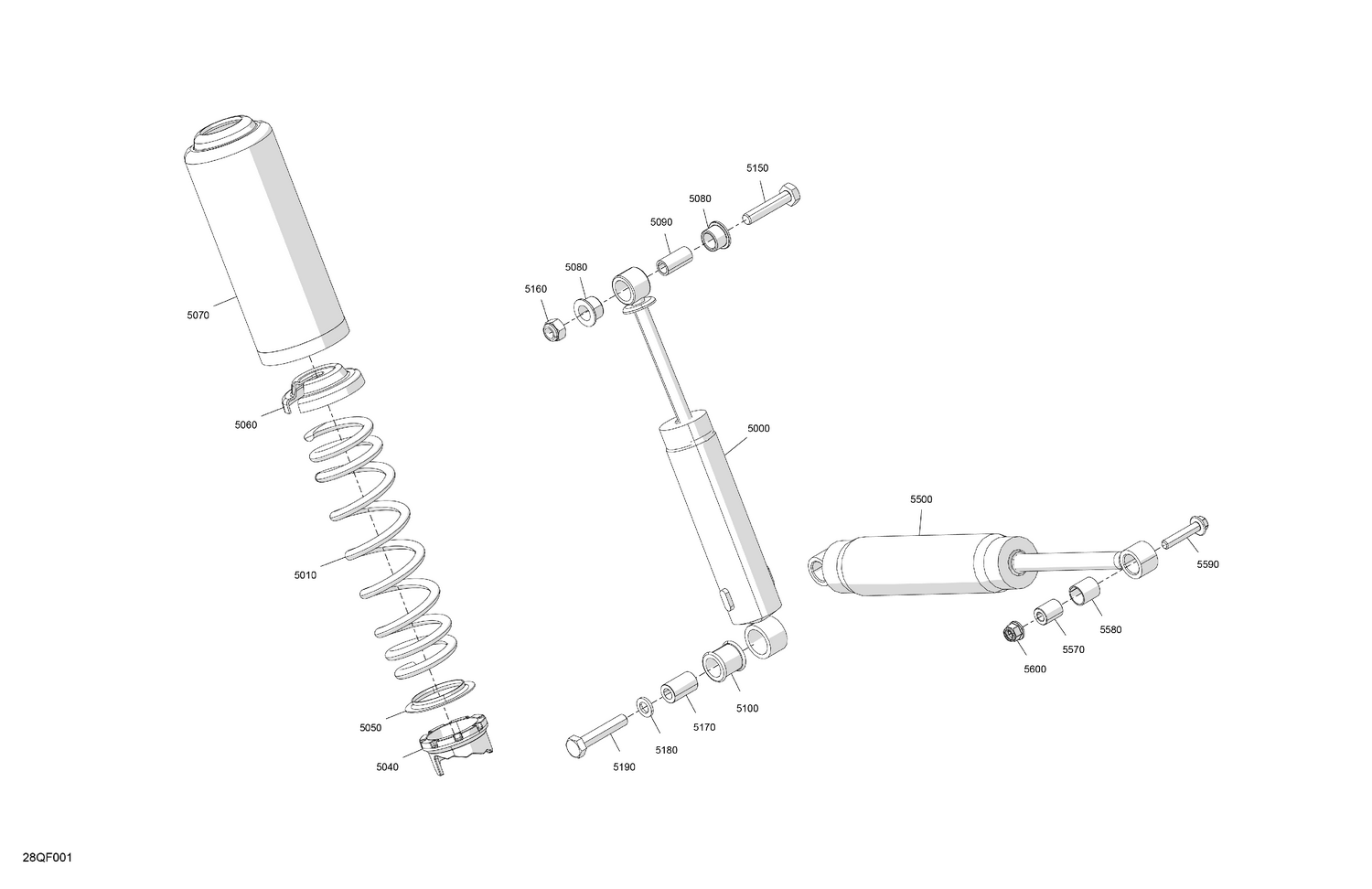

05- Suspension - Rear Shocks
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 5000 | 503192266 | Center Shock |
| 5010 | 503189686 | Black, Spring |
| 5040 | 505073625 | Adjustment Cam |
| 5050 | 505074995 | Spring Guide |
| 5060 | 706200881 | Spring Stopper |
| 5070 | 503193663 | Protector |
| 5080 | 503189117 | Cushion |
| 5090 | 503189282 | Bushing |
| 5100 | 503189271 | Cushion |
| 5150 | 207005044 | Hex. Screw M10 X 50 |
| 5160 | 233601466 | Elastic Locking Nut M10 |
| 5170 | 503190604 | Bushing |
| 5180 | 503192496 | Washer |
| 5190 | 207205544 | Hex. Screw M10 X 55, Scotch Grip |
| 5500 | 503197342 | Rear Shock Absorber Hpg |
| 5570 | 503196509 | Axle Shock Absorber |
| 5580 | 505072663 | Bushing |
| 5590 | 250001028 | Hex. Flanged Screw M6 X 45 |
