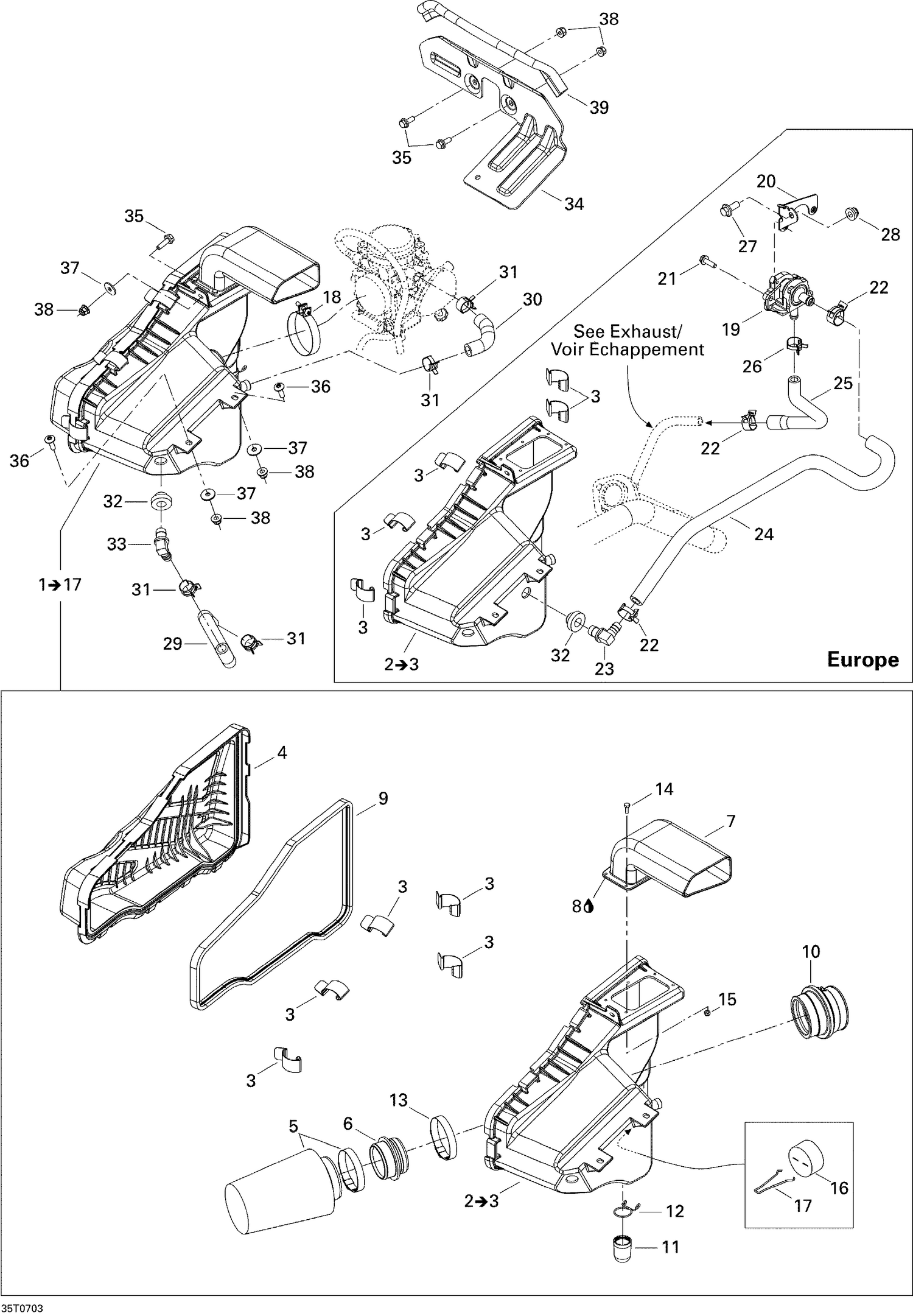

| Ref | Part Number | Description |
|---|
| 3 |
707800079 |
Bracket Cover |
| 4 |
707800119 |
Muffler Cover |
| 5 |
707800120 |
Air Filter |
| 6 |
707800134 |
RIGID ADAPTOR - Call your local BRP dealership |
| 7 |
707800121 |
Front Intake Adaptor |
| 8 |
219704460 |
Was 293800066 Sealant Loctite 5900, 300 ml |
| 9 |
293250133 |
Oil Seal |
| 10 |
707800150 |
INTAKE ADAPTOR - Call your local BRP dealership |
| 11 |
707800080 |
Drain Tube |
| 12 |
707800081 |
RETAINER CLIP - Call your local BRP dealership |
| 13 |
293650036 |
Tridon Clamp |
| 14 |
207141244 |
HEX. SCREW M4 X 12 - Call your local BRP dealership |
| 15 |
232541414 |
Elastic Stop Nut M4 |
| 16 |
707800088 |
FILTER FOAM - Call your local BRP dealership |
| 17 |
707800087 |
FOAM BRACKET - Call your local BRP dealership |
| 18 |
293650155 |
GEMI CLAMP - Call your local BRP dealership |
| 29 |
707800245 |
CARTER VENT HOSE - Call your local BRP dealership |
| 30 |
707800246 |
Carburator Vent Hose |
| 31 |
293650110 |
Norma Clamp |
| 32 |
707800347 |
Grommet This part replaces 570273900. |
| 33 |
414523600 |
Elbow Fitting |
| 34 |
707800227 |
WATER DEFLECTOR - Call your local BRP dealership |
| 35 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 36 |
250000728 |
Torx Screw M6 X 25 This part replaces 250000081. |
| 37 |
250200082 |
Flat Washer This part replaces 391302000. |
| 38 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
