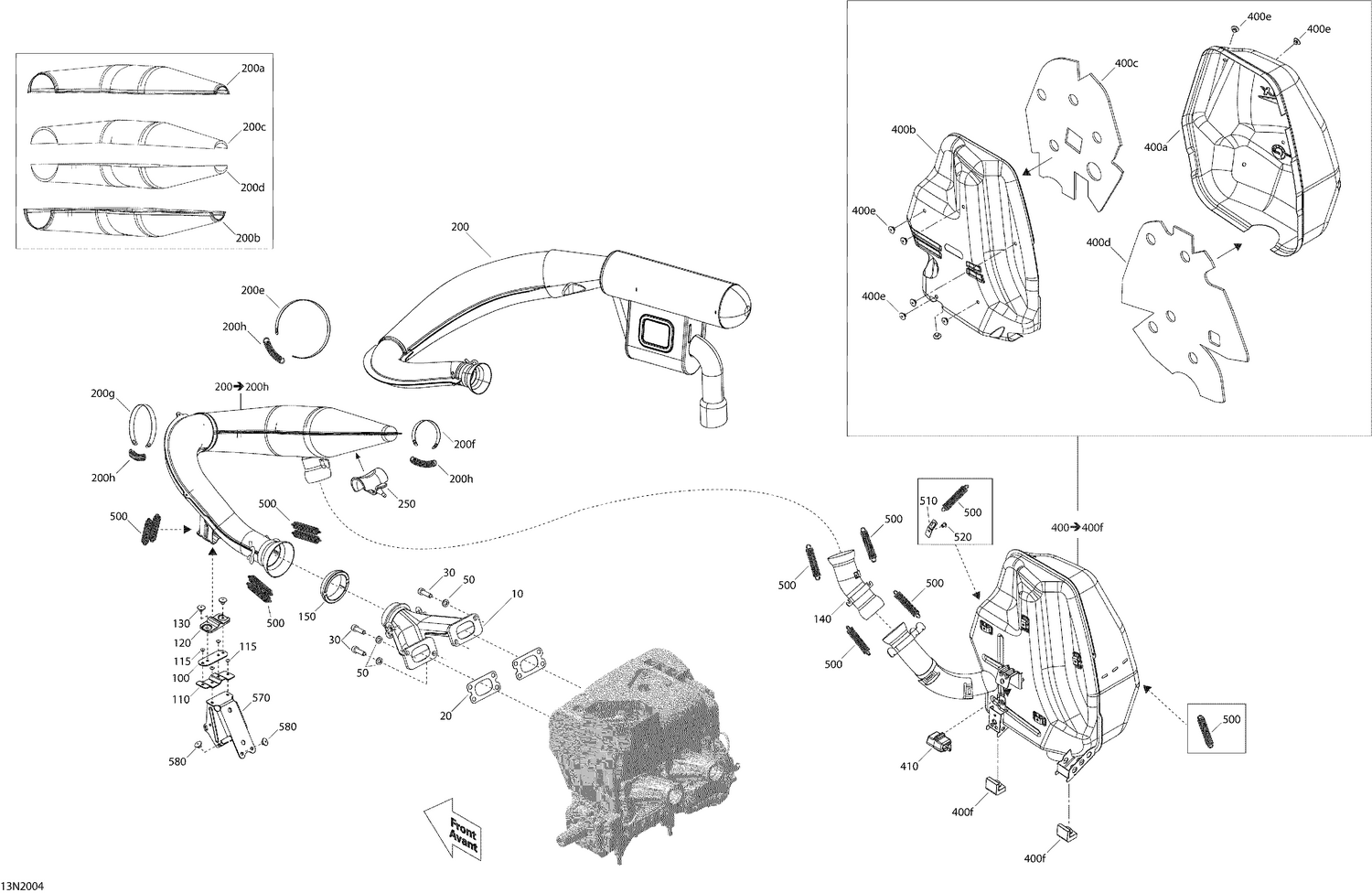

02- Engine - Exhaust
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 420673065 | Exhaust Manifold |
| 20 | 420831849 | Gasket 1.0 mm |
| 30 | 205083044 | Socket Head Screw M8 X 30 |
| 50 | 250200111 | Washer |
| 100 | 514055275 | Support Plate |
| 110 | 514055270 | Support |
| 115 | 390909200 | Avex Rivet |
| 120 | 514054617 | Bumper |
| 130 | 293150103 | Pop Rivet 3/16" |
| 140 | 514054411 | Exhaust Elbow |
| 150 | 514053644 | Exhaust Gasket |
| 200a | 514054208 | Rear Upper Half-enveloppe |
| 200b | 514054210 | Rear Lower Half Envellope |
| 200c | 514054244 | Upper Insulating Wool |
| 200d | 514054243 | Lower Insulating Wool |
| 200e | 514053502 | Retaining Strap |
| 200f | 514053491 | RETAINING STRAP - Call your local BRP dealership |
| 200g | 514053498 | Retaining Strap |
| 200h | 514053643 | Spring |
| 250 | 514054513 | Bumper |
| 400a | 514054984 | RH Deflector |
| 400b | 514055069 | LH DEFLECTOR - Call your local BRP dealership |
| 400c | 514054421 | LH Insulated Wool |
| 400d | 514054711 | RH Insulating Wool |
| 400e | 390910000 | Pop Rivet 3/16” |
| 400f | 514054529 | Lower Stopper |
| 410 | 514054606 | Upper Stopper |
| 500 | 415107100 | Spring |
| 510 | 514054522 | Spring Bracket This part replaces 514054391. |
| 520 | 390402200 | Pop Rivet 3/16" |
| 570 | 514054767 | Exhaust Muffler Support |
