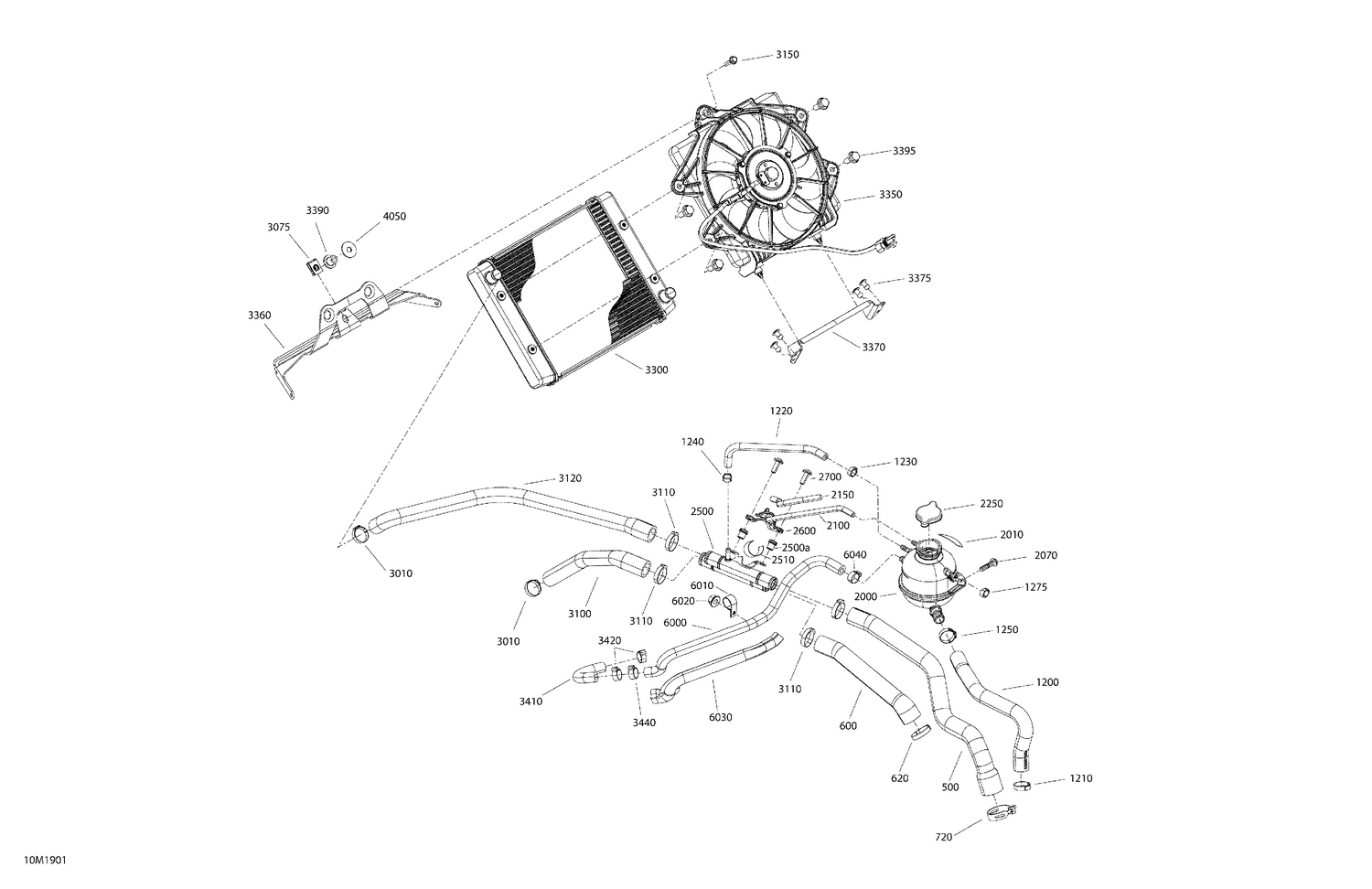

01- Cooling - 900 ACE - With Air Radiator Kit
Parts (36)
| Ref | Part Number | Description |
|---|---|---|
| 500 | 509001080 | Hose Radiator In |
| 600 | 509001013 | Engine Outlet Hose |
| 620 | 509000045 | Oetiker Gear Clamp 36.1MM |
| 720 | 293650264 | Norma Spring Clamp |
| 1200 | 509001083 | Coolant Tank Hose |
| 1210 | 293650099 | Crimp Clamp |
| 1220 | 509001035 | Hose |
| 1230 | 293650046 | Oetiker Clamp |
| 1240 | 293650046 | Oetiker Clamp |
| 1250 | 509001041 | Oetiker Clamp |
| 1275 | 293650046 | Oetiker Clamp |
| 2000 | 509001033 | Cooling Tank |
| 2010 | 516005904 | Warning Decal |
| 2070 | 241152060 | Hex. Flange Screw K50 X 20 |
| 2100 | 219704414 | Was 415110000 Polyurethane Hose 5.2 mm |
| 2150 | 504153074 | Tube Protector This part replaces 504152900. |
| 2250 | 509000180 | Radiator Pressure Cap |
| 2500a | 293450268 | Insert M5 X 0.8 |
| 2510 | 512061214 | Protector |
| 2600 | 509001049 | Clamp |
| 2700 | 250000742 | Torx Screw M5 X 14 |
| 3010 | 293650099 | Crimp Clamp |
| 3075 | 250100208 | Panel Nut M6 X 1.0 |
| 3100 | 509001350 | Hose Radiator In This part replaces 509001085. |
| 3110 | 293650141 | Oetiker Clamp |
| 3120 | 509001084 | Hose Radiator Out |
| 3150 | 207562544 | Hex. Flange Screw M6 X 25 |
| 3300 | 509001057 | Front Radiator |
| 3350 | 509001114 | Fan |
| 3360 | 509001023 | Central Radiator Support |
| 3370 | 509001024 | Lower Radiator Support |
| 3375 | 390909100 | Avex Rivet |
| 3390 | 293900100 | Bushing |
| 3395 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 4050 | 250200082 | Flat Washer |
| 6500 | 414115200 | Tie-Rap 180 mm |
