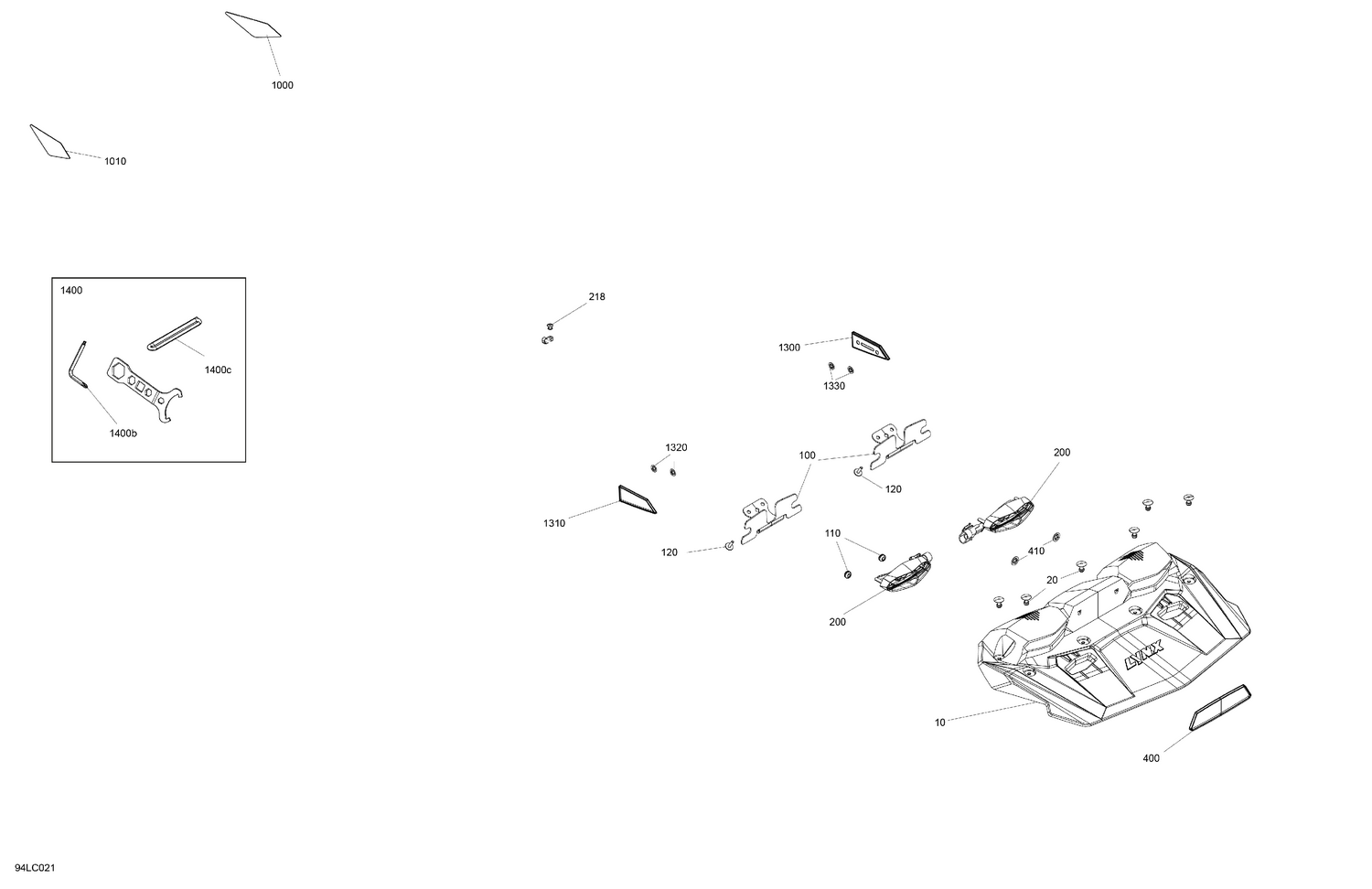

09- Miscellaneous - Utilities
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 520002704 | Snow Guard |
| 20 | 293150104 | Pop Rivet 3/16 |
| 100 | 520002906 | Taillitght Support |
| 110 | 293720101 | Grommet |
| 120 | 250000725 | Screw M4 X 16 |
| 200 | 520002636 | Tail Light |
| 218 | 390402200 | Pop Rivet 3/16 |
| 400 | 705015952 | Rear Reflector |
| 410 | 732610072 | Push Nut |
| 1000 | 520002343 | RH Front Reflector |
| 1010 | 520002344 | LH Front Reflector |
| 1300 | 705016395 | Red, RH Rear Reflector |
| 1310 | 705016396 | Red, LH Rear Reflector |
| 1320 | 732610072 | Push Nut |
| 1330 | 732610072 | Push Nut |
| 1400b | 520001815 | Key |
