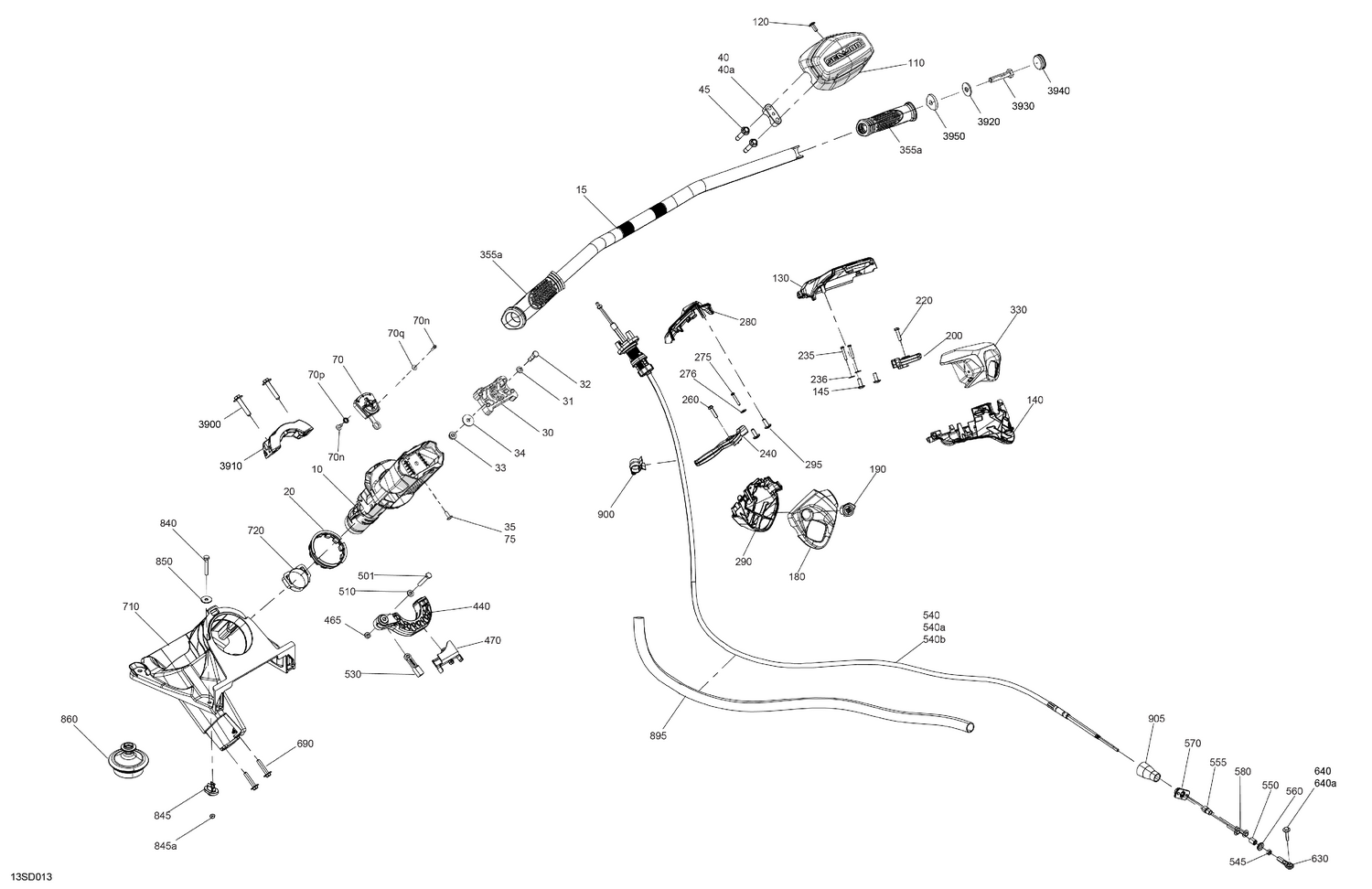

| Ref | Part Number | Description |
|---|
| 10 |
277002208 |
Steering Column |
| 15 |
277002337 |
Sterling Silver, Handlebar |
| 20 |
277001874 |
Wear Ring |
| 30 |
277002231 |
Anodized Lower Handlebar Support |
| 31 |
234080600 |
Flat Washer M8, Stainless |
| 32 |
250000526 |
Hex. Screw M8 X 30, Scotch Grip |
| 33 |
233181600 |
Hex. Flange Nut M8 |
| 34 |
250200175 |
Flat Washer 8 mm, Stainless |
| 35 |
250000922 |
Torx Truss Screw M6 X 16 |
| 40a |
506152751 |
Steering Support |
| 45 |
250000834 |
Hex. Screw Flange DIN.6921 S.Grip |
| 70n |
250000384 |
Torx Screw M6 X 14 |
| 70p |
250200114 |
Sealing Washer |
| 70q |
234042600 |
Flat Washer 4 mm, Stainless |
| 75 |
250000922 |
Torx Truss Screw M6 X 16 |
| 110 |
277002330 |
Deep Black / Lava Grey, Steering Pad |
| 120 |
250000922 |
Torx Truss Screw M6 X 16 |
| 130 |
277002040 |
RH Upper Housing |
| 140 |
277002036 |
RH Lower Housing |
| 145 |
250000922 |
Torx Truss Screw M6 X 16 |
| 180 |
277002314 |
LH Cover |
| 190 |
277002327 |
Red Button Switch |
| 200 |
277002138 |
Hand Lever Accelerator |
| 220 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 235 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 236 |
234042600 |
Flat Washer 4 mm, Stainless |
| 240 |
277001945 |
Reverse Handle |
| 260 |
250001087 |
Flange Screw Plastite #10, 14 X 7/8" |
| 275 |
241142560 |
Hex. Flange Screw K40 X 25 |
| 276 |
234042600 |
Flat Washer 4 mm, Stainless |
| 280 |
277002041 |
LH Upper Housing |
| 290 |
277002035 |
LH Lower Housing |
| 295 |
250000922 |
Torx Truss Screw M6 X 16 |
| 330 |
277002315 |
RH Cover |
| 355a |
277002286 |
Handlebar Grip |
| 440 |
277002319 |
Steering Arm |
| 465 |
233261200 |
Nut Flange Elastic M6 |
| 470 |
277001654 |
Spacer |
| 501 |
207064060 |
Hex. Screw M6 X 40 |
| 510 |
234061600 |
Stainless Flat Washer M6 |
| 530 |
277001180 |
Ball Joint |
| 540a |
211100056 |
Hex. Nut 1/4"-28 |
| 540b |
277001582 |
Wiper Rod |
| 545 |
211100056 |
Hex. Nut 1/4"-28 |
| 550 |
277001582 |
Wiper Rod |
| 555 |
277001583 |
End Piece |
| 560 |
293830063 |
Rubber Washer |
| 570 |
277001856 |
Ring Halves |
| 580 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 630 |
277000775 |
Ball Joint |
| 640a |
250000969 |
Hex Screw SEMS M6X35, SS |
| 690 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 710 |
277002209 |
Steering Column Support |
| 720 |
277002318 |
Wear Ring |
| 840 |
207164060 |
Hex. Screw M6 X 40 |
| 845a |
232561200 |
Brass Elastic Stop Nut M6 |
| 850 |
250200022 |
Flat Washer M6.6 X 22 |
| 860 |
293720116 |
Cable Boot |
| 895 |
276000520 |
Corrugated Sheath 22MM - 1250MM |
| 900 |
275500527 |
Cable Retainer |
| 905 |
277002150 |
Rope Guide |
| 3900 |
250000399 |
Hexagonal Cap Screw M6 X35 |
| 3910 |
277002085 |
C Clamp |
| 3920 |
234062600 |
Flat Washer M6, Stainless |
| 3930 |
250000002 |
Hex. Screw M6 X 30, Scotch Grip |
| 3940 |
277000203 |
Black, Cap |
