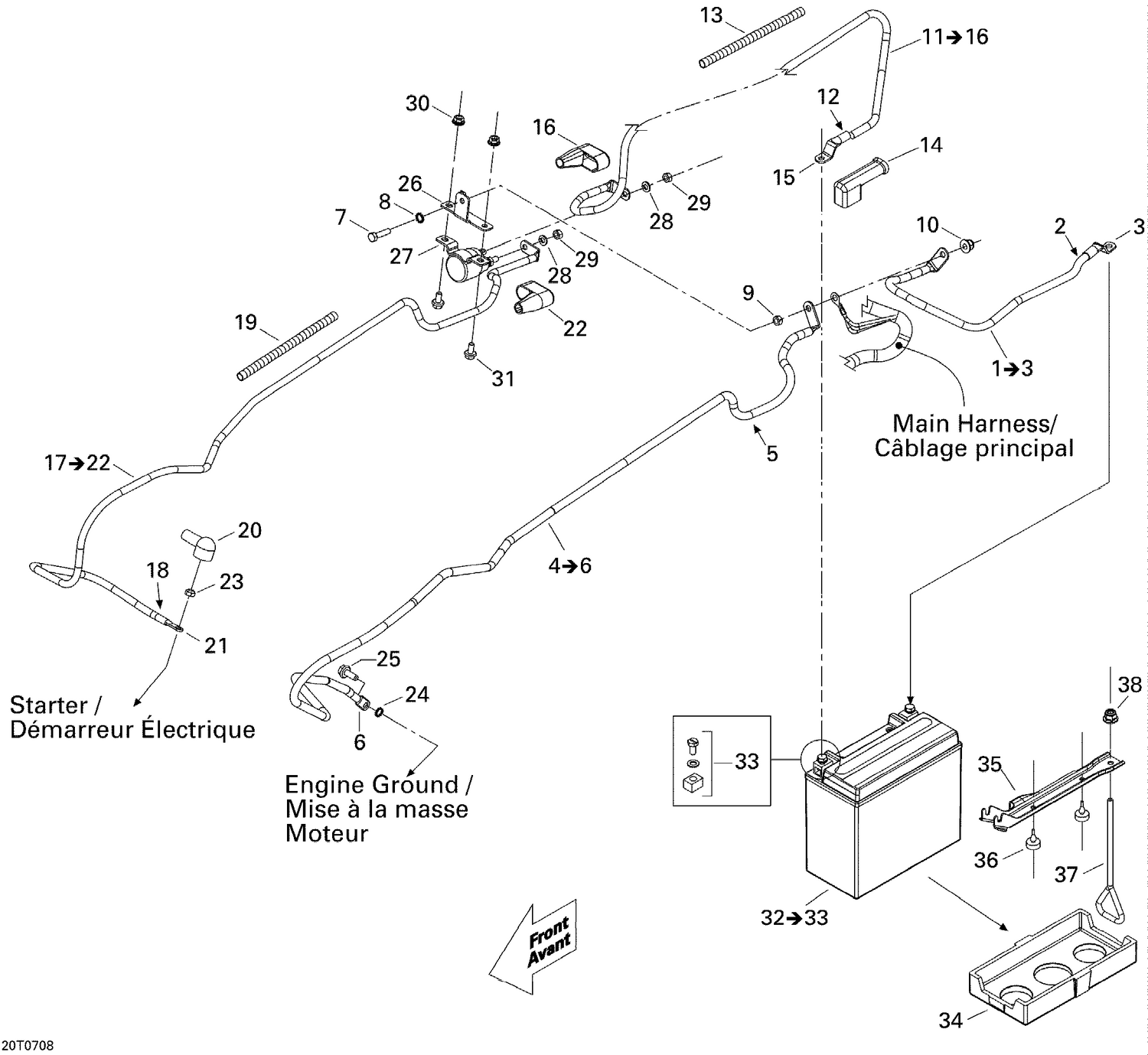

10- Electrical System
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 3 | 710000518 | Open Barrel |
| 5 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 6 | 710000530 | Open Barrel |
| 7 | 207162544 | Hex. Screw M6 X 25 |
| 8 | 234461608 | External Serrated Lock Washer 6 mm |
| 9 | 232061414 | Hex. Nut M6 |
| 10 | 233061414 | Hex. Flange Nut M6 |
| 12 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 13 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 14 | 710001829 | Protector Cap This part replaces 710000516. |
| 15 | 710000518 | Open Barrel |
| 16 | 710001817 | Protector Cap This part replaces 710000902. |
| 18 | 219704447 | Was 710000483 Heat Shrink Tubing |
| 19 | 710000497 | PROTECTOR TUBE, 9 MM - Call your local BRP dealership |
| 20 | 710000526 | Protector Cap |
| 21 | 710000530 | Open Barrel |
| 22 | 710001817 | Protector Cap This part replaces 710000902. |
| 23 | 232561414 | Elastic Stop Nut M6 |
| 24 | 234461608 | External Serrated Lock Washer 6 mm |
| 25 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 26 | 710001260 | SOLENOID SUPPORT - Call your local BRP dealership This part replaces 710001092. |
| 27 | 515176011 | Starter Relay |
| 28 | 234161601 | Lock Washer Helical M6 |
| 29 | 232061600 | Hex. Nut M6 |
| 30 | 233061414 | Hex. Flange Nut M6 |
| 31 | 207661244 | Hex. Flange Screw M6 X 12 |
| 33 | 250000282 | Battery Bolt Kit This part replaces 295500849. |
| 34 | 710000279 | INSULATOR PAD - Call your local BRP dealership |
| 35 | 710001019 | FIXATION PLATE - Call your local BRP dealership |
| 36 | 708000759 | Rubber Stopper This part replaces 708000125. |
| 37 | 710001107 | Hook |
