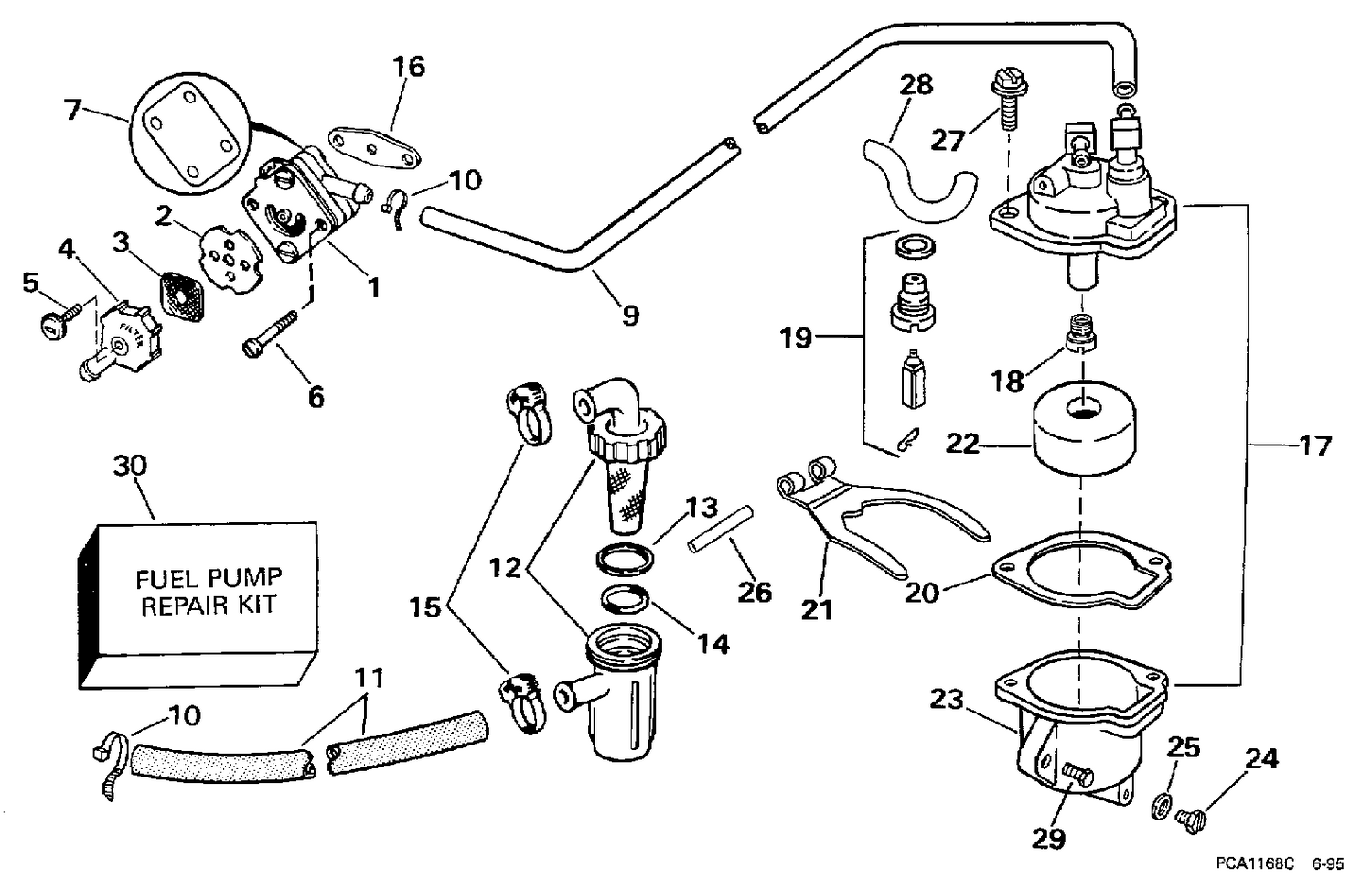

| Ref | Part Number | Description |
|---|
| 1 |
0388833 |
FUEL PUMP ASSY. |
| 6 |
0330184 |
VIS, montage pompe |
| 9 |
HOSE, |
Pump to chamber, 25 in. (635mm) |
| 10 |
0320107 |
ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 |
HOSE, |
Connector to filter, 9 in. (230mm) |
| 12 |
0397715 |
FILTER, Fuel |
| 16 |
0303615 |
GASKET |
| 17 |
0445301 |
CHAMBER ASSY., Float |
| 20 |
0447005 |
GASKET |
| 21 |
0447006 |
HINGE |
| 22 |
0447007 |
FLOAT |
| 23 |
0447008 |
FLOAT CHAMBER |
| 24 |
0447009 |
SCREW, Ground |
| 25 |
0447010 |
SEAL |
| 26 |
0447011 |
PIN |
| 27 |
0115751 |
VIS, bobine de charge |
| 28 |
HOSE, |
Float chamber to carb., 6 3/4 in. (172 mm) |
| 29 |
0333674 |
SCREW, Anode |
