| Ref | Part Number | Description |
|---|
| 3 |
0338778 |
RETAINING RING |
| 17 |
0305123 |
O RING |
| 26 |
0434467 |
NEEDLE BEARING ASSY. |
| 55 |
5000615 |
ARBRE D'ENTRAÎNEMENT, supérieur This part replaces 0436234. |
| 55 |
5000624 |
DRIVESHAFT Assembly, Upper This part replaces 0436235. |
| 60 |
0338742 |
COMPENSATEUR DE DÉRIVE |
| 65 |
0313715 |
SCREW, Cap, hex hd, 7/16-14 x 1 |
| 70 |
0331998 |
SCREW, Gearcase to housing |
| 72 |
0331999 |
SCREW, Gearcase housing |
| 73 |
0331353 |
Seal, Impeller Housing Plate. |
| 79 |
0335509 |
SHIFT ROD |
| 79 |
0335510 |
SHIFT ROD |
| 80 |
0330263 |
SCREW, Mounting, 3/8 in. X 3.50 in. |
| 82 |
0435990 |
IMPELLER HOUSING |
| 83 |
0331188 |
O-Ring |
| 84 |
0391201 |
PROP, 14-1/2 x 19 |
| 87 |
0435526 |
CHROME CUP & PLATE KIT This part replaces 0395059. |
| 88 |
5006373 |
GEARCASE SEAL KIT This part replaces 0434516. |
| 89 |
5001594 |
WATER PUMP REPAIR KIT This part replaces 0434421. |

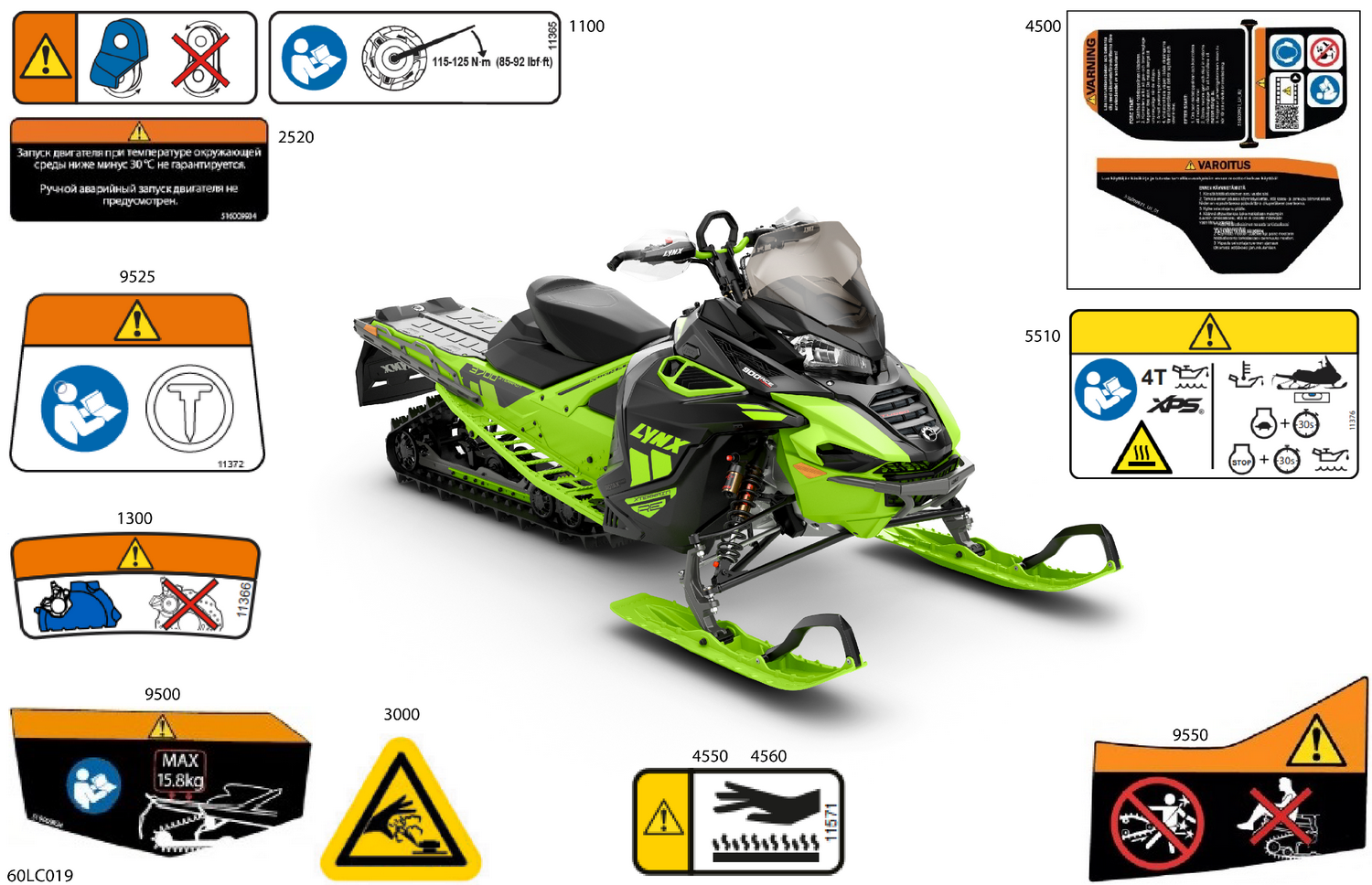

| 1100 |
516011365 |
Clutch Instruction Label |
| 1300 |
516011366 |
Brake Guard Warning Label |
| 2520 |
516009934 |
Warning Decal |
| 3000 |
516009935 |
Warning Decal, Hot liquid |
| 4500 |
516009921 |
Decal - Label En/Fi/Swe |
| 4550 |
516011571 |
Caution Hot Label |
| 4560 |
516011571 |
Caution Hot Label |
| 5510 |
516011376 |
Oil Information Label |
| 9500 |
516009924 |
Safety Label |
| 9525 |
516011372 |
Rear Central Warning Label |
| 0435478 |
5005401 |
GEARCASE Assy, Complete - (Primed) This part replaces 0435478. |
