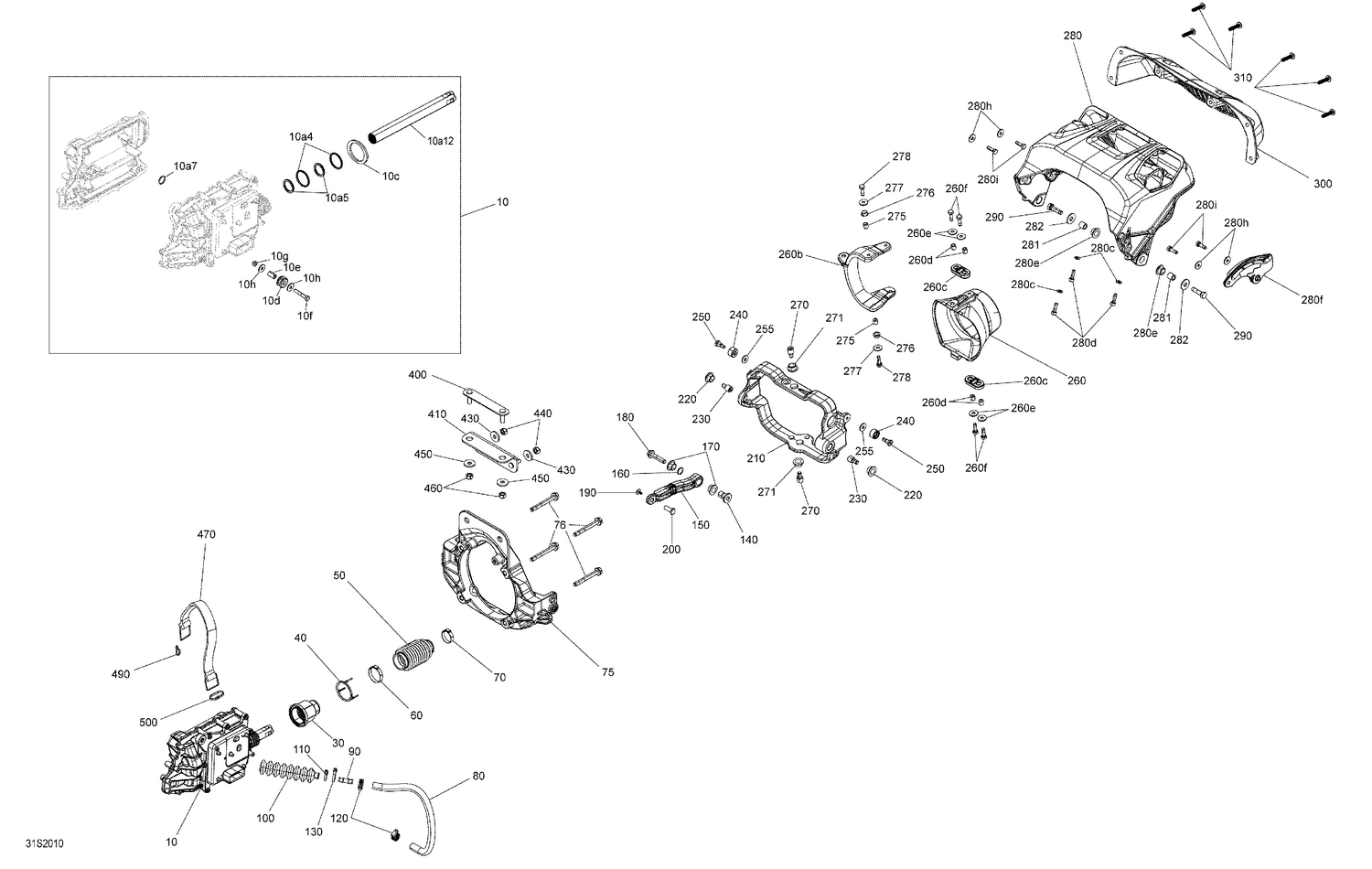

| Ref | Part Number | Description |
|---|
| 10a12 |
278003027 |
Output Shaft |
| 10a4 |
279000108 |
O-Ring |
| 10a5 |
293300107 |
O-Ring |
| 10a7 |
293300187 |
O-Ring |
| 10c |
268000208 |
Gasket |
| 10d |
293720104 |
Grommet |
| 10e |
271001020 |
Spacer |
| 10f |
207063560 |
Hex. Screw M6 X 35 |
| 10g |
232561200 |
Brass Elastic Stop Nut M6 |
| 10h |
234062600 |
Flat Washer M6, Stainless |
| 30 |
268000308 |
IBR Nut |
| 40 |
277001977 |
Rubber Gasket |
| 50 |
268000186 |
Boot |
| 60 |
509000529 |
Oetiker Gear Clamp, 36.5-706R |
| 70 |
293650099 |
Crimp Clamp |
| 75 |
268000266 |
Bracket |
| 76 |
250000835 |
Screw-Hex.Flange DIN.6921 S.Grip |
| 80 |
219704420 |
Was 509000407 Hose 8 mm |
| 90 |
293710157 |
Fitting-Straig |
| 100 |
268000211 |
Inner Boot |
| 110 |
293750002 |
Tie Wrap 142 mm |
| 120 |
293650171 |
Tridon Gear Clamp |
| 130 |
293750002 |
Tie Wrap 142 mm |
| 140 |
268000313 |
Bushing Shouldered |
| 150 |
268000256 |
Linkage Arm |
| 160 |
293300187 |
O-Ring |
| 170 |
293900007 |
Venturi Bushing |
| 180 |
250000963 |
Hex. Flange Screw Din.6921 S.Grip |
| 190 |
250000565 |
Hexalob Screw M4 X 10 |
| 200 |
268000309 |
Shoulder Pin |
| 210 |
268000247 |
Trimming Ring |
| 220 |
293900007 |
Venturi Bushing |
| 230 |
250000837 |
Screw Socket S.Grip |
| 240 |
295501160 |
Roller Bushing Kit |
| 250 |
250000775 |
Screw-Socket Shoulder M8X8 |
| 255 |
234062600 |
Flat Washer M6, Stainless |
| 260b |
268000149 |
Lever Nozzle Steering |
| 260c |
268000058 |
Direction Lever Arm |
| 260d |
268000060 |
Spacer |
| 260e |
234062600 |
Flat Washer M6, Stainless |
| 260f |
250000891 |
Scotch Grip Hexagonal Screw M6 X 20 |
| 270 |
250000837 |
Screw Socket S.Grip |
| 271 |
293900007 |
Venturi Bushing |
| 275 |
268000060 |
Spacer |
| 276 |
268000059 |
Bushing |
| 277 |
234062600 |
Flat Washer M6, Stainless |
| 278 |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 280c |
234061600 |
Stainless Flat Washer M6 |
| 280d |
205562060 |
Socket Head Screw M6 X 20, Scotch Grip |
| 280e |
293900007 |
Venturi Bushing |
| 280f |
295501168 |
Trimp Ramp |
| 280h |
234062600 |
Flat Washer M6, Stainless |
| 280i |
207362060 |
Hex. Screw M6 X 20, Scotch Grip |
| 281 |
271001039 |
Spacer |
| 282 |
234082600 |
Flat Washer 8 mm, Stainless |
| 290 |
250000526 |
Hex. Screw M8 X 30, Scotch Grip |
| 300 |
268000162 |
Guard |
| 310 |
250001007 |
Screw Torx M6.81 X 30 |
| 400 |
268000271 |
Ass'y Bracket |
| 410 |
268000304 |
Reverse Bracket |
| 430 |
279000336 |
Flat Washer |
| 440 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 450 |
279000336 |
Flat Washer |
| 460 |
232581200 |
Hex. Elastic Nut M8 Brass |
| 470 |
293850095 |
Fuel Tank Strap |
| 490 |
293750001 |
Tie Wrap 94 mm |
