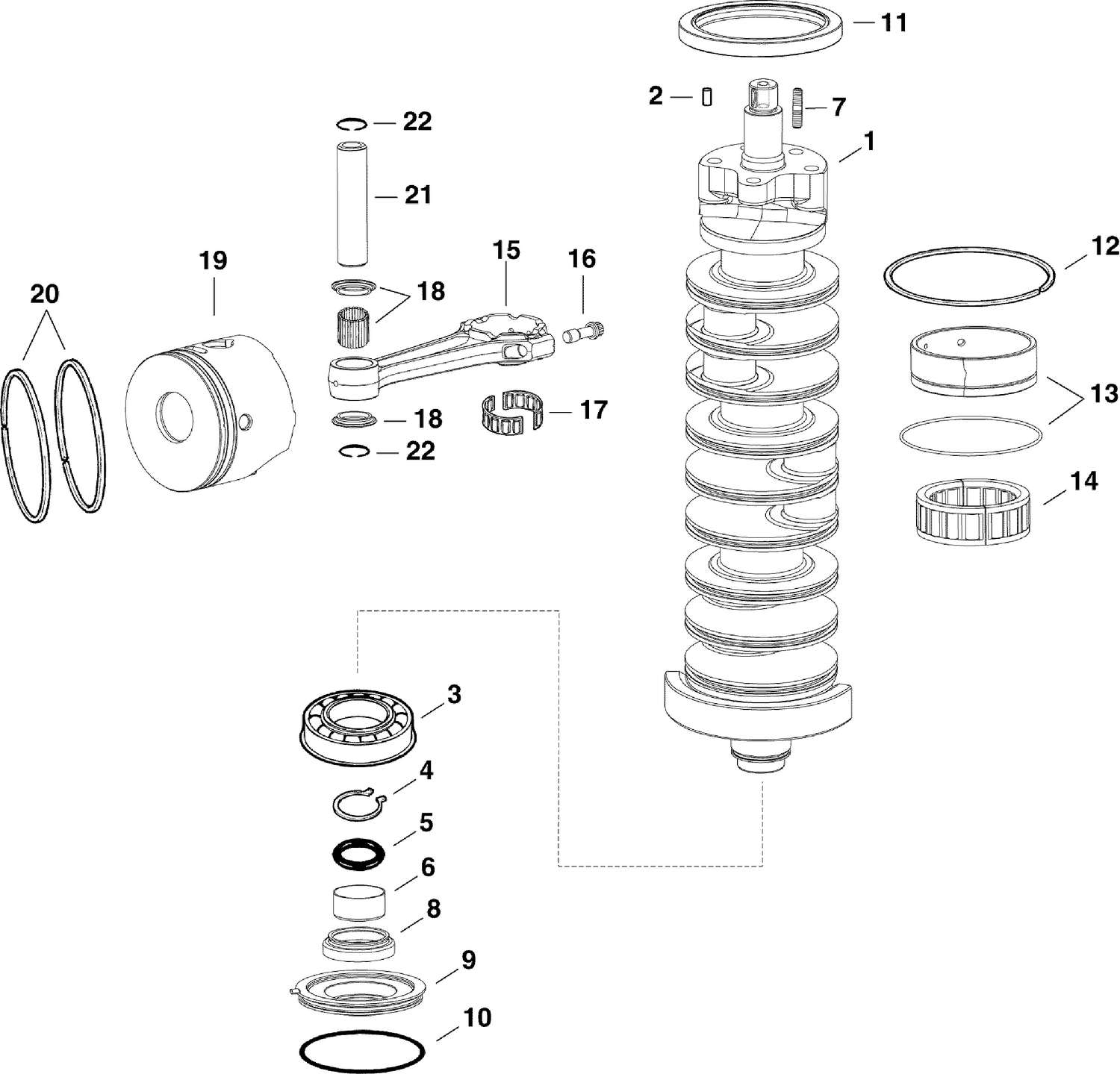

05-2_CRANKSHAFT & PISTONS
Parts (11)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007729 | CRANKSHAFT Assembly |
| 4 | 0326047 | Retaining Ring |
| 6 | 0337030 | Sleeve, Crankshaft |
| 9 | 0340559 | CORPS, joint, palier inférieur |
| 12 | 0319244 | JOINT ANNULAIRE |
| 13 | 0352960 | BEARING RACE, Center main |
| 14 | 5007190 | BEARING Assembly, Center main |
| 15 | 5006383 | CONNECTING ROD |
| 17 | 0387787 | BEARING Assembly, Connecting rod |
| 18 | 0395627 | BEARING & RETAINER |
| 21 | 0327861 | Wrist Pin |
